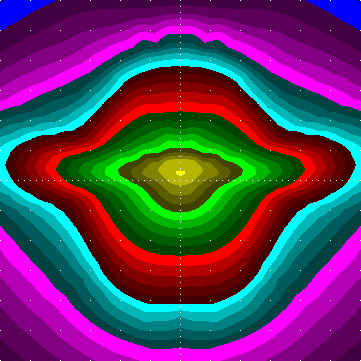

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] FU1-OP4-1B#
# [LUMCAT] Fusion
# [DATE] 13/09/2012/14/12/2009/
# down given: 100%
# out given: 69.7%
# tilt: 0.0
# [LAMP] 1 MT 150 15000 3000 G12
# Bulbs: 1, 15000 lm each
# Source file: FUSION_FU1-OP4-1B-_1_MT_150_15000_3000_G12.ldt
# Luminaire flux = 697 raw, for the given bulb(s) it would be 10458 lm,
# 69.7 % of the bulb flux
# between 75 and 90: 2.7 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 75.2 cd / 1000 lm , 0.5 % of the luminaire flux
# 90deg and above: max 1.1 cd / 1000 lm , 0.1?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 4?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 19?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 411 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 417 cd / 1000 lm,
# maximum spec. lum. intensity 417 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160
2.5 159 160 162 162 163 165 165 167 167 169 168 170 170 171 171 173 171 172 173 172 171 173 171 171 170 170 168 169 167 167 165 165 163 162 162 160 159 158 158 155 156 155 155 154 153 153 152 152 151 150 151 150 150 150 150 150 150 150 151 150 151 152 152 153 153 154 155 155 156 155 158 158
5.0 158 162 163 165 167 170 173 174 176 178 179 182 182 184 183 186 185 186 188 186 185 186 183 184 182 182 179 178 176 174 173 170 167 165 163 162 158 157 156 153 153 151 151 148 148 147 146 145 146 144 143 144 143 143 144 143 143 144 143 144 146 145 146 147 148 148 151 151 153 153 156 157
7.5 159 163 165 167 171 175 180 182 183 188 188 193 195 197 197 199 199 199 201 199 199 199 197 197 195 193 188 188 183 182 180 175 171 167 165 163 159 157 154 150 149 147 146 143 142 140 140 139 139 137 137 138 137 137 138 137 137 138 137 137 139 139 140 140 142 143 146 147 149 150 154 157
10.0 159 162 168 171 176 180 186 190 193 198 199 204 207 209 209 211 211 211 214 211 211 211 209 209 207 204 199 198 193 190 186 180 176 171 168 162 159 157 153 149 147 144 143 140 139 136 136 134 133 132 131 132 131 131 133 131 131 132 131 132 133 134 136 136 139 140 143 144 147 149 153 157
12.5 162 165 172 175 182 186 194 200 204 206 210 213 218 218 219 221 220 220 223 220 220 221 219 218 218 213 210 206 204 200 194 186 182 175 172 165 162 157 154 148 146 143 140 138 135 133 133 131 130 128 126 128 127 127 128 127 127 128 126 128 130 131 133 133 135 138 140 143 146 148 154 157
15.0 163 168 175 180 187 194 201 206 212 216 219 220 224 226 226 227 226 225 228 225 226 227 226 226 224 220 219 216 212 206 201 194 187 180 175 168 163 158 154 147 145 141 138 136 133 131 130 129 127 125 123 125 123 123 124 123 123 125 123 125 127 129 130 131 133 136 138 141 145 147 154 158
17.5 164 171 178 184 192 200 209 215 221 222 227 232 229 232 232 232 231 230 232 230 231 232 232 232 229 232 227 222 221 215 209 200 192 184 178 171 164 160 154 147 144 141 137 135 131 129 127 127 125 123 121 122 120 120 121 120 120 122 121 123 125 127 127 129 131 135 137 141 144 147 154 160
20.0 167 175 183 191 199 208 217 224 229 232 234 240 237 241 240 241 239 238 240 238 239 241 240 241 237 240 234 232 229 224 217 208 199 191 183 175 167 162 155 148 144 140 136 134 129 128 126 124 123 120 119 118 118 118 119 118 118 118 119 120 123 124 126 128 129 134 136 140 144 148 155 162
22.5 168 178 188 198 208 218 227 235 240 242 245 250 251 253 253 253 253 248 252 248 253 253 253 253 251 250 245 242 240 235 227 218 208 198 188 178 168 160 154 147 143 140 135 133 128 126 124 122 121 119 117 116 116 115 117 115 116 116 117 119 121 122 124 126 128 133 135 140 143 147 154 160
25.0 164 177 191 203 215 227 237 247 253 256 258 263 266 267 267 268 265 261 264 261 265 268 267 267 266 263 258 256 253 247 237 227 215 203 191 177 164 156 149 141 139 136 133 131 126 125 123 121 118 117 115 116 114 113 115 113 114 116 115 117 118 121 123 125 126 131 133 136 139 141 149 156
27.5 160 174 192 207 225 240 254 261 269 273 277 280 282 280 282 279 277 271 271 271 277 279 282 280 282 280 277 273 269 261 254 240 225 207 192 174 160 151 144 137 134 130 129 128 122 122 120 120 117 115 114 113 112 111 113 111 112 113 114 115 117 120 120 122 122 128 129 130 134 137 144 151
30.0 159 171 192 211 233 256 275 284 287 293 295 294 296 290 287 284 283 275 272 275 283 284 287 290 296 294 295 293 287 284 275 256 233 211 192 171 159 148 142 134 130 126 124 122 120 119 118 118 115 114 112 111 110 109 111 109 110 111 112 114 115 118 118 119 120 122 124 126 130 134 142 148
32.5 160 174 193 214 241 270 290 302 305 311 306 302 301 294 282 277 276 267 263 267 276 277 282 294 301 302 306 311 305 302 290 270 241 214 193 174 160 149 143 134 128 124 121 118 116 116 115 116 113 112 110 110 108 107 108 107 108 110 110 112 113 116 115 116 116 118 121 124 128 134 143 149
35.0 164 179 199 219 245 274 296 312 310 316 311 304 296 284 264 258 254 249 242 249 254 258 264 284 296 304 311 316 310 312 296 274 245 219 199 179 164 153 145 135 127 123 119 116 115 113 113 114 112 110 109 108 107 105 106 105 107 108 109 110 112 114 113 113 115 116 119 123 127 135 145 153
37.5 170 186 207 226 248 270 287 296 295 302 298 290 280 257 236 226 220 218 209 218 220 226 236 257 280 290 298 302 295 296 287 270 248 226 207 186 170 158 146 134 126 120 117 114 113 111 110 111 110 108 107 107 105 103 105 103 105 107 107 108 110 111 110 111 113 114 117 120 126 134 146 158
40.0 177 197 219 239 256 272 276 273 266 266 263 252 240 218 197 184 180 181 174 181 180 184 197 218 240 252 263 266 266 273 276 272 256 239 219 197 177 162 147 133 124 118 115 113 110 110 108 109 108 106 106 105 103 102 103 102 103 105 106 106 108 109 108 110 110 113 115 118 124 133 147 162
42.5 186 213 238 258 272 284 275 260 236 221 218 207 191 175 160 148 142 142 141 142 142 148 160 175 191 207 218 221 236 260 275 284 272 258 238 213 186 164 147 132 123 117 114 112 109 108 106 107 106 105 105 103 102 99.9 101 99.9 102 103 105 105 106 107 106 108 109 112 114 117 123 132 147 164
45.0 196 233 263 283 292 295 284 252 212 182 174 160 150 140 130 123 117 115 116 115 117 123 130 140 150 160 174 182 212 252 284 295 292 283 263 233 196 167 145 130 122 116 113 110 107 106 105 105 104 103 103 101 100 98.4 100 98.4 100 101 103 103 104 105 105 106 107 110 113 116 122 130 145 167
47.5 205 255 298 311 309 305 285 252 198 157 140 127 122 117 114 110 106 103 104 103 106 110 114 117 122 127 140 157 198 252 285 305 309 311 298 255 205 167 143 128 121 114 111 108 105 105 102 102 101 101 99.8 99.2 97.9 97.0 99.0 97.0 97.9 99.2 99.8 101 101 102 102 105 105 108 111 114 121 128 143 167
50.0 214 276 327 333 319 301 282 245 186 144 120 110 106 106 107 105 99.3 94.9 96.3 94.9 99.3 105 107 106 106 110 120 144 186 245 282 301 319 333 327 276 214 167 143 127 119 113 109 106 103 102 100 99.5 98.4 98.2 97.3 96.7 96.1 95.0 97.2 95.0 96.1 96.7 97.3 98.2 98.4 99.5 100 102 103 106 109 113 119 127 143 167
52.5 224 296 353 349 315 281 267 231 173 133 109 101 97.6 99.1 103 103 95.5 88.4 88.8 88.4 95.5 103 103 99.1 97.6 101 109 133 173 231 267 281 315 349 353 296 224 172 142 125 116 110 106 104 100 99.9 98.4 97.2 95.9 95.9 95.0 93.8 93.3 92.2 94.7 92.2 93.3 93.8 95.0 95.9 95.9 97.2 98.4 99.9 100 104 106 110 116 125 142 172
55.0 236 319 372 360 305 255 236 204 157 123 101 94.3 91.4 93.2 98.4 99.3 90.7 80.1 79.8 80.1 90.7 99.3 98.4 93.2 91.4 94.3 101 123 157 204 236 255 305 360 372 319 236 177 144 124 114 107 103 101 97.7 96.9 96.1 94.4 93.7 92.9 91.8 90.8 90.6 89.4 92.3 89.4 90.6 90.8 91.8 92.9 93.7 94.4 96.1 96.9 97.7 101 103 107 114 124 144 177
57.5 247 338 384 356 286 225 195 168 134 111 95.7 88.5 85.3 87.3 90.2 90.6 82.9 71.5 69.9 71.5 82.9 90.6 90.2 87.3 85.3 88.5 95.7 111 134 168 195 225 286 356 384 338 247 180 143 121 112 105 98.7 97.2 94.2 93.6 92.7 91.6 90.9 90.0 88.5 87.7 87.1 86.3 88.9 86.3 87.1 87.7 88.5 90.0 90.9 91.6 92.7 93.6 94.2 97.2 98.7 105 112 121 143 180
60.0 252 342 386 353 279 205 163 136 114 99.6 89.3 83.1 80.3 81.0 81.4 79.0 72.7 63.3 62.7 63.3 72.7 79.0 81.4 81.0 80.3 83.1 89.3 99.6 114 136 163 205 279 353 386 342 252 178 138 118 109 101 95.8 93.6 90.8 89.7 89.2 88.3 88.0 86.7 85.4 84.2 83.7 82.4 84.1 82.4 83.7 84.2 85.4 86.7 88.0 88.3 89.2 89.7 90.8 93.6 95.8 101 109 118 138 178
62.5 258 356 400 351 278 189 140 114 100 90.7 83.0 78.1 76.3 75.4 71.8 67.7 63.7 57.8 58.1 57.8 63.7 67.7 71.8 75.4 76.3 78.1 83.0 90.7 100 114 140 189 278 351 400 356 258 178 135 113 103 95.9 90.3 89.3 86.6 85.5 85.0 84.0 83.9 82.7 81.8 79.9 79.0 77.8 79.4 77.8 79.0 79.9 81.8 82.7 83.9 84.0 85.0 85.5 86.6 89.3 90.3 95.9 103 113 135 178
65.0 271 386 411 343 263 171 122 102 89.9 82.5 76.6 72.9 70.6 69.4 62.9 58.0 55.4 52.6 54.2 52.6 55.4 58.0 62.9 69.4 70.6 72.9 76.6 82.5 89.9 102 122 171 263 343 411 386 271 178 130 107 96.7 90.0 85.3 83.4 81.3 80.6 80.4 79.8 79.2 78.2 76.8 74.5 73.4 71.9 73.4 71.9 73.4 74.5 76.8 78.2 79.2 79.8 80.4 80.6 81.3 83.4 85.3 90.0 96.7 107 130 178
67.5 283 405 401 297 212 139 99.7 86.0 78.3 73.6 69.5 67.1 65.0 62.3 54.6 50.2 49.1 47.7 48.6 47.7 49.1 50.2 54.6 62.3 65.0 67.1 69.5 73.6 78.3 86.0 99.7 139 212 297 401 405 283 176 123 98.8 89.1 83.3 79.3 77.9 76.4 75.0 75.3 74.3 74.0 72.9 70.7 69.0 66.3 64.7 66.2 64.7 66.3 69.0 70.7 72.9 74.0 74.3 75.3 75.0 76.4 77.9 79.3 83.3 89.1 98.8 123 176
70.0 290 417 392 247 148 95.1 76.1 69.2 63.7 61.6 60.3 58.6 57.8 54.1 47.8 43.4 43.1 41.8 42.4 41.8 43.1 43.4 47.8 54.1 57.8 58.6 60.3 61.6 63.7 69.2 76.1 95.1 148 247 392 417 290 161 105 81.9 74.4 68.6 66.9 68.0 67.7 67.7 68.6 67.9 67.7 66.5 63.9 61.8 59.2 57.1 57.6 57.1 59.2 61.8 63.9 66.5 67.7 67.9 68.6 67.7 67.7 68.0 66.9 68.6 74.4 81.9 105 161
72.5 270 393 347 184 88.5 51.9 47.5 41.4 41.1 40.1 43.2 43.7 45.0 44.7 39.1 37.0 37.1 34.2 34.7 34.2 37.1 37.0 39.1 44.7 45.0 43.7 43.2 40.1 41.1 41.4 47.5 51.9 88.5 184 347 393 270 124 68.3 52.8 49.9 46.2 45.7 48.8 49.7 51.8 54.8 56.6 58.2 57.5 55.5 53.3 51.2 48.9 49.1 48.9 51.2 53.3 55.5 57.5 58.2 56.6 54.8 51.8 49.7 48.8 45.7 46.2 49.9 52.8 68.3 124
75.0 214 327 272 125 49.6 24.6 18.2 15.5 12.6 12.5 12.8 14.8 19.6 21.6 22.0 22.0 22.8 21.4 22.0 21.4 22.8 22.0 22.0 21.6 19.6 14.8 12.8 12.5 12.6 15.5 18.2 24.6 49.6 125 272 327 214 92.7 42.0 27.5 23.3 20.7 19.9 20.4 22.5 23.9 30.8 35.8 40.5 41.9 43.0 40.3 39.5 35.2 36.1 35.2 39.5 40.3 43.0 41.9 40.5 35.8 30.8 23.9 22.5 20.4 19.9 20.7 23.3 27.5 42.0 92.7
77.5 129 206 166 77.1 29.5 14.0 9.5 6.7 5.1 4.5 3.9 3.9 3.9 4.1 4.1 5.3 3.8 5.6 5.7 5.6 3.8 5.3 4.1 4.1 3.9 3.9 3.9 4.5 5.1 6.7 9.5 14.0 29.5 77.1 166 206 129 59.5 26.4 16.8 13.2 10.5 9.5 8.8 9.3 8.9 11.1 12.6 15.4 17.6 18.3 20.8 17.5 15.9 12.8 15.9 17.5 20.8 18.3 17.6 15.4 12.6 11.1 8.9 9.3 8.8 9.5 10.5 13.2 16.8 26.4 59.5
80.0 55.4 75.2 64.1 31.4 14.5 7.5 5.4 3.8 3.0 2.4 2.0 1.9 1.7 1.5 1.3 1.2 1.1 1.1 1.1 1.1 1.1 1.2 1.3 1.5 1.7 1.9 2.0 2.4 3.0 3.8 5.4 7.5 14.5 31.4 64.1 75.2 55.4 26.1 13.1 9.2 7.3 6.4 5.6 5.1 5.0 4.6 4.9 5.1 5.4 5.6 5.8 5.8 6.2 5.7 5.1 5.7 6.2 5.8 5.8 5.6 5.4 5.1 4.9 4.6 5.0 5.1 5.6 6.4 7.3 9.2 13.1 26.1
82.5 10.5 14.6 12.5 7.5 4.0 2.9 2.2 1.9 1.6 1.4 1.3 1.2 1.1 1.0 0.8 0.7 0.7 0.7 0.6 0.7 0.7 0.7 0.8 1.0 1.1 1.2 1.3 1.4 1.6 1.9 2.2 2.9 4.0 7.5 12.5 14.6 10.5 7.4 4.3 4.0 3.6 3.6 3.1 3.0 2.9 2.8 2.7 2.7 2.6 2.5 2.5 2.5 2.5 2.5 2.4 2.5 2.5 2.5 2.5 2.5 2.6 2.7 2.7 2.8 2.9 3.0 3.1 3.6 3.6 4.0 4.3 7.4
85.0 1.5 1.5 1.4 1.2 1.1 1.0 1.0 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 1.0 1.0 1.1 1.2 1.4 1.5 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.6 1.5 1.4 1.5 1.4 1.4 1.4 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.4 1.4 1.4 1.5 1.4 1.5 1.6 1.5 1.5 1.4 1.4 1.4 1.5
87.5 1.0 1.0 0.9 0.8 0.8 0.7 0.7 0.6 0.5 0.5 0.5 0.4 0.5 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.5 0.4 0.5 0.5 0.5 0.6 0.7 0.7 0.8 0.8 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.0
90.0 0.8 0.8 0.7 0.7 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.8 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.8 0.9 0.8 0.9 0.8
92.5 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.7 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.8 0.9 0.8 0.8 0.8 0.8 0.7 0.7 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.7 0.7 0.8 0.8 0.8 0.8 0.9 0.8 0.9
95.0 1.0 1.0 1.0 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 1.0 1.0 1.0 1.0 1.0 0.9 1.0 0.9 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 0.9 1.0 0.9 1.0 1.0
97.5 1.0 1.0 1.0 1.0 1.0 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.8 0.9 1.0 1.0 1.0 1.0 1.0 1.0
100.0 1.1 1.1 1.1 1.1 1.0 1.0 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.9 1.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.6 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1
