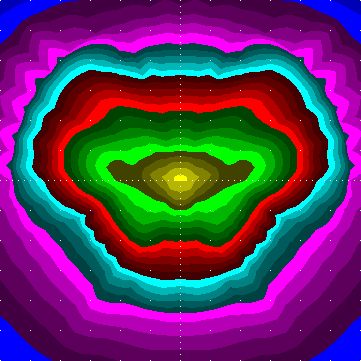

| In left plots, specific illuminances by a continuous row of luminaires spaced 5 and 6 heights are shown in their left halves (right half concerns a single luminaire). | The right plot is for a single luminaire, unrotated. | |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] 650-ELY-VMC-OP5
# [LUMCAT] Elysee
# [DATE] 22/11/2011/13/10/2010/13/10/2010 / VIARDOT
# down given: 98.96%
# out given: 69.52%
# tilt: 0
# [LAMP] 1 ST 70 6600 1950 E27
# Bulbs: 1, 6600 lm each
# Source file: Elysee_650-ELY-VMC-OP5_1_ST_70_6600_1950_E27.ldt
# Luminaire flux = 695 raw, for the given bulb(s) it would be 4589 lm,
# 69.5 % of the bulb flux
# between 75 and 90: 2.5 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 7.9 cd / 1000 lm , 1.3 % of the luminaire flux
# 90deg and above: max 1.5 cd / 1000 lm , 1.0 % of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 10 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 29 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 540 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 628 cd / 1000 lm,
# maximum spec. lum. intensity 628 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196 196
2.5 203 200 204 203 205 204 205 204 206 205 206 204 207 205 206 204 205 204 203 204 205 204 206 205 207 204 206 205 206 204 205 204 205 203 204 200 203 198 202 199 200 197 199 195 198 195 195 193 192 192 190 190 190 189 193 189 190 190 190 192 192 193 195 195 198 195 199 197 200 199 202 198
5.0 206 205 207 208 208 209 208 208 210 209 211 210 210 209 209 208 207 207 206 207 207 208 209 209 210 210 211 209 210 208 208 209 208 208 207 205 206 203 203 201 201 198 199 195 195 195 195 192 193 189 189 187 185 184 188 184 185 187 189 189 193 192 195 195 195 195 199 198 201 201 203 203
7.5 207 205 210 209 212 210 213 209 213 212 213 212 212 212 211 208 209 208 207 208 209 208 211 212 212 212 213 212 213 209 213 210 212 209 210 205 207 202 204 200 200 197 195 193 194 194 193 188 189 186 186 183 182 181 184 181 182 183 186 186 189 188 193 194 194 193 195 197 200 200 204 202
10.0 211 207 214 212 217 215 217 215 215 214 215 213 215 212 211 210 210 208 209 208 210 210 211 212 215 213 215 214 215 215 217 215 217 212 214 207 211 204 206 201 201 196 195 191 192 188 186 187 186 184 182 180 180 179 181 179 180 180 182 184 186 187 186 188 192 191 195 196 201 201 206 204
12.5 212 212 216 216 218 216 218 215 219 216 214 211 212 209 207 207 205 204 206 204 205 207 207 209 212 211 214 216 219 215 218 216 218 216 216 212 212 207 206 203 200 194 193 187 188 185 183 180 179 179 179 176 175 176 177 176 175 176 179 179 179 180 183 185 188 187 193 194 200 203 206 207
15.0 210 209 215 214 217 215 215 213 214 213 215 209 207 204 201 199 198 196 198 196 198 199 201 204 207 209 215 213 214 213 215 215 217 214 215 209 210 204 203 197 195 191 190 185 184 181 179 176 174 173 172 171 168 169 168 169 168 171 172 173 174 176 179 181 184 185 190 191 195 197 203 204
17.5 204 205 209 209 210 210 210 209 208 206 205 204 200 195 191 188 187 187 188 187 187 188 191 195 200 204 205 206 208 209 210 210 210 209 209 205 204 199 195 193 188 186 183 180 179 177 174 170 169 166 166 165 162 161 159 161 162 165 166 166 169 170 174 177 179 180 183 186 188 193 195 199
20.0 199 201 203 206 204 202 201 199 197 198 195 192 190 185 181 175 175 174 177 174 175 175 181 185 190 192 195 198 197 199 201 202 204 206 203 201 199 194 191 186 184 179 177 176 173 172 170 165 161 158 156 156 155 154 152 154 155 156 156 158 161 165 170 172 173 176 177 179 184 186 191 194
22.5 190 193 196 199 197 196 193 190 185 184 182 180 178 174 170 165 164 164 165 164 164 165 170 174 178 180 182 184 185 190 193 196 197 199 196 193 190 184 180 176 174 173 171 166 166 167 160 158 155 151 149 150 148 146 144 146 148 150 149 151 155 158 160 167 166 166 171 173 174 176 180 184
25.0 182 184 191 190 189 189 184 178 174 173 169 170 168 164 161 159 155 154 155 154 155 159 161 164 168 170 169 173 174 178 184 189 189 190 191 184 182 174 169 164 160 162 159 159 158 156 158 153 151 147 146 144 143 140 140 140 143 144 146 147 151 153 158 156 158 159 159 162 160 164 169 174
27.5 178 184 190 189 185 179 174 169 163 163 159 160 159 155 154 149 146 147 147 147 146 149 154 155 159 160 159 163 163 169 174 179 185 189 190 184 178 169 161 156 150 148 146 148 149 149 150 150 148 145 144 142 142 138 141 138 142 142 144 145 148 150 150 149 149 148 146 148 150 156 161 169
30.0 187 192 201 195 190 176 167 156 154 154 152 152 150 148 147 142 139 138 141 138 139 142 147 148 150 152 152 154 154 156 167 176 190 195 201 192 187 171 164 151 144 138 136 135 136 140 139 139 143 141 146 147 145 141 143 141 145 147 146 141 143 139 139 140 136 135 136 138 144 151 164 171
32.5 193 198 212 206 200 182 166 153 146 143 143 144 142 140 139 137 132 129 134 129 132 137 139 140 142 144 143 143 146 153 166 182 200 206 212 198 193 172 165 150 145 133 130 126 124 126 127 128 128 131 142 148 141 140 138 140 141 148 142 131 128 128 127 126 124 126 130 133 145 150 165 172
35.0 195 204 219 213 204 185 172 153 147 138 135 134 134 133 130 129 123 122 126 122 123 129 130 133 134 134 135 138 147 153 172 185 204 213 219 204 195 172 160 149 142 133 129 120 116 113 112 114 115 118 125 133 133 132 129 132 133 133 125 118 115 114 112 113 116 120 129 133 142 149 160 172
37.5 194 209 226 220 209 187 172 157 149 137 130 126 125 125 121 119 115 113 117 113 115 119 121 125 125 126 130 137 149 157 172 187 209 220 226 209 194 171 159 146 138 129 125 115 108 101 98.1 99.8 103 106 113 118 122 123 125 123 122 118 113 106 103 99.8 98.1 101 108 115 125 129 138 146 159 171
40.0 194 215 230 226 211 187 174 159 149 138 129 120 117 116 110 108 106 104 108 104 106 108 110 116 117 120 129 138 149 159 174 187 211 226 230 215 194 172 159 146 136 127 121 110 104 92.9 87.4 86.1 87.1 95.4 103 107 109 116 116 116 109 107 103 95.4 87.1 86.1 87.4 92.9 104 110 121 127 136 146 159 172
42.5 193 217 232 226 207 183 172 161 151 139 131 117 112 106 101 97.7 96.2 93.1 96.9 93.1 96.2 97.7 101 106 112 117 131 139 151 161 172 183 207 226 232 217 193 170 159 145 135 125 118 106 98.6 88.9 80.0 76.9 77.3 84.8 92.1 97.4 99.2 102 100 102 99.2 97.4 92.1 84.8 77.3 76.9 80.0 88.9 98.6 106 118 125 135 145 159 170
45.0 195 220 235 228 204 180 169 158 150 138 130 118 106 97.7 91.1 89.1 86.0 83.4 86.9 83.4 86.0 89.1 91.1 97.7 106 118 130 138 150 158 169 180 204 228 235 220 195 173 162 144 133 122 115 104 96.9 87.1 80.6 72.3 70.0 76.4 79.0 87.1 86.9 88.3 85.4 88.3 86.9 87.1 79.0 76.4 70.0 72.3 80.6 87.1 96.9 104 115 122 133 144 162 173
47.5 194 215 235 224 204 183 168 156 147 138 129 116 103 89.9 82.7 82.3 80.4 79.2 78.0 79.2 80.4 82.3 82.7 89.9 103 116 129 138 147 156 168 183 204 224 235 215 194 171 161 144 133 122 112 104 95.4 89.1 82.8 75.9 70.3 72.1 74.2 81.1 78.7 77.8 73.6 77.8 78.7 81.1 74.2 72.1 70.3 75.9 82.8 89.1 95.4 104 112 122 133 144 161 171
50.0 201 216 231 219 206 185 170 155 145 138 127 115 99.4 84.2 75.3 75.6 75.1 75.4 74.0 75.4 75.1 75.6 75.3 84.2 99.4 115 127 138 145 155 170 185 206 219 231 216 201 177 167 145 135 121 110 105 98.3 93.5 88.3 82.6 73.2 71.3 71.1 76.9 75.1 70.8 68.2 70.8 75.1 76.9 71.1 71.3 73.2 82.6 88.3 93.5 98.3 105 110 121 135 145 167 177
52.5 206 220 226 220 211 189 174 154 141 135 128 115 95.3 77.0 68.6 69.9 72.1 71.9 70.7 71.9 72.1 69.9 68.6 77.0 95.3 115 128 135 141 154 174 189 211 220 226 220 206 190 171 155 138 124 112 108 104 103 96.1 88.7 78.4 70.4 68.7 72.4 71.7 66.4 63.6 66.4 71.7 72.4 68.7 70.4 78.4 88.7 96.1 103 104 108 112 124 138 155 171 190
55.0 216 223 224 218 211 193 176 158 145 136 133 114 94.4 74.1 65.3 64.1 68.3 68.7 67.4 68.7 68.3 64.1 65.3 74.1 94.4 114 133 136 145 158 176 193 211 218 224 223 216 202 180 160 140 130 120 118 113 109 104 93.5 81.8 68.9 63.3 65.0 65.0 61.4 59.2 61.4 65.0 65.0 63.3 68.9 81.8 93.5 104 109 113 118 120 130 140 160 180 202
57.5 243 243 242 229 210 199 179 167 150 138 137 115 93.1 70.9 62.0 60.6 66.3 66.0 63.8 66.0 66.3 60.6 62.0 70.9 93.1 115 137 138 150 167 179 199 210 229 242 243 243 224 198 172 149 144 136 131 126 126 108 94.3 82.5 67.8 57.4 56.3 58.0 54.6 54.2 54.6 58.0 56.3 57.4 67.8 82.5 94.3 108 126 126 131 136 144 149 172 198 224
60.0 292 296 289 272 229 204 193 180 163 144 137 111 89.1 70.9 61.2 57.6 64.3 64.4 61.2 64.4 64.3 57.6 61.2 70.9 89.1 111 137 144 163 180 193 204 229 272 289 296 292 257 223 185 172 163 157 137 141 142 118 101 82.8 65.1 54.1 49.0 50.2 48.5 46.3 48.5 50.2 49.0 54.1 65.1 82.8 101 118 142 141 137 157 163 172 185 223 257
62.5 358 393 385 363 288 233 214 201 177 148 131 103 85.5 69.7 59.0 55.9 61.5 63.0 59.4 63.0 61.5 55.9 59.0 69.7 85.5 103 131 148 177 201 214 233 288 363 385 393 358 287 241 188 182 165 164 144 147 137 129 107 83.2 65.2 51.4 42.2 42.4 41.0 38.9 41.0 42.4 42.2 51.4 65.2 83.2 107 129 137 147 144 164 165 182 188 241 287
65.0 430 499 540 508 395 292 244 212 174 144 122 101 83.3 69.1 57.4 53.3 56.9 57.2 54.8 57.2 56.9 53.3 57.4 69.1 83.3 101 122 144 174 212 244 292 395 508 540 499 430 307 235 182 164 147 142 131 137 123 123 106 87.7 63.3 49.4 35.9 35.1 34.6 34.3 34.6 35.1 35.9 49.4 63.3 87.7 106 123 123 137 131 142 147 164 182 235 307
67.5 426 511 628 557 490 342 272 214 169 148 129 107 85.5 67.8 57.9 48.6 51.0 50.8 50.2 50.8 51.0 48.6 57.9 67.8 85.5 107 129 148 169 214 272 342 490 557 628 511 426 264 175 115 108 86.4 98.2 87.6 96.3 89.6 96.4 82.6 80.3 55.0 45.8 31.7 28.5 28.5 28.6 28.5 28.5 31.7 45.8 55.0 80.3 82.6 96.4 89.6 96.3 87.6 98.2 86.4 108 115 175 264
70.0 401 504 623 575 493 332 253 176 167 154 134 107 80.0 57.4 46.9 40.0 38.3 37.7 37.7 37.7 38.3 40.0 46.9 57.4 80.0 107 134 154 167 176 253 332 493 575 623 504 401 239 130 81.8 64.1 58.5 50.3 52.0 46.6 48.6 51.3 51.0 54.8 35.2 32.9 25.9 22.5 22.5 21.8 22.5 22.5 25.9 32.9 35.2 54.8 51.0 51.3 48.6 46.6 52.0 50.3 58.5 64.1 81.8 130 239
72.5 276 420 499 499 434 310 203 149 134 140 127 92.2 64.2 42.8 34.8 28.7 24.5 23.3 25.0 23.3 24.5 28.7 34.8 42.8 64.2 92.2 127 140 134 149 203 310 434 499 499 420 276 169 75.8 38.5 16.5 29.1 17.8 26.6 16.1 23.0 17.6 25.5 21.3 21.5 18.3 16.5 16.6 15.6 14.0 15.6 16.6 16.5 18.3 21.5 21.3 25.5 17.6 23.0 16.1 26.6 17.8 29.1 16.5 38.5 75.8 169
75.0 132 238 284 308 270 198 126 118 115 121 98.5 65.8 34.3 20.6 10.9 15.2 10.5 10.5 10.1 10.5 10.5 15.2 10.9 20.6 34.3 65.8 98.5 121 115 118 126 198 270 308 284 238 132 76.9 38.0 16.8 7.9 6.4 5.3 5.4 5.0 5.5 6.3 9.3 8.4 6.2 8.4 9.3 9.4 8.4 7.2 8.4 9.4 9.3 8.4 6.2 8.4 9.3 6.3 5.5 5.0 5.4 5.3 6.4 7.9 16.8 38.0 76.9
77.5 34.6 68.5 67.6 94.1 68.8 78.3 55.3 64.4 70.9 61.7 50.5 24.7 12.1 4.4 3.1 3.5 3.5 3.5 3.2 3.5 3.5 3.5 3.1 4.4 12.1 24.7 50.5 61.7 70.9 64.4 55.3 78.3 68.8 94.1 67.6 68.5 34.6 21.0 10.1 7.3 4.3 3.7 3.3 3.3 3.1 3.2 3.3 4.5 3.9 3.1 2.6 2.5 2.4 2.5 2.4 2.5 2.4 2.5 2.6 3.1 3.9 4.5 3.3 3.2 3.1 3.3 3.3 3.7 4.3 7.3 10.1 21.0
80.0 3.7 7.2 4.3 7.1 3.9 6.8 4.7 7.9 3.8 7.1 3.2 2.6 1.5 1.4 1.3 1.3 1.1 1.3 1.1 1.3 1.1 1.3 1.3 1.4 1.5 2.6 3.2 7.1 3.8 7.9 4.7 6.8 3.9 7.1 4.3 7.2 3.7 4.1 3.0 2.8 2.4 2.3 2.0 2.0 2.0 1.9 1.9 2.3 2.0 1.7 1.6 1.6 1.6 1.5 1.5 1.5 1.6 1.6 1.6 1.7 2.0 2.3 1.9 1.9 2.0 2.0 2.0 2.3 2.4 2.8 3.0 4.1
82.5 1.8 2.0 1.9 1.8 1.6 1.5 1.4 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 2.0 1.8 1.8 1.7 1.7 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.2 1.0 1.0 1.0 0.9 0.9 1.0 0.9 0.9 1.0 1.0 1.0 1.2 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.7 1.7 1.8
85.0 1.7 1.7 1.7 1.6 1.5 1.4 1.3 1.2 1.0 0.9 0.9 0.9 0.9 0.8 0.9 0.8 0.8 0.6 0.6 0.6 0.8 0.8 0.9 0.8 0.9 0.9 0.9 0.9 1.0 1.2 1.3 1.4 1.5 1.6 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.6 1.7
87.5 1.6 1.5 1.5 1.5 1.5 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.9 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5
90.0 1.5 1.5 1.5 1.5 1.3 1.3 1.2 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.2 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5
92.5 1.5 1.5 1.5 1.4 1.3 1.3 1.2 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.9 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5
95.0 1.5 1.5 1.5 1.4 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.9 0.8 0.9 0.8 0.9 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5
97.5 1.5 1.5 1.5 1.4 1.4 1.3 1.3 1.2 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.2 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5
100.0 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.2 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.5
180.0 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.2 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.7 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.5
