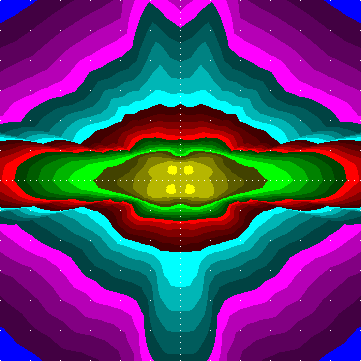

| In left plots, specific illuminances by a continuous row of luminaires spaced 5 and 6 heights are shown in their left halves (right half concerns a single luminaire). | The right plot is for a single luminaire, unrotated. | |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] IN110721A3
# [LUMINAIRE] ELY650-RETROLED-ROAD-NRN
# [LUMCAT] Elysee
# [DATE] 30/09/2011/
# down given: 98.95%
# out given: 92.55%
# tilt: 0
# [LAMP] 28 DS-NW 28 3350 NW LED
# Bulbs: 1, 3350 lm each
# Source file: Elysee_650-ELY-RETROLED-ROAD-NRN_28_DS-NW_28_3350_NW_LED.ldt
# Luminaire flux = 926 raw, for the given bulb(s) it would be 3101 lm,
# 92.6 % of the bulb flux
# between 75 and 90: 6.3 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 518.6 cd / 1000 lm , 2.2 % of the luminaire flux
# 90deg and above: max 2.7 cd / 1000 lm , 1.0 % of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 14 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 29 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 662 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 1180 cd / 1000 lm,
# maximum spec. lum. intensity 1180 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128
2.5 129 129 128 129 128 129 129 130 130 131 131 132 132 132 132 132 133 133 133 133 133 132 132 132 132 132 131 131 130 130 129 129 128 129 128 129 129 130 129 131 131 133 133 135 135 136 137 138 140 140 141 141 141 141 141 141 141 141 141 140 140 138 137 136 135 135 133 133 131 131 129 130
5.0 131 133 131 133 131 135 134 138 137 141 141 143 145 146 147 149 149 149 150 149 149 149 147 146 145 143 141 141 137 138 134 135 131 133 131 133 131 134 133 137 138 143 145 150 151 156 158 161 165 167 168 168 169 170 169 170 169 168 168 167 165 161 158 156 151 150 145 143 138 137 133 134
7.5 138 138 136 139 139 143 144 149 151 156 159 165 167 170 172 174 176 176 173 176 176 174 172 170 167 165 159 156 151 149 144 143 139 139 136 138 138 141 142 148 151 159 165 172 178 182 182 184 184 184 184 183 183 183 183 183 183 183 184 184 184 184 182 182 178 172 165 159 151 148 142 141
10.0 145 145 144 147 149 154 158 165 171 178 182 188 188 191 192 192 194 193 192 193 194 192 192 191 188 188 182 178 171 165 158 154 149 147 144 145 145 148 152 160 168 180 189 196 198 198 196 196 194 192 189 188 187 186 185 186 187 188 189 192 194 196 196 198 198 196 189 180 168 160 152 148
12.5 153 153 152 157 160 167 176 184 193 200 203 206 206 207 208 207 207 206 204 206 207 207 208 207 206 206 203 200 193 184 176 167 160 157 152 153 153 158 163 174 187 201 207 212 213 213 208 207 203 199 196 194 193 191 191 191 193 194 196 199 203 207 208 213 213 212 207 201 187 174 163 158
15.0 162 162 161 166 172 184 195 206 213 219 220 222 222 221 219 216 215 213 212 213 215 216 219 221 222 222 220 219 213 206 195 184 172 166 161 162 162 168 176 191 204 218 224 228 226 227 221 220 214 212 208 207 205 202 202 202 205 207 208 212 214 220 221 227 226 228 224 218 204 191 176 168
17.5 171 171 170 177 185 201 214 227 232 238 237 236 234 232 227 226 225 222 220 222 225 226 227 232 234 236 237 238 232 227 214 201 185 177 170 171 171 180 189 207 219 235 240 244 240 240 235 234 230 228 223 220 217 215 215 215 217 220 223 228 230 234 235 240 240 244 240 235 219 207 189 180
20.0 182 180 180 190 200 218 232 245 250 254 252 250 246 244 241 238 236 233 232 233 236 238 241 244 246 250 252 254 250 245 232 218 200 190 180 180 182 193 204 222 236 251 257 259 255 255 253 251 249 246 240 233 228 225 225 225 228 233 240 246 249 251 253 255 255 259 257 251 236 222 204 193
22.5 191 189 190 201 213 234 249 262 267 269 265 266 264 260 257 252 248 245 243 245 248 252 257 260 264 266 265 269 267 262 249 234 213 201 190 189 191 204 217 235 250 266 271 273 271 274 276 276 273 265 254 245 238 234 234 234 238 245 254 265 273 276 276 274 271 273 271 266 250 235 217 204
25.0 203 200 203 215 229 250 265 278 281 283 281 286 284 280 275 270 266 264 262 264 266 270 275 280 284 286 281 283 281 278 265 250 229 215 203 200 203 218 232 249 262 279 281 285 291 300 301 299 287 274 258 246 235 228 228 228 235 246 258 274 287 299 301 300 291 285 281 279 262 249 232 218
27.5 215 212 217 230 246 268 282 290 293 298 304 309 305 298 287 280 270 263 267 263 270 280 287 298 305 309 304 298 293 290 282 268 246 230 217 212 215 231 246 263 276 289 289 297 311 323 313 301 282 264 242 219 203 198 198 198 203 219 242 264 282 301 313 323 311 297 289 289 276 263 246 231
30.0 228 226 231 246 263 286 295 300 300 317 322 324 310 297 278 260 240 229 235 229 240 260 278 297 310 324 322 317 300 300 295 286 263 246 231 226 228 246 261 278 288 298 298 311 322 323 305 286 262 231 201 175 164 160 160 160 164 175 201 231 262 286 305 323 322 311 298 298 288 278 261 246
32.5 244 244 247 266 282 301 305 307 310 328 322 317 296 273 244 212 195 183 188 183 195 212 244 273 296 317 322 328 310 307 305 301 282 266 247 244 244 264 277 294 301 307 310 324 316 305 285 263 223 184 155 135 128 122 122 122 128 135 155 184 223 263 285 305 316 324 310 307 301 294 277 264
35.0 262 262 264 287 303 317 314 314 321 318 304 294 270 237 201 169 146 137 141 137 146 169 201 237 270 294 304 318 321 314 314 317 303 287 264 262 262 283 294 312 316 321 324 323 297 278 258 225 175 146 128 111 103 95.4 95.0 95.4 103 111 128 146 175 225 258 278 297 323 324 321 316 312 294 283
37.5 280 280 285 311 327 335 324 327 319 299 279 261 235 199 156 125 107 96.4 101 96.4 107 125 156 199 235 261 279 299 319 327 324 335 327 311 285 280 280 303 313 334 338 342 334 312 287 264 230 193 164 140 116 94.5 79.8 71.0 71.0 71.0 79.8 94.5 116 140 164 193 230 264 287 312 334 342 338 334 313 303
40.0 301 300 310 342 357 356 340 334 306 280 251 225 193 158 115 88.9 66.5 57.1 60.8 57.1 66.5 88.9 115 158 193 225 251 280 306 334 340 356 357 342 310 300 301 326 341 363 366 365 340 318 303 264 218 183 151 123 97.0 76.2 62.1 55.4 55.3 55.4 62.1 76.2 97.0 123 151 183 218 264 303 318 340 365 366 363 341 326
42.5 327 323 340 375 388 379 354 330 292 261 229 199 160 125 93.0 70.7 50.2 45.0 40.2 45.0 50.2 70.7 93.0 125 160 199 229 261 292 330 354 379 388 375 340 323 327 350 369 399 398 385 365 357 320 256 190 153 127 100 80.1 62.4 54.5 50.8 50.6 50.8 54.5 62.4 80.1 100 127 153 190 256 320 357 365 385 398 399 369 350
45.0 353 347 367 407 416 395 357 321 283 261 234 189 146 119 93.4 67.3 53.8 46.7 46.3 46.7 53.8 67.3 93.4 119 146 189 234 261 283 321 357 395 416 407 367 347 353 372 395 428 429 418 406 389 287 189 144 125 102 80.3 61.8 51.2 46.3 43.7 44.0 43.7 46.3 51.2 61.8 80.3 102 125 144 189 287 389 406 418 429 428 395 372
47.5 383 375 392 424 418 392 350 319 302 279 225 170 132 95.6 70.5 50.0 43.1 37.4 37.7 37.4 43.1 50.0 70.5 95.6 132 170 225 279 302 319 350 392 418 424 392 375 383 395 417 449 455 457 437 346 185 143 111 96.7 76.3 59.7 46.7 41.6 37.1 35.4 34.9 35.4 37.1 41.6 46.7 59.7 76.3 96.7 111 143 185 346 437 457 455 449 417 395
50.0 417 409 411 422 401 366 338 339 322 262 190 114 81.6 60.3 42.9 33.8 29.7 26.9 27.4 26.9 29.7 33.8 42.9 60.3 81.6 114 190 262 322 339 338 366 401 422 411 409 417 425 434 467 472 473 385 196 135 105 81.7 69.1 53.7 41.6 33.0 30.0 27.4 26.8 26.9 26.8 27.4 30.0 33.0 41.6 53.7 69.1 81.7 105 135 196 385 473 472 467 434 425
52.5 481 456 425 406 365 340 348 351 291 184 97.9 66.6 52.0 38.3 27.8 22.0 20.1 18.2 19.4 18.2 20.1 22.0 27.8 38.3 52.0 66.6 97.9 184 291 351 348 340 365 406 425 456 481 461 453 479 466 426 199 127 99.9 75.2 58.1 45.4 35.1 25.5 21.8 18.9 18.1 17.7 17.6 17.7 18.1 18.9 21.8 25.5 35.1 45.4 58.1 75.2 99.9 127 199 426 466 479 453 461
55.0 523 493 443 383 317 326 350 305 165 94.7 62.9 45.2 34.5 25.3 18.2 15.1 13.9 12.8 12.8 12.8 13.9 15.1 18.2 25.3 34.5 45.2 62.9 94.7 165 305 350 326 317 383 443 493 523 502 486 492 413 255 107 87.1 72.2 54.3 39.4 28.5 20.9 16.2 14.2 12.3 11.1 10.9 11.2 10.9 11.1 12.3 14.2 16.2 20.9 28.5 39.4 54.3 72.2 87.1 107 255 413 492 486 502
57.5 504 480 440 359 306 326 319 177 73.9 60.9 48.0 32.8 25.8 19.2 14.7 13.1 11.9 10.7 10.4 10.7 11.9 13.1 14.7 19.2 25.8 32.8 48.0 60.9 73.9 177 319 326 306 359 440 480 504 523 542 468 301 85.8 63.1 56.4 47.6 38.4 24.6 17.3 13.3 11.3 11.3 10.7 9.4 9.1 9.1 9.1 9.4 10.7 11.3 11.3 13.3 17.3 24.6 38.4 47.6 56.4 63.1 85.8 301 468 542 523
60.0 511 466 393 341 324 305 181 65.1 47.9 43.6 35.5 25.4 20.6 17.3 14.2 11.5 10.3 10.1 9.2 10.1 10.3 11.5 14.2 17.3 20.6 25.4 35.5 43.6 47.9 65.1 181 305 324 341 393 466 511 525 521 380 150 36.2 34.8 37.0 33.3 27.2 17.4 12.4 10.6 9.5 9.3 9.5 9.0 8.2 8.2 8.2 9.0 9.5 9.3 9.5 10.6 12.4 17.4 27.2 33.3 37.0 34.8 36.2 150 380 521 525
62.5 567 497 409 365 334 216 39.4 33.9 34.8 31.4 25.7 17.7 15.7 14.7 12.1 9.7 8.8 8.8 8.2 8.8 8.8 9.7 12.1 14.7 15.7 17.7 25.7 31.4 34.8 33.9 39.4 216 334 365 409 497 567 564 493 277 47.9 17.9 19.4 25.8 23.8 19.8 13.6 10.1 8.9 8.2 8.1 8.1 8.1 7.6 7.6 7.6 8.1 8.1 8.1 8.2 8.9 10.1 13.6 19.8 23.8 25.8 19.4 17.9 47.9 277 493 564
65.0 662 578 483 406 297 98.5 19.0 21.9 25.2 21.1 17.5 12.7 11.4 10.3 9.7 8.5 7.5 7.2 8.2 7.2 7.5 8.5 9.7 10.3 11.4 12.7 17.5 21.1 25.2 21.9 19.0 98.5 297 406 483 578 662 649 478 167 22.3 12.5 12.6 18.2 16.3 14.1 10.5 8.3 7.5 6.7 6.8 6.8 6.3 6.8 6.8 6.8 6.3 6.8 6.8 6.7 7.5 8.3 10.5 14.1 16.3 18.2 12.6 12.5 22.3 167 478 649
67.5 746 665 592 415 197 30.8 14.5 16.4 17.1 12.9 12.6 9.4 8.7 8.0 7.8 7.3 6.2 6.0 6.9 6.0 6.2 7.3 7.8 8.0 8.7 9.4 12.6 12.9 17.1 16.4 14.5 30.8 197 415 592 665 746 735 449 57.2 13.9 10.0 10.0 12.1 11.0 10.3 8.0 6.6 6.1 5.4 5.4 5.9 5.5 5.5 5.5 5.5 5.5 5.9 5.4 5.4 6.1 6.6 8.0 10.3 11.0 12.1 10.0 10.0 13.9 57.2 449 735
70.0 854 747 689 375 64.8 16.3 14.5 13.0 10.8 8.5 9.7 7.3 7.3 6.7 6.9 7.1 6.0 5.7 6.1 5.7 6.0 7.1 6.9 6.7 7.3 7.3 9.7 8.5 10.8 13.0 14.5 16.3 64.8 375 689 747 854 797 377 26.8 10.7 8.3 7.8 7.8 7.2 7.3 5.8 5.2 4.7 4.2 4.2 5.1 6.2 5.4 5.4 5.4 6.2 5.1 4.2 4.2 4.7 5.2 5.8 7.3 7.2 7.8 7.8 8.3 10.7 26.8 377 797
72.5 1020 880 710 242 21.8 14.4 13.8 9.5 7.0 6.4 7.7 6.2 6.3 5.5 6.4 7.1 6.6 5.6 5.7 5.6 6.6 7.1 6.4 5.5 6.3 6.2 7.7 6.4 7.0 9.5 13.8 14.4 21.8 242 710 880 1020 846 245 15.0 8.7 7.4 6.2 5.3 5.2 5.3 4.4 4.2 3.9 3.5 3.7 4.6 7.5 8.1 8.2 8.1 7.5 4.6 3.7 3.5 3.9 4.2 4.4 5.3 5.2 5.3 6.2 7.4 8.7 15.0 245 846
75.0 1180 1031 708 126 13.1 12.7 10.3 6.8 5.2 5.0 5.9 4.7 4.8 4.4 5.2 7.0 8.1 5.8 5.5 5.8 8.1 7.0 5.2 4.4 4.8 4.7 5.9 5.0 5.2 6.8 10.3 12.7 13.1 126 708 1031 1180 910 138 11.2 7.4 6.3 4.8 3.9 4.0 4.0 3.5 3.5 3.2 3.0 3.1 4.2 8.6 10.8 10.8 10.8 8.6 4.2 3.1 3.0 3.2 3.5 3.5 4.0 4.0 3.9 4.8 6.3 7.4 11.2 138 910
77.5 1050 916 519 42.5 9.5 8.1 6.6 4.3 3.4 3.4 3.8 3.4 3.4 3.3 3.8 6.3 9.1 6.3 5.2 6.3 9.1 6.3 3.8 3.3 3.4 3.4 3.8 3.4 3.4 4.3 6.6 8.1 9.5 42.5 519 916 1050 726 58.2 8.5 6.1 4.9 3.6 3.0 3.0 3.1 2.8 2.9 2.6 2.4 2.5 3.6 8.2 11.3 11.3 11.3 8.2 3.6 2.5 2.4 2.6 2.9 2.8 3.1 3.0 3.0 3.6 4.9 6.1 8.5 58.2 726
80.0 519 469 180 14.3 6.1 5.4 4.0 3.1 2.6 2.6 2.6 2.5 2.5 2.5 2.6 5.1 7.9 5.2 3.8 5.2 7.9 5.1 2.6 2.5 2.5 2.5 2.6 2.6 2.6 3.1 4.0 5.4 6.1 14.3 180 469 519 275 17.2 6.0 4.6 3.6 2.6 2.3 2.2 2.3 2.1 2.2 1.9 1.8 2.0 3.0 7.0 10.4 10.5 10.4 7.0 3.0 2.0 1.8 1.9 2.2 2.1 2.3 2.2 2.3 2.6 3.6 4.6 6.0 17.2 275
82.5 133 142 31.7 5.6 3.9 3.4 2.6 2.2 1.8 1.6 1.5 1.5 1.5 1.5 1.7 3.5 5.4 3.3 2.7 3.3 5.4 3.5 1.7 1.5 1.5 1.5 1.5 1.6 1.8 2.2 2.6 3.4 3.9 5.6 31.7 142 133 44.1 6.4 3.8 2.9 2.3 1.8 1.7 1.5 1.5 1.4 1.4 1.2 1.2 1.3 2.1 4.6 7.6 7.7 7.6 4.6 2.1 1.3 1.2 1.2 1.4 1.4 1.5 1.5 1.7 1.8 2.3 2.9 3.8 6.4 44.1
85.0 19.6 16.7 3.5 2.4 1.9 1.7 1.3 1.3 1.0 0.8 0.8 0.8 0.7 0.7 0.8 1.3 1.3 1.1 0.8 1.1 1.3 1.3 0.8 0.7 0.7 0.8 0.8 0.8 1.0 1.3 1.3 1.7 1.9 2.4 3.5 16.7 19.6 8.3 2.4 2.1 1.5 1.4 1.2 1.2 0.9 0.9 0.7 0.7 0.5 0.5 0.6 0.9 1.2 2.9 3.5 2.9 1.2 0.9 0.6 0.5 0.5 0.7 0.7 0.9 0.9 1.2 1.2 1.4 1.5 2.1 2.4 8.3
87.5 1.3 1.3 1.3 1.3 1.2 1.2 1.1 1.0 0.8 0.7 0.5 0.5 0.4 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.4 0.5 0.5 0.7 0.8 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.1 1.0 0.9 0.7 0.6 0.5 0.4 0.3 0.3 0.3 0.2 0.2 0.2 0.3 0.2 0.2 0.2 0.3 0.3 0.3 0.4 0.5 0.6 0.7 0.9 1.0 1.1 1.2 1.3 1.3 1.3
90.0 1.4 1.4 1.4 1.4 1.3 1.3 1.2 1.1 0.9 0.7 0.6 0.5 0.4 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.4 0.5 0.6 0.7 0.9 1.1 1.2 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.2 1.1 1.0 0.8 0.6 0.5 0.4 0.4 0.3 0.3 0.3 0.2 0.2 0.3 0.2 0.2 0.3 0.3 0.3 0.4 0.4 0.5 0.6 0.8 1.0 1.1 1.2 1.3 1.4 1.4 1.4
92.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.1 1.0 0.8 0.7 0.5 0.5 0.4 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.4 0.5 0.5 0.7 0.8 1.0 1.1 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.2 1.0 0.9 0.7 0.6 0.5 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.6 0.7 0.9 1.0 1.2 1.3 1.4 1.5 1.5 1.5
95.0 1.6 1.6 1.6 1.6 1.5 1.5 1.4 1.3 1.1 0.9 0.8 0.6 0.5 0.4 0.3 0.3 0.3 0.3 0.2 0.3 0.3 0.3 0.3 0.4 0.5 0.6 0.8 0.9 1.1 1.3 1.4 1.5 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.3 1.2 1.0 0.8 0.7 0.5 0.5 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.5 0.7 0.8 1.0 1.2 1.3 1.5 1.5 1.6 1.6 1.6
97.5 1.7 1.7 1.6 1.7 1.6 1.6 1.5 1.4 1.2 1.0 0.8 0.7 0.6 0.4 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.6 0.7 0.8 1.0 1.2 1.4 1.5 1.6 1.6 1.7 1.6 1.7 1.7 1.7 1.6 1.6 1.6 1.5 1.5 1.3 1.1 0.9 0.7 0.6 0.5 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.5 0.6 0.7 0.9 1.1 1.3 1.5 1.5 1.6 1.6 1.6 1.7
100.0 1.6 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.3 1.1 0.9 0.8 0.6 0.5 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.5 0.6 0.8 0.9 1.1 1.3 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.6 1.7 1.6 1.7 1.6 1.6 1.5 1.4 1.2 1.0 0.8 0.7 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.7 0.8 1.0 1.2 1.4 1.5 1.6 1.6 1.7 1.6 1.7
102.5 1.6 1.7 1.7 1.8 1.8 1.7 1.6 1.5 1.4 1.2 1.0 0.8 0.7 0.6 0.5 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.5 0.6 0.7 0.8 1.0 1.2 1.4 1.5 1.6 1.7 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.7 1.6 1.5 1.3 1.0 0.9 0.7 0.7 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.7 0.7 0.9 1.0 1.3 1.5 1.6 1.7 1.7 1.7 1.6 1.6
105.0 1.6 1.7 1.7 1.8 1.8 1.8 1.7 1.6 1.5 1.3 1.1 0.9 0.8 0.7 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.7 0.8 0.9 1.1 1.3 1.5 1.6 1.7 1.8 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.8 1.7 1.6 1.4 1.1 1.0 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 1.0 1.1 1.4 1.6 1.7 1.8 1.7 1.7 1.6 1.6
107.5 1.6 1.7 1.8 1.9 1.9 1.9 1.9 1.8 1.6 1.4 1.2 1.0 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 1.0 1.2 1.4 1.6 1.8 1.9 1.9 1.9 1.9 1.8 1.7 1.6 1.6 1.7 1.8 1.8 1.8 1.7 1.6 1.5 1.2 1.1 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.9 1.1 1.2 1.5 1.6 1.7 1.8 1.8 1.8 1.7 1.6
110.0 1.7 1.8 1.9 2.0 2.0 2.0 2.0 1.9 1.7 1.5 1.3 1.1 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.9 1.1 1.3 1.5 1.7 1.9 2.0 2.0 2.0 2.0 1.9 1.8 1.7 1.7 1.7 1.9 1.9 1.9 1.8 1.7 1.5 1.3 1.1 1.0 0.9 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.9 1.0 1.1 1.3 1.5 1.7 1.8 1.9 1.9 1.9 1.7 1.7
112.5 1.7 1.8 1.9 2.0 2.1 2.1 2.1 2.0 1.7 1.6 1.4 1.2 1.0 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.7 0.7 0.8 0.8 1.0 1.2 1.4 1.6 1.7 2.0 2.1 2.1 2.1 2.0 1.9 1.8 1.7 1.8 1.8 1.9 2.0 2.0 1.9 1.8 1.6 1.4 1.2 1.1 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.8 0.8 0.8 0.9 0.9 1.1 1.2 1.4 1.6 1.8 1.9 2.0 2.0 1.9 1.8 1.8
115.0 1.8 1.9 2.0 2.1 2.1 2.1 2.1 2.0 1.8 1.7 1.4 1.3 1.1 0.9 0.8 0.8 0.8 0.7 0.7 0.7 0.8 0.8 0.8 0.9 1.1 1.3 1.4 1.7 1.8 2.0 2.1 2.1 2.1 2.1 2.0 1.9 1.8 1.8 1.9 2.0 2.0 2.1 2.0 1.9 1.6 1.5 1.3 1.1 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.1 1.3 1.5 1.6 1.9 2.0 2.1 2.0 2.0 1.9 1.8
117.5 1.8 1.9 2.0 2.2 2.2 2.2 2.1 2.1 1.9 1.7 1.5 1.4 1.1 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.1 1.4 1.5 1.7 1.9 2.1 2.1 2.2 2.2 2.2 2.0 1.9 1.8 1.9 1.9 2.0 2.1 2.1 2.0 1.9 1.7 1.5 1.4 1.2 1.1 1.1 1.0 1.0 0.9 0.9 0.8 0.9 0.9 1.0 1.0 1.1 1.1 1.2 1.4 1.5 1.7 1.9 2.0 2.1 2.1 2.0 1.9 1.9
120.0 1.9 2.0 2.1 2.2 2.2 2.2 2.2 2.1 2.0 1.8 1.6 1.4 1.2 1.1 1.0 1.0 0.9 0.9 0.8 0.9 0.9 1.0 1.0 1.1 1.2 1.4 1.6 1.8 2.0 2.1 2.2 2.2 2.2 2.2 2.1 2.0 1.9 1.9 2.0 2.1 2.1 2.1 2.0 1.9 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 0.9 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.9 2.0 2.1 2.1 2.1 2.0 1.9
122.5 2.0 2.1 2.1 2.2 2.2 2.3 2.2 2.1 2.0 1.9 1.6 1.5 1.3 1.2 1.1 1.1 1.0 1.0 0.9 1.0 1.0 1.1 1.1 1.2 1.3 1.5 1.6 1.9 2.0 2.1 2.2 2.3 2.2 2.2 2.1 2.1 2.0 2.0 2.1 2.1 2.1 2.1 2.1 2.0 1.8 1.6 1.5 1.4 1.3 1.2 1.2 1.1 1.1 1.1 1.0 1.1 1.1 1.1 1.2 1.2 1.3 1.4 1.5 1.6 1.8 2.0 2.1 2.1 2.1 2.1 2.1 2.0
125.0 2.0 2.1 2.1 2.2 2.2 2.3 2.2 2.2 2.0 1.9 1.6 1.5 1.4 1.3 1.2 1.1 1.1 1.1 1.0 1.1 1.1 1.1 1.2 1.3 1.4 1.5 1.6 1.9 2.0 2.2 2.2 2.3 2.2 2.2 2.1 2.1 2.0 2.1 2.1 2.2 2.2 2.2 2.1 2.0 1.8 1.6 1.5 1.4 1.3 1.3 1.2 1.2 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.3 1.3 1.4 1.5 1.6 1.8 2.0 2.1 2.2 2.2 2.2 2.1 2.1
127.5 2.0 2.1 2.1 2.2 2.2 2.2 2.2 2.2 2.0 1.9 1.7 1.5 1.5 1.4 1.3 1.2 1.1 1.2 1.1 1.2 1.1 1.2 1.3 1.4 1.5 1.5 1.7 1.9 2.0 2.2 2.2 2.2 2.2 2.2 2.1 2.1 2.0 2.1 2.1 2.2 2.2 2.2 2.1 2.0 1.8 1.6 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.6 1.8 2.0 2.1 2.2 2.2 2.2 2.1 2.1
130.0 2.1 2.0 2.1 2.1 2.2 2.2 2.1 2.1 2.0 1.9 1.7 1.6 1.5 1.5 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.5 1.5 1.6 1.7 1.9 2.0 2.1 2.1 2.2 2.2 2.1 2.1 2.0 2.1 2.1 2.1 2.2 2.2 2.2 2.1 2.0 1.8 1.7 1.5 1.5 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.5 1.5 1.7 1.8 2.0 2.1 2.2 2.2 2.2 2.1 2.1
132.5 2.1 2.1 2.1 2.1 2.1 2.2 2.1 2.1 2.0 1.9 1.7 1.6 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.6 1.7 1.9 2.0 2.1 2.1 2.2 2.1 2.1 2.1 2.1 2.1 2.2 2.2 2.3 2.3 2.3 2.2 2.1 1.9 1.7 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.5 1.5 1.6 1.7 1.9 2.1 2.2 2.3 2.3 2.3 2.2 2.2
135.0 2.2 2.2 2.1 2.1 2.2 2.2 2.2 2.1 2.0 1.9 1.8 1.7 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.7 1.8 1.9 2.0 2.1 2.2 2.2 2.2 2.1 2.1 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.2 2.1 1.9 1.8 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.8 1.9 2.1 2.2 2.3 2.3 2.3 2.3 2.3
137.5 2.3 2.3 2.2 2.2 2.2 2.1 2.1 2.1 2.0 1.9 1.8 1.7 1.6 1.5 1.5 1.5 1.4 1.5 1.4 1.5 1.4 1.5 1.5 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.1 2.1 2.2 2.2 2.2 2.3 2.3 2.3 2.3 2.4 2.4 2.3 2.2 2.1 1.9 1.8 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.8 1.9 2.1 2.2 2.3 2.4 2.4 2.3 2.3
140.0 2.3 2.3 2.3 2.3 2.3 2.2 2.1 2.0 2.0 1.9 1.8 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.8 1.9 2.0 2.0 2.1 2.2 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.4 2.3 2.1 2.0 1.8 1.7 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.6 1.5 1.5 1.5 1.5 1.6 1.6 1.7 1.8 2.0 2.1 2.3 2.4 2.4 2.4 2.4 2.4
142.5 2.4 2.4 2.3 2.3 2.3 2.2 2.1 2.0 1.9 1.8 1.8 1.7 1.7 1.6 1.6 1.5 1.6 1.5 1.5 1.5 1.6 1.5 1.6 1.6 1.7 1.7 1.8 1.8 1.9 2.0 2.1 2.2 2.3 2.3 2.3 2.4 2.4 2.5 2.4 2.5 2.4 2.4 2.3 2.1 2.0 1.8 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.8 2.0 2.1 2.3 2.4 2.4 2.5 2.4 2.5
145.0 2.4 2.4 2.4 2.4 2.3 2.3 2.1 2.0 1.9 1.9 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.8 1.8 1.9 1.9 2.0 2.1 2.3 2.3 2.4 2.4 2.4 2.4 2.5 2.4 2.5 2.4 2.4 2.2 2.1 2.0 1.9 1.8 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.7 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.8 1.9 2.0 2.1 2.2 2.4 2.4 2.5 2.4 2.5
147.5 2.5 2.5 2.4 2.4 2.3 2.3 2.1 2.0 1.9 1.9 1.8 1.8 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7 1.8 1.8 1.9 1.9 2.0 2.1 2.3 2.3 2.4 2.4 2.5 2.5 2.5 2.5 2.5 2.4 2.3 2.2 2.1 2.0 1.9 1.8 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.5 2.5
150.0 2.5 2.5 2.4 2.4 2.3 2.3 2.1 2.1 1.9 1.9 1.8 1.8 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8 1.8 1.9 1.9 2.1 2.1 2.3 2.3 2.4 2.4 2.5 2.5 2.5 2.5 2.5 2.4 2.3 2.2 2.1 2.0 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.5 2.5
152.5 2.5 2.5 2.5 2.5 2.3 2.3 2.2 2.1 2.0 1.9 1.8 1.8 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.8 1.8 1.9 2.0 2.1 2.2 2.3 2.3 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.4 2.4 2.3 2.2 2.1 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.9 1.9 2.0 2.1 2.2 2.3 2.4 2.4 2.5 2.5 2.5
155.0 2.6 2.6 2.5 2.5 2.4 2.3 2.2 2.2 2.0 2.0 1.9 1.9 1.8 1.8 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.8 1.8 1.9 1.9 2.0 2.0 2.2 2.2 2.3 2.4 2.5 2.5 2.6 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.2 2.1 2.1 2.0 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 2.0 2.1 2.1 2.2 2.3 2.4 2.4 2.5 2.5 2.6
157.5 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.2 2.1 2.0 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.9 1.9 2.0 2.0 2.1 2.2 2.3 2.4 2.4 2.5 2.5 2.6 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.2 2.1 2.1 2.0 2.0 2.0 2.0 2.0 1.9 1.9 1.9 1.9 1.9 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.2 2.3 2.3 2.4 2.4 2.5 2.5 2.6
160.0 2.6 2.6 2.6 2.6 2.4 2.4 2.3 2.3 2.2 2.1 2.0 2.0 1.9 1.9 1.9 1.8 1.9 1.9 1.9 1.9 1.9 1.8 1.9 1.9 1.9 2.0 2.0 2.1 2.2 2.3 2.3 2.4 2.4 2.6 2.6 2.6 2.6 2.6 2.5 2.5 2.5 2.4 2.3 2.3 2.2 2.2 2.1 2.1 2.1 2.1 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.1 2.1 2.1 2.1 2.2 2.2 2.3 2.3 2.4 2.5 2.5 2.5 2.6
162.5 2.6 2.7 2.6 2.6 2.5 2.5 2.4 2.3 2.3 2.2 2.2 2.1 2.0 2.0 2.0 1.9 1.9 1.9 2.0 1.9 1.9 1.9 2.0 2.0 2.0 2.1 2.2 2.2 2.3 2.3 2.4 2.5 2.5 2.6 2.6 2.7 2.6 2.7 2.6 2.6 2.5 2.5 2.4 2.3 2.3 2.3 2.2 2.2 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.2 2.2 2.3 2.3 2.3 2.4 2.5 2.5 2.6 2.6 2.7
165.0 2.7 2.7 2.6 2.7 2.5 2.5 2.4 2.4 2.3 2.3 2.3 2.2 2.2 2.1 2.1 2.0 2.1 2.0 2.1 2.0 2.1 2.0 2.1 2.1 2.2 2.2 2.3 2.3 2.3 2.4 2.4 2.5 2.5 2.7 2.6 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.3 2.3 2.2 2.2 2.2 2.2 2.1 2.1 2.2 2.1 2.1 2.2 2.2 2.2 2.2 2.3 2.3 2.3 2.3 2.4 2.4 2.5 2.5 2.6 2.6 2.7
167.5 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.2 2.2 2.2 2.2 2.1 2.1 2.2 2.1 2.1 2.2 2.2 2.2 2.2 2.3 2.3 2.4 2.4 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.5 2.5 2.6 2.6 2.7
170.0 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.2 2.2 2.2 2.3 2.2 2.2 2.2 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.5 2.5 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.5 2.5 2.6 2.7 2.7 2.7
172.5 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.4 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.4 2.5 2.5 2.6 2.6 2.7 2.7 2.7
175.0 2.7 2.7 2.6 2.7 2.6 2.6 2.5 2.5 2.5 2.4 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.4 2.5 2.5 2.5 2.6 2.6 2.7 2.6 2.7 2.7 2.7 2.6 2.7 2.6 2.6 2.5 2.5 2.4 2.5 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.5 2.4 2.5 2.5 2.6 2.6 2.7 2.6 2.7
177.5 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.4 2.4 2.4 2.4 2.4 2.3 2.4 2.3 2.4 2.4 2.4 2.3 2.4 2.3 2.4 2.4 2.4 2.4 2.4 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.6 2.6 2.5 2.5 2.4 2.5 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.5 2.4 2.5 2.5 2.6 2.6 2.7 2.6 2.7
180.0 2.7 2.7 2.7 2.7 2.6 2.6 2.5 2.5 2.5 2.4 2.4 2.4 2.4 2.4 2.3 2.4 2.3 2.4 2.4 2.4 2.3 2.4 2.3 2.4 2.4 2.4 2.4 2.4 2.5 2.5 2.5 2.6 2.6 2.7 2.7 2.7 2.7 2.7 2.6 2.7 2.6 2.6 2.5 2.5 2.4 2.5 2.4 2.4 2.4 2.4 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.5 2.4 2.5 2.5 2.6 2.6 2.7 2.6 2.7
