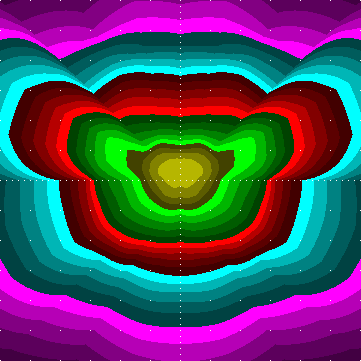

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] EINR523B.LDT
# [LUMINAIRE] ELE-EXACT-SNN-E
# [LUMCAT] Element
# [DATE] 20/11/2012/2007 INDUSTRIA Labor Capelle
# down given: 100%
# out given: 74.4%
# tilt: 0.0
# [LAMP] 1 MT 60 6800 2800 PGZ12
# Bulbs: 1, 6800 lm each
# Source file: Element_ELE-EXACT-SNN-E_1_MT_60_6800_2800_PGZ12.ldt
# Luminaire flux = 744 raw, for the given bulb(s) it would be 5059 lm,
# 74.4 % of the bulb flux
# between 75 and 90: 3.5 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 85.2 cd / 1000 lm , 0.7 % of the luminaire flux
# 90deg and above: max 0.8 cd / 1000 lm , 0.0 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 0 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 0 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 394 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 554 cd / 1000 lm,
# maximum spec. lum. intensity 554 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 15.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0
#V:
0.0 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151 151
2.5 154 155 157 158 158 158 157 158 158 158 157 155 154 152 150 148 147 146 145 146 147 148 150 152
5.0 158 160 162 164 164 163 163 163 164 164 162 160 158 154 151 147 144 141 140 141 144 147 151 154
7.5 161 166 170 171 170 169 168 169 170 171 170 166 161 157 153 147 142 138 136 138 142 147 153 157
10.0 166 172 176 177 177 177 176 177 177 177 176 172 166 160 155 148 141 136 133 136 141 148 155 160
12.5 170 177 182 184 186 186 186 186 186 184 182 177 170 162 156 149 141 134 131 134 141 149 156 162
15.0 172 181 186 191 195 195 193 195 195 191 186 181 172 163 156 150 141 133 128 133 141 150 156 163
17.5 173 185 191 198 204 201 197 201 204 198 191 185 173 162 155 149 142 132 126 132 142 149 155 162
20.0 176 189 197 205 210 206 199 206 210 205 197 189 176 163 154 148 143 133 126 133 143 148 154 163
22.5 179 194 206 213 215 210 203 210 215 213 206 194 179 164 154 149 144 135 127 135 144 149 154 164
25.0 183 201 218 221 220 217 211 217 220 221 218 201 183 166 155 149 146 134 125 134 146 149 155 166
27.5 186 209 234 231 227 227 222 227 227 231 234 209 186 168 157 150 145 131 120 131 145 150 157 168
30.0 186 215 246 244 236 241 236 241 236 244 246 215 186 169 157 151 142 127 115 127 142 151 157 169
32.5 188 224 256 257 248 250 241 250 248 257 256 224 188 169 156 151 137 124 111 124 137 151 156 169
35.0 191 239 266 267 259 253 242 253 259 267 266 239 191 165 154 148 131 119 105 119 131 148 154 165
37.5 191 251 278 273 266 249 234 249 266 273 278 251 191 160 147 142 126 114 96.8 114 126 142 147 160
40.0 190 257 284 277 269 237 217 237 269 277 284 257 190 156 140 135 121 105 89.4 105 121 135 140 156
42.5 189 259 285 282 270 216 191 216 270 282 285 259 189 152 133 124 113 100 84.0 100 113 124 133 152
45.0 186 255 283 285 263 189 162 189 263 285 283 255 186 146 127 114 107 94.0 75.8 94.0 107 114 127 146
47.5 174 251 286 285 248 162 136 162 248 285 286 251 174 139 123 107 102 87.1 69.2 87.1 102 107 123 139
50.0 157 241 291 281 227 139 113 139 227 281 291 241 157 132 121 104 95.7 81.0 64.0 81.0 95.7 104 121 132
52.5 148 228 279 253 198 118 91.8 118 198 253 279 228 148 128 120 101 90.2 75.1 60.6 75.1 90.2 101 120 128
55.0 145 233 258 195 163 98.5 76.0 98.5 163 195 258 233 145 127 121 99.5 84.5 71.4 56.8 71.4 84.5 99.5 121 127
57.5 140 251 269 145 123 81.2 62.2 81.2 123 145 269 251 140 124 120 98.2 79.9 67.7 53.6 67.7 79.9 98.2 120 124
60.0 136 276 313 123 93.6 68.2 53.4 68.2 93.6 123 313 276 136 122 119 96.0 76.5 63.6 49.8 63.6 76.5 96.0 119 122
62.5 136 307 351 115 80.7 57.8 45.8 57.8 80.7 115 351 307 136 120 118 93.1 71.4 55.7 42.6 55.7 71.4 93.1 118 120
65.0 148 342 394 112 72.8 49.9 40.0 49.9 72.8 112 394 342 148 118 116 88.4 61.9 42.9 33.0 42.9 61.9 88.4 116 118
67.5 145 397 479 109 65.2 42.9 34.8 42.9 65.2 109 479 397 145 112 110 79.3 44.0 27.5 22.2 27.5 44.0 79.3 110 112
70.0 115 434 554 101 57.8 35.8 28.6 35.8 57.8 101 554 434 115 91.0 86.5 58.1 23.9 17.0 16.0 17.0 23.9 58.1 86.5 91.0
72.5 43.8 350 483 74.0 48.6 28.0 21.0 28.0 48.6 74.0 483 350 43.8 46.4 49.6 29.2 13.1 11.9 11.8 11.9 13.1 29.2 49.6 46.4
75.0 27.2 238 322 34.9 32.6 17.0 11.4 17.0 32.6 34.9 322 238 27.2 25.3 27.9 12.2 7.6 7.9 7.0 7.9 7.6 12.2 27.9 25.3
77.5 18.7 149 182 13.0 11.7 5.6 4.6 5.6 11.7 13.0 182 149 18.7 19.0 19.5 7.2 4.6 4.7 4.4 4.7 4.6 7.2 19.5 19.0
80.0 10.9 79.6 85.2 6.3 2.7 3.6 2.8 3.6 2.7 6.3 85.2 79.6 10.9 12.9 12.0 4.8 2.6 3.2 3.2 3.2 2.6 4.8 12.0 12.9
82.5 5.0 21.6 27.4 3.3 1.7 2.0 1.8 2.0 1.7 3.3 27.4 21.6 5.0 7.0 5.9 2.8 1.3 1.5 2.2 1.5 1.3 2.8 5.9 7.0
85.0 2.0 2.9 4.6 1.6 1.0 1.8 1.0 1.8 1.0 1.6 4.6 2.9 2.0 2.6 2.2 1.4 1.0 1.0 1.2 1.0 1.0 1.4 2.2 2.6
87.5 1.0 1.0 0.4 0.6 0.7 1.0 0.8 1.0 0.7 0.6 0.4 1.0 1.0 0.8 0.6 0.4 0.3 0.2 0.2 0.2 0.3 0.4 0.6 0.8
90.0 0.0 0.2 0.0 0.0 0.0 0.8 0.0 0.8 0.0 0.0 0.0 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
92.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
95.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
97.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
102.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
105.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
107.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
112.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
115.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
117.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
122.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
125.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
127.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
132.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
135.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
137.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
142.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
145.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
147.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
152.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
155.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
157.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
162.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
167.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
172.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
177.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
