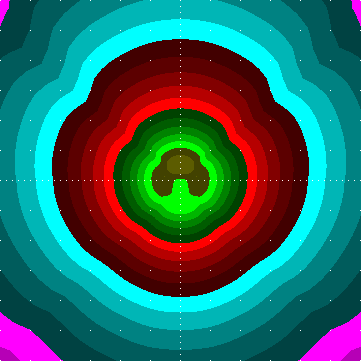

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] CE06I05S.LDT
# [LUMINAIRE] CENTURY-RA
# [LUMCAT] Century
# [DATE] 28/11/2012/
# down given: 99%
# out given: 31.0%
# tilt: 0.0
# [LAMP] 1 MT 60 6800 2800 PGZ12
# Bulbs: 1, 6800 lm each
# Source file: Century_CENRA_1_MT_60_6800_2800_PGZ12.ldt
# Luminaire flux = 310 raw, for the given bulb(s) it would be 2111 lm,
# 31.0 % of the bulb flux
# between 75 and 90: 11.4 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 31.8 cd / 1000 lm , 6.3 % of the luminaire flux
# 90deg and above: max 16.4 cd / 1000 lm , 0.9 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 39 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 193 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 61 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 51 cd / 1000 lm,
# maximum spec. lum. intensity 115 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3 25.3
5.0 27.2 27.6 28.2 28.8 29.3 29.9 30.4 30.9 31.4 31.9 32.3 32.7 33.0 33.3 33.6 33.8 33.9 34.1 34.1 34.1 33.9 33.8 33.6 33.3 33.0 32.7 32.3 31.9 31.4 30.9 30.4 29.9 29.3 28.8 28.2 27.6 27.2 26.8 26.2 25.6 25.1 24.6 24.1 23.7 23.4 23.0 22.7 22.4 22.2 21.9 21.8 21.6 21.5 21.4 21.3 21.4 21.5 21.6 21.8 21.9 22.2 22.4 22.7 23.0 23.4 23.7 24.1 24.6 25.1 25.6 26.2 26.8
10.0 32.0 32.9 33.7 34.6 35.6 36.6 37.7 38.8 39.9 41.0 42.0 43.1 43.9 44.8 45.6 46.2 46.5 46.9 46.9 46.9 46.5 46.2 45.6 44.8 43.9 43.1 42.0 41.0 39.9 38.8 37.7 36.6 35.6 34.6 33.7 32.9 32.0 31.5 30.6 29.7 28.9 28.1 27.4 26.7 26.0 25.3 24.7 24.1 23.6 23.1 22.7 22.4 22.1 21.9 21.9 21.9 22.1 22.4 22.7 23.1 23.6 24.1 24.7 25.3 26.0 26.7 27.4 28.1 28.9 29.7 30.6 31.5
15.0 39.9 41.2 42.1 43.0 43.9 45.0 46.4 48.2 49.9 52.1 54.2 56.2 58.0 59.7 61.0 62.0 62.7 63.1 63.2 63.1 62.7 62.0 61.0 59.7 58.0 56.2 54.2 52.1 49.9 48.2 46.4 45.0 43.9 43.0 42.1 41.2 39.9 39.5 38.4 37.3 36.2 35.0 33.9 32.7 31.6 30.5 29.5 28.5 27.7 27.1 26.6 26.1 25.9 25.6 25.6 25.6 25.9 26.1 26.6 27.1 27.7 28.5 29.5 30.5 31.6 32.7 33.9 35.0 36.2 37.3 38.4 39.5
20.0 50.5 52.2 53.2 54.1 54.3 54.8 55.8 58.0 61.0 64.7 68.0 71.1 73.6 75.8 77.3 78.4 79.1 79.4 79.6 79.4 79.1 78.4 77.3 75.8 73.6 71.1 68.0 64.7 61.0 58.0 55.8 54.8 54.3 54.1 53.2 52.2 50.5 49.8 48.5 47.0 45.6 44.0 42.5 40.7 39.1 37.5 36.1 35.0 34.1 33.3 32.9 32.6 32.4 32.1 32.1 32.1 32.4 32.6 32.9 33.3 34.1 35.0 36.1 37.5 39.1 40.7 42.5 44.0 45.6 47.0 48.5 49.8
25.0 61.8 64.0 65.3 65.9 65.8 64.9 64.9 66.8 71.2 76.3 80.9 84.6 87.5 89.6 91.2 92.4 93.0 93.4 93.4 93.4 93.0 92.4 91.2 89.6 87.5 84.6 80.9 76.3 71.2 66.8 64.9 64.9 65.8 65.9 65.3 64.0 61.8 60.8 59.1 57.3 55.6 53.6 51.7 49.5 47.6 45.5 43.5 42.0 41.1 40.6 40.6 40.2 40.0 39.6 39.5 39.6 40.0 40.2 40.6 40.6 41.1 42.0 43.5 45.5 47.6 49.5 51.7 53.6 55.6 57.3 59.1 60.8
30.0 73.4 76.0 77.3 77.8 77.2 75.1 72.6 72.7 77.1 83.7 89.8 94.1 97.3 99.4 101 102 104 104 104 104 104 102 101 99.4 97.3 94.1 89.8 83.7 77.1 72.7 72.6 75.1 77.2 77.8 77.3 76.0 73.4 72.5 70.3 67.9 65.8 63.2 60.9 58.4 55.8 52.8 50.3 48.6 47.9 47.7 48.1 48.0 47.9 47.6 47.6 47.6 47.9 48.0 48.1 47.7 47.9 48.6 50.3 52.8 55.8 58.4 60.9 63.2 65.8 67.9 70.3 72.5
35.0 83.6 85.8 86.5 86.5 85.3 82.6 78.5 76.3 78.7 85.7 94.5 100 104 106 109 110 112 113 113 113 112 110 109 106 104 100 94.5 85.7 78.7 76.3 78.5 82.6 85.3 86.5 86.5 85.8 83.6 83.1 81.0 78.2 75.8 73.0 70.3 67.1 63.8 59.4 56.1 54.4 54.0 54.6 54.9 55.1 55.4 55.3 55.5 55.3 55.4 55.1 54.9 54.6 54.0 54.4 56.1 59.4 63.8 67.1 70.3 73.0 75.8 78.2 81.0 83.1
40.0 87.7 89.2 89.3 88.8 87.8 85.3 81.0 77.5 77.3 83.5 95.6 102 105 108 111 112 114 115 115 115 114 112 111 108 105 102 95.6 83.5 77.3 77.5 81.0 85.3 87.8 88.8 89.3 89.2 87.7 87.9 86.3 84.1 82.2 80.2 77.8 74.7 71.1 65.2 61.0 59.3 60.3 62.0 62.8 62.8 63.2 63.4 63.7 63.4 63.2 62.8 62.8 62.0 60.3 59.3 61.0 65.2 71.1 74.7 77.8 80.2 82.2 84.1 86.3 87.9
45.0 84.7 86.2 86.2 85.9 85.3 83.3 79.6 75.7 73.5 78.0 92.5 98.0 101 104 106 107 108 109 109 109 108 107 106 104 101 98.0 92.5 78.0 73.5 75.7 79.6 83.3 85.3 85.9 86.2 86.2 84.7 85.3 84.0 82.2 80.5 79.2 77.2 75.0 71.7 65.4 60.8 60.4 64.0 67.0 68.6 69.2 70.1 70.9 71.3 70.9 70.1 69.2 68.6 67.0 64.0 60.4 60.8 65.4 71.7 75.0 77.2 79.2 80.5 82.2 84.0 85.3
50.0 77.8 79.4 79.5 79.3 78.7 76.9 73.4 69.1 66.8 70.5 83.9 88.5 91.5 93.5 95.1 96.0 96.8 97.1 97.2 97.1 96.8 96.0 95.1 93.5 91.5 88.5 83.9 70.5 66.8 69.1 73.4 76.9 78.7 79.3 79.5 79.4 77.8 78.3 77.1 75.6 73.9 72.6 70.9 68.8 65.9 60.1 56.2 56.5 60.2 63.1 64.6 65.6 66.5 67.6 67.8 67.6 66.5 65.6 64.6 63.1 60.2 56.5 56.2 60.1 65.9 68.8 70.9 72.6 73.9 75.6 77.1 78.3
55.0 68.4 69.9 69.9 69.6 69.0 67.3 64.0 59.5 57.9 62.2 72.2 76.3 78.7 80.5 81.8 82.7 83.7 84.0 84.1 84.0 83.7 82.7 81.8 80.5 78.7 76.3 72.2 62.2 57.9 59.5 64.0 67.3 69.0 69.6 69.9 69.9 68.4 68.7 67.6 66.3 64.8 63.5 61.8 60.1 57.4 52.6 49.3 49.6 52.7 55.0 56.2 57.2 58.1 59.0 59.2 59.0 58.1 57.2 56.2 55.0 52.7 49.6 49.3 52.6 57.4 60.1 61.8 63.5 64.8 66.3 67.6 68.7
60.0 57.9 59.4 59.6 59.4 58.9 57.6 54.8 50.4 49.0 54.0 61.4 65.0 67.1 68.5 69.7 70.6 71.4 71.7 71.8 71.7 71.4 70.6 69.7 68.5 67.1 65.0 61.4 54.0 49.0 50.4 54.8 57.6 58.9 59.4 59.6 59.4 57.9 58.0 57.1 56.0 54.5 53.2 51.7 50.1 47.7 44.2 41.1 41.4 43.8 45.6 46.5 47.5 48.2 48.7 48.9 48.7 48.2 47.5 46.5 45.6 43.8 41.4 41.1 44.2 47.7 50.1 51.7 53.2 54.5 56.0 57.1 58.0
65.0 47.9 49.3 49.8 49.9 49.6 48.8 46.6 42.6 40.7 45.5 51.8 55.0 56.8 58.0 59.1 60.0 60.7 60.9 61.0 60.9 60.7 60.0 59.1 58.0 56.8 55.0 51.8 45.5 40.7 42.6 46.6 48.8 49.6 49.9 49.8 49.3 47.9 47.8 46.9 45.8 44.3 43.1 41.8 40.3 38.3 35.6 33.1 33.3 34.9 36.2 36.8 37.7 38.2 38.5 38.5 38.5 38.2 37.7 36.8 36.2 34.9 33.3 33.1 35.6 38.3 40.3 41.8 43.1 44.3 45.8 46.9 47.8
70.0 38.3 39.8 40.4 40.6 40.6 40.2 38.6 35.3 33.0 37.0 42.7 45.5 47.1 48.1 49.1 49.8 50.5 50.7 50.7 50.7 50.5 49.8 49.1 48.1 47.1 45.5 42.7 37.0 33.0 35.3 38.6 40.2 40.6 40.6 40.4 39.8 38.3 38.1 37.2 36.1 34.7 33.5 32.4 31.0 29.3 27.2 25.5 25.6 26.7 27.4 27.8 28.5 29.0 29.1 29.0 29.1 29.0 28.5 27.8 27.4 26.7 25.6 25.5 27.2 29.3 31.0 32.4 33.5 34.7 36.1 37.2 38.1
75.0 29.2 30.5 31.3 31.7 31.9 31.8 30.9 28.2 25.7 28.8 34.0 36.5 37.9 38.7 39.5 40.2 40.8 40.9 40.9 40.9 40.8 40.2 39.5 38.7 37.9 36.5 34.0 28.8 25.7 28.2 30.9 31.8 31.9 31.7 31.3 30.5 29.2 28.8 28.0 27.1 25.9 24.8 23.8 22.7 21.3 19.5 18.7 18.9 19.4 19.8 20.2 20.7 21.1 21.1 21.0 21.1 21.1 20.7 20.2 19.8 19.4 18.9 18.7 19.5 21.3 22.7 23.8 24.8 25.9 27.1 28.0 28.8
80.0 21.2 22.3 23.0 23.5 23.8 24.0 23.7 21.9 19.1 21.3 26.0 28.1 29.3 29.9 30.7 31.2 31.6 31.8 31.8 31.8 31.6 31.2 30.7 29.9 29.3 28.1 26.0 21.3 19.1 21.9 23.7 24.0 23.8 23.5 23.0 22.3 21.2 20.8 20.1 19.3 18.4 17.5 16.7 16.0 14.9 13.2 13.1 13.6 13.9 14.1 14.4 14.8 15.0 15.0 15.0 15.0 15.0 14.8 14.4 14.1 13.9 13.6 13.1 13.2 14.9 16.0 16.7 17.5 18.4 19.3 20.1 20.8
85.0 14.6 15.5 16.1 16.5 16.9 17.2 17.2 16.1 13.4 14.6 18.7 20.5 21.4 22.0 22.6 23.1 23.3 23.5 23.5 23.5 23.3 23.1 22.6 22.0 21.4 20.5 18.7 14.6 13.4 16.1 17.2 17.2 16.9 16.5 16.1 15.5 14.6 14.2 13.8 13.2 12.6 11.9 11.5 11.0 10.1 8.7 9.0 9.6 9.9 10.0 10.2 10.4 10.6 10.6 10.5 10.6 10.6 10.4 10.2 10.0 9.9 9.6 9.0 8.7 10.1 11.0 11.5 11.9 12.6 13.2 13.8 14.2
90.0 9.9 10.5 10.9 11.2 11.4 11.6 11.8 11.2 9.0 9.1 12.5 13.9 14.7 15.1 15.6 16.0 16.3 16.3 16.4 16.3 16.3 16.0 15.6 15.1 14.7 13.9 12.5 9.1 9.0 11.2 11.8 11.6 11.4 11.2 10.9 10.5 9.9 9.6 9.3 9.0 8.6 8.2 7.8 7.5 6.9 5.7 6.2 6.8 7.0 7.1 7.3 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.3 7.1 7.0 6.8 6.2 5.7 6.9 7.5 7.8 8.2 8.6 9.0 9.3 9.6
95.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
105.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
115.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
125.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
135.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
145.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
155.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
