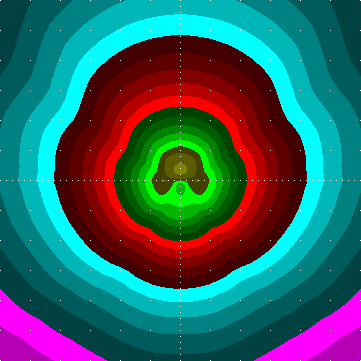

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] CE07I07S.LDT
# [LUMINAIRE] CENTURY-RA
# [LUMCAT] Century
# [DATE] 28/11/2012/
# down given: 99%
# out given: 30.7%
# tilt: 0.0
# [LAMP] 1 MT 70 7300 3000 G12
# Bulbs: 1, 7300 lm each
# Source file: Century_CEN-RA_1_MT_70_7300_3000_G12.ldt
# Luminaire flux = 307 raw, for the given bulb(s) it would be 2240 lm,
# 30.7 % of the bulb flux
# between 75 and 90: 10.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 35.4 cd / 1000 lm , 5.7 % of the luminaire flux
# 90deg and above: max 18.0 cd / 1000 lm , 0.8 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 35 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 171 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 66 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 56 cd / 1000 lm,
# maximum spec. lum. intensity 135 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1 37.1
5.0 38.3 39.8 41.4 43.1 44.8 46.8 48.0 49.5 50.8 52.5 53.3 54.4 55.7 56.5 57.1 57.7 58.1 58.1 58.1 58.1 58.1 57.7 57.1 56.5 55.7 54.4 53.3 52.5 50.8 49.5 48.0 46.8 44.8 43.1 41.4 39.8 38.3 36.1 34.2 32.0 30.4 28.4 26.7 25.7 24.6 23.6 22.5 21.6 21.1 20.6 20.2 20.0 19.7 19.5 19.3 19.5 19.7 20.0 20.2 20.6 21.1 21.6 22.5 23.6 24.6 25.7 26.7 28.4 30.4 32.0 34.2 36.1
10.0 41.2 43.4 46.2 49.4 53.0 55.9 59.0 62.5 64.8 67.5 69.9 70.5 73.4 74.5 75.7 77.1 77.5 77.5 77.2 77.5 77.5 77.1 75.7 74.5 73.4 70.5 69.9 67.5 64.8 62.5 59.0 55.9 53.0 49.4 46.2 43.4 41.2 37.3 34.1 31.7 29.1 27.2 25.4 23.9 22.5 21.3 20.0 18.8 18.1 17.5 16.8 16.5 16.0 15.8 15.7 15.8 16.0 16.5 16.8 17.5 18.1 18.8 20.0 21.3 22.5 23.9 25.4 27.2 29.1 31.7 34.1 37.3
15.0 46.8 47.3 50.5 54.5 58.9 63.3 67.9 73.0 77.0 80.1 82.8 85.0 88.5 90.7 92.3 94.0 93.8 94.1 95.0 94.1 93.8 94.0 92.3 90.7 88.5 85.0 82.8 80.1 77.0 73.0 67.9 63.3 58.9 54.5 50.5 47.3 46.8 43.0 40.7 39.0 36.4 33.7 31.9 29.6 27.6 25.6 23.9 22.0 20.6 19.4 18.5 18.0 17.3 16.9 16.7 16.9 17.3 18.0 18.5 19.4 20.6 22.0 23.9 25.6 27.6 29.6 31.9 33.7 36.4 39.0 40.7 43.0
20.0 58.0 55.6 56.7 59.7 63.8 69.0 74.7 80.0 85.4 90.3 94.0 96.0 99.8 102 104 105 106 106 107 106 106 105 104 102 99.8 96.0 94.0 90.3 85.4 80.0 74.7 69.0 63.8 59.7 56.7 55.6 58.0 54.6 52.9 50.5 47.6 44.2 41.1 37.9 34.8 31.8 29.3 26.8 25.2 24.0 22.8 21.9 21.1 20.8 20.5 20.8 21.1 21.9 22.8 24.0 25.2 26.8 29.3 31.8 34.8 37.9 41.1 44.2 47.6 50.5 52.9 54.6
25.0 71.2 66.6 65.0 65.3 67.9 71.6 78.5 84.9 90.6 96.5 100 103 107 109 112 112 113 114 115 114 113 112 112 109 107 103 100 96.5 90.6 84.9 78.5 71.6 67.9 65.3 65.0 66.6 71.2 67.0 64.6 62.4 58.5 53.9 50.4 46.7 42.7 38.8 36.0 32.7 30.9 29.0 28.2 27.5 26.4 26.1 26.0 26.1 26.4 27.5 28.2 29.0 30.9 32.7 36.0 38.8 42.7 46.7 50.4 53.9 58.5 62.4 64.6 67.0
30.0 82.8 76.3 73.1 70.7 71.2 73.3 79.2 86.0 92.1 98.9 104 108 113 116 117 120 122 123 124 123 122 120 117 116 113 108 104 98.9 92.1 86.0 79.2 73.3 71.2 70.7 73.1 76.3 82.8 77.2 75.1 72.6 68.6 63.8 59.6 55.4 50.7 46.8 42.1 38.4 36.3 34.1 34.0 33.6 33.0 32.6 32.7 32.6 33.0 33.6 34.0 34.1 36.3 38.4 42.1 46.8 50.7 55.4 59.6 63.8 68.6 72.6 75.1 77.2
35.0 88.6 82.0 78.2 75.5 72.9 73.4 78.7 85.5 90.8 98.6 108 112 119 123 125 129 130 134 135 134 130 129 125 123 119 112 108 98.6 90.8 85.5 78.7 73.4 72.9 75.5 78.2 82.0 88.6 83.5 82.4 79.4 75.7 72.0 68.2 63.9 58.6 53.6 48.4 43.6 41.6 39.9 39.5 39.6 39.4 39.7 39.7 39.7 39.4 39.6 39.5 39.9 41.6 43.6 48.4 53.6 58.6 63.9 68.2 72.0 75.7 79.4 82.4 83.5
40.0 90.5 83.4 79.9 76.8 72.7 71.9 76.8 83.1 87.5 95.3 107 113 119 123 127 129 130 133 135 133 130 129 127 123 119 113 107 95.3 87.5 83.1 76.8 71.9 72.7 76.8 79.9 83.4 90.5 85.4 83.4 81.5 79.2 76.3 73.7 70.4 65.6 60.7 54.7 48.9 45.2 44.5 44.6 45.0 45.0 45.9 46.2 45.9 45.0 45.0 44.6 44.5 45.2 48.9 54.7 60.7 65.6 70.4 73.7 76.3 79.2 81.5 83.4 85.4
45.0 86.1 79.5 76.5 73.8 68.9 67.6 69.9 76.4 80.8 87.1 97.5 102 108 111 115 119 120 121 123 121 120 119 115 111 108 102 97.5 87.1 80.8 76.4 69.9 67.6 68.9 73.8 76.5 79.5 86.1 80.8 78.9 78.2 76.1 74.7 72.8 71.7 68.5 63.8 58.5 52.0 48.2 48.6 50.3 51.0 51.2 52.2 52.4 52.2 51.2 51.0 50.3 48.6 48.2 52.0 58.5 63.8 68.5 71.7 72.8 74.7 76.1 78.2 78.9 80.8
50.0 78.0 72.2 70.8 68.1 63.2 60.4 61.7 66.8 72.6 78.4 85.5 89.2 93.1 95.7 98.8 102 103 105 107 105 103 102 98.8 95.7 93.1 89.2 85.5 78.4 72.6 66.8 61.7 60.4 63.2 68.1 70.8 72.2 78.0 74.0 72.1 71.5 69.6 68.4 67.3 66.0 63.9 60.9 55.8 49.4 48.6 52.4 55.3 57.0 57.9 59.1 59.3 59.1 57.9 57.0 55.3 52.4 48.6 49.4 55.8 60.9 63.9 66.0 67.3 68.4 69.6 71.5 72.1 74.0
55.0 68.6 64.4 63.1 61.3 57.3 53.0 53.2 58.2 63.6 68.8 75.1 77.9 81.6 83.1 85.3 87.5 87.9 89.1 90.3 89.1 87.9 87.5 85.3 83.1 81.6 77.9 75.1 68.8 63.6 58.2 53.2 53.0 57.3 61.3 63.1 64.4 68.6 64.6 63.5 62.6 60.8 59.2 58.1 57.7 55.3 52.9 48.7 43.0 43.1 47.3 50.2 52.3 53.1 54.4 54.6 54.4 53.1 52.3 50.2 47.3 43.1 43.0 48.7 52.9 55.3 57.7 58.1 59.2 60.8 62.6 63.5 64.6
60.0 59.1 55.7 55.4 53.9 50.9 46.6 45.8 50.0 54.8 60.3 65.7 67.9 70.5 72.6 74.0 75.5 75.8 76.8 77.6 76.8 75.8 75.5 74.0 72.6 70.5 67.9 65.7 60.3 54.8 50.0 45.8 46.6 50.9 53.9 55.4 55.7 59.1 55.2 53.6 53.2 51.2 49.5 48.3 48.0 45.9 43.6 40.0 35.2 35.4 39.0 41.0 43.3 43.7 44.5 44.7 44.5 43.7 43.3 41.0 39.0 35.4 35.2 40.0 43.6 45.9 48.0 48.3 49.5 51.2 53.2 53.6 55.2
65.0 48.9 46.8 46.6 46.0 43.8 40.3 38.7 41.6 46.5 51.8 55.6 58.7 61.2 62.6 63.6 64.5 65.3 66.0 66.1 66.0 65.3 64.5 63.6 62.6 61.2 58.7 55.6 51.8 46.5 41.6 38.7 40.3 43.8 46.0 46.6 46.8 48.9 45.2 44.3 43.6 41.7 40.2 38.9 37.9 36.1 34.7 31.7 27.6 28.0 30.4 31.9 32.9 33.3 33.8 34.0 33.8 33.3 32.9 31.9 30.4 28.0 27.6 31.7 34.7 36.1 37.9 38.9 40.2 41.7 43.6 44.3 45.2
70.0 38.8 37.5 38.1 37.7 36.8 34.0 32.1 33.6 38.0 42.5 46.9 48.6 51.1 52.2 53.6 54.3 54.7 55.4 55.6 55.4 54.7 54.3 53.6 52.2 51.1 48.6 46.9 42.5 38.0 33.6 32.1 34.0 36.8 37.7 38.1 37.5 38.8 35.7 34.5 33.7 31.9 30.6 29.4 28.3 27.0 25.3 23.5 20.7 20.6 22.0 22.9 23.8 24.0 24.3 24.3 24.3 24.0 23.8 22.9 22.0 20.6 20.7 23.5 25.3 27.0 28.3 29.4 30.6 31.9 33.7 34.5 35.7
75.0 29.0 28.5 29.4 29.4 29.2 27.3 25.4 26.4 29.7 33.7 37.5 39.5 41.1 42.3 43.7 44.1 44.5 44.9 44.9 44.9 44.5 44.1 43.7 42.3 41.1 39.5 37.5 33.7 29.7 26.4 25.4 27.3 29.2 29.4 29.4 28.5 29.0 26.9 25.6 24.4 23.1 21.6 20.5 19.4 18.4 17.1 15.9 14.3 13.9 14.6 14.9 15.6 15.7 15.9 15.7 15.9 15.7 15.6 14.9 14.6 13.9 14.3 15.9 17.1 18.4 19.4 20.5 21.6 23.1 24.4 25.6 26.9
80.0 20.2 19.9 20.8 21.5 21.7 20.7 19.4 19.3 21.7 25.1 28.5 30.1 31.7 32.7 33.8 34.4 34.8 35.1 35.4 35.1 34.8 34.4 33.8 32.7 31.7 30.1 28.5 25.1 21.7 19.3 19.4 20.7 21.7 21.5 20.8 19.9 20.2 18.5 17.5 16.4 15.2 14.0 13.2 12.5 11.6 10.5 10.1 9.5 9.4 9.5 9.8 10.2 10.4 10.4 10.2 10.4 10.4 10.2 9.8 9.5 9.4 9.5 10.1 10.5 11.6 12.5 13.2 14.0 15.2 16.4 17.5 18.5
85.0 13.2 12.8 13.7 14.3 15.0 14.8 13.8 13.4 14.5 17.1 20.3 21.8 23.0 23.9 24.7 25.7 26.0 26.2 26.4 26.2 26.0 25.7 24.7 23.9 23.0 21.8 20.3 17.1 14.5 13.4 13.8 14.8 15.0 14.3 13.7 12.8 13.2 11.7 10.9 10.3 9.4 8.7 8.2 7.8 7.2 6.4 6.4 6.4 6.6 6.6 6.8 7.1 7.3 7.3 7.3 7.3 7.3 7.1 6.8 6.6 6.6 6.4 6.4 6.4 7.2 7.8 8.2 8.7 9.4 10.3 10.9 11.7
90.0 8.3 8.0 8.5 9.1 9.4 9.6 9.3 8.7 8.8 10.4 12.9 14.2 15.3 16.0 16.7 17.4 17.8 17.8 18.0 17.8 17.8 17.4 16.7 16.0 15.3 14.2 12.9 10.4 8.8 8.7 9.3 9.6 9.4 9.1 8.5 8.0 8.3 7.4 6.9 6.5 6.1 5.7 5.5 5.2 4.9 4.4 4.5 4.7 4.9 5.0 5.3 5.5 5.6 5.6 5.6 5.6 5.6 5.5 5.3 5.0 4.9 4.7 4.5 4.4 4.9 5.2 5.5 5.7 6.1 6.5 6.9 7.4
95.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
105.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
115.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
125.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
135.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
145.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
155.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
