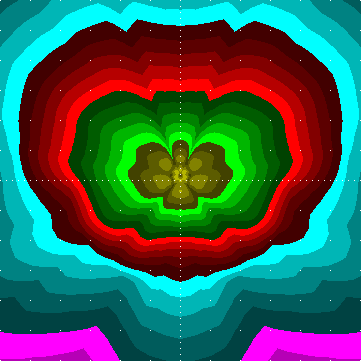

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] FR15S00N
# [LUMINAIRE] CL175 VECTRA 150W SHPT PC CLAIR
# [LUMCAT] FR15S00N
# [DATE] 27/11/2012/2007
# down given: 100%
# out given: 68.8%
# tilt: 0.0
# [LAMP] ST-150/E40
# Bulbs: 1, 15000 lm each
# Source file: Beaugency_CL175-CLEAR-VECTRA1-_1_ST_150_17500_1950_E40.ldt
# Luminaire flux = 688 raw, for the given bulb(s) it would be 10324 lm,
# 68.8 % of the bulb flux
# between 75 and 90: 9.1 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 90.6 cd / 1000 lm , 3.5 % of the luminaire flux
# 90deg and above: max 24.7 cd / 1000 lm , 0.4 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 18 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 91 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 306 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 310 cd / 1000 lm,
# maximum spec. lum. intensity 310 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152 152
5.0 117 120 126 126 127 129 130 131 131 130 123 114 103 102 98.0 97.0 102 102 107 102 102 97.0 98.0 102 103 114 123 130 131 131 130 129 127 126 126 120 117 113 113 114 117 118 118 118 118 116 114 114 112 111 112 111 113 111 108 111 113 111 112 111 112 114 114 116 118 118 118 118 117 114 113 113
10.0 134 143 150 156 165 166 160 161 159 152 146 145 143 134 95.7 60.1 47.7 39.5 35.2 39.5 47.7 60.1 95.7 134 143 145 146 152 159 161 160 166 165 156 150 143 134 124 119 112 99.8 82.6 71.0 73.0 84.5 92.9 90.2 94.6 94.5 99.8 102 104 101 98.4 104 98.4 101 104 102 99.8 94.5 94.6 90.2 92.9 84.5 73.0 71.0 82.6 99.8 112 119 124
15.0 60.3 52.9 49.4 66.4 93.1 114 130 136 135 137 137 140 152 167 180 170 127 128 127 128 127 170 180 167 152 140 137 137 135 136 130 114 93.1 66.4 49.4 52.9 60.3 64.0 65.3 58.9 55.7 49.2 43.9 51.5 65.8 84.4 104 111 119 116 119 125 132 133 132 133 132 125 119 116 119 111 104 84.4 65.8 51.5 43.9 49.2 55.7 58.9 65.3 64.0
20.0 137 124 110 84.8 63.6 45.3 40.0 51.7 86.0 104 124 160 169 166 167 147 146 176 184 176 146 147 167 166 169 160 124 104 86.0 51.7 40.0 45.3 63.6 84.8 110 124 137 140 138 127 108 90.4 75.2 60.8 55.8 69.0 94.4 122 134 138 141 144 155 160 158 160 155 144 141 138 134 122 94.4 69.0 55.8 60.8 75.2 90.4 108 127 138 140
25.0 158 147 144 129 104 87.7 85.4 84.0 84.6 78.6 70.6 61.5 67.7 88.2 112 97.1 86.2 121 121 121 86.2 97.1 112 88.2 67.7 61.5 70.6 78.6 84.6 84.0 85.4 87.7 104 129 144 147 158 154 150 143 128 103 90.0 69.8 55.1 63.2 82.9 111 127 129 134 137 144 147 143 147 144 137 134 129 127 111 82.9 63.2 55.1 69.8 90.0 103 128 143 150 154
30.0 164 158 155 140 115 104 107 132 159 168 166 154 124 81.6 60.7 78.7 105 108 107 108 105 78.7 60.7 81.6 124 154 166 168 159 132 107 104 115 140 155 158 164 165 162 158 151 134 110 83.7 64.1 64.5 80.2 106 121 121 123 124 130 129 124 129 130 124 123 121 121 106 80.2 64.5 64.1 83.7 110 134 151 158 162 165
35.0 173 174 175 153 132 116 125 162 191 189 187 184 172 120 63.6 93.4 161 176 169 176 161 93.4 63.6 120 172 184 187 189 191 162 125 116 132 153 175 174 173 168 170 166 160 143 118 93.4 70.7 69.1 80.2 103 115 116 114 115 117 115 111 115 117 115 114 116 115 103 80.2 69.1 70.7 93.4 118 143 160 166 170 168
40.0 188 191 187 163 140 135 139 179 206 206 201 200 183 129 59.6 99.0 167 183 192 183 167 99.0 59.6 129 183 200 201 206 206 179 139 135 140 163 187 191 188 176 175 165 156 139 115 88.9 69.9 67.3 79.5 99.7 111 108 103 101 101 98.5 96.0 98.5 101 101 103 108 111 99.7 79.5 67.3 69.9 88.9 115 139 156 165 175 176
45.0 202 208 210 179 157 160 167 197 214 214 207 197 171 125 51.6 101 155 162 177 162 155 101 51.6 125 171 197 207 214 214 197 167 160 157 179 210 208 202 186 179 169 158 141 116 89.0 67.5 63.0 72.7 92.6 103 97.8 90.6 86.6 85.9 83.6 81.9 83.6 85.9 86.6 90.6 97.8 103 92.6 72.7 63.0 67.5 89.0 116 141 158 169 179 186
50.0 215 223 224 205 178 187 200 229 232 218 208 189 161 121 60.9 110 141 152 157 152 141 110 60.9 121 161 189 208 218 232 229 200 187 178 205 224 223 215 194 191 177 169 150 123 92.2 66.7 60.0 65.6 82.6 90.8 84.1 76.6 71.9 71.8 71.8 71.7 71.8 71.8 71.9 76.6 84.1 90.8 82.6 65.6 60.0 66.7 92.2 123 150 169 177 191 194
55.0 225 243 245 223 200 203 220 252 244 226 213 195 166 117 65.8 114 138 148 144 148 138 114 65.8 117 166 195 213 226 244 252 220 203 200 223 245 243 225 199 189 174 164 146 119 89.4 65.0 56.4 58.8 72.0 76.7 70.2 63.0 58.2 59.2 60.5 57.6 60.5 59.2 58.2 63.0 70.2 76.7 72.0 58.8 56.4 65.0 89.4 119 146 164 174 189 199
60.0 234 260 272 244 231 230 248 279 268 245 232 210 174 116 71.5 116 128 137 138 137 128 116 71.5 116 174 210 232 245 268 279 248 230 231 244 272 260 234 205 188 167 154 139 117 87.0 64.2 53.2 55.5 63.8 63.8 56.3 48.1 41.8 38.9 36.8 36.9 36.8 38.9 41.8 48.1 56.3 63.8 63.8 55.5 53.2 64.2 87.0 117 139 154 167 188 205
65.0 234 266 283 259 253 261 288 306 279 255 240 214 171 120 79.5 117 121 125 121 125 121 117 79.5 120 171 214 240 255 279 306 288 261 253 259 283 266 234 203 186 164 155 143 118 86.4 64.4 49.1 49.8 57.8 55.0 43.9 32.6 29.5 23.5 21.7 21.2 21.7 23.5 29.5 32.6 43.9 55.0 57.8 49.8 49.1 64.4 86.4 118 143 155 164 186 203
70.0 216 242 259 237 245 259 293 310 284 251 221 202 164 110 85.8 118 110 108 101 108 110 118 85.8 110 164 202 221 251 284 310 293 259 245 237 259 242 216 186 170 154 149 141 115 84.6 59.9 37.4 30.0 33.3 30.5 23.8 18.4 15.8 13.2 14.1 15.3 14.1 13.2 15.8 18.4 23.8 30.5 33.3 30.0 37.4 59.9 84.6 115 141 149 154 170 186
75.0 105 164 204 192 196 212 250 258 243 215 190 172 134 97.6 73.1 94.0 83.7 81.2 74.1 81.2 83.7 94.0 73.1 97.6 134 172 190 215 243 258 250 212 196 192 204 164 105 61.3 42.4 34.7 35.3 32.9 26.4 18.6 17.3 14.2 11.0 8.6 6.6 7.0 9.0 11.8 11.1 12.7 13.2 12.7 11.1 11.8 9.0 7.0 6.6 8.6 11.0 14.2 17.3 18.6 26.4 32.9 35.3 34.7 42.4 61.3
80.0 29.2 32.6 41.9 50.4 64.6 72.6 82.3 90.6 86.2 82.3 76.8 79.8 74.4 70.3 44.8 55.7 45.9 39.8 39.1 39.8 45.9 55.7 44.8 70.3 74.4 79.8 76.8 82.3 86.2 90.6 82.3 72.6 64.6 50.4 41.9 32.6 29.2 28.3 27.5 25.1 29.9 30.1 24.3 16.1 16.2 12.9 9.7 7.7 5.8 6.5 7.9 10.1 11.1 11.6 12.3 11.6 11.1 10.1 7.9 6.5 5.8 7.7 9.7 12.9 16.2 16.1 24.3 30.1 29.9 25.1 27.5 28.3
85.0 10.7 6.0 5.7 6.7 8.9 8.1 10.9 15.0 17.1 19.3 16.6 20.6 23.4 20.1 15.7 12.6 10.9 8.3 7.3 8.3 10.9 12.6 15.7 20.1 23.4 20.6 16.6 19.3 17.1 15.0 10.9 8.1 8.9 6.7 5.7 6.0 10.7 15.9 18.9 18.9 25.2 26.2 23.4 16.0 15.3 11.9 9.1 6.7 5.0 5.8 7.4 9.1 9.3 9.6 10.8 9.6 9.3 9.1 7.4 5.8 5.0 6.7 9.1 11.9 15.3 16.0 23.4 26.2 25.2 18.9 18.9 15.9
90.0 9.4 6.1 4.6 5.5 6.2 5.2 8.5 10.1 11.5 12.9 11.7 13.5 13.6 12.1 9.1 7.2 6.1 4.3 3.7 4.3 6.1 7.2 9.1 12.1 13.6 13.5 11.7 12.9 11.5 10.1 8.5 5.2 6.2 5.5 4.6 6.1 9.4 13.9 16.0 16.6 22.7 24.7 24.1 17.2 14.5 11.5 8.5 6.6 5.0 6.3 8.0 8.2 8.4 9.2 9.2 9.2 8.4 8.2 8.0 6.3 5.0 6.6 8.5 11.5 14.5 17.2 24.1 24.7 22.7 16.6 16.0 13.9
95.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
105.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
115.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
125.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
135.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
145.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
155.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
165.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
175.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
