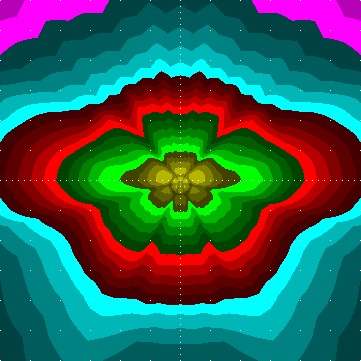

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] CL165-EXACT-CNN-J
# [LUMCAT] Beaugency
# [DATE] 19/07/2012/
# down given: 96%
# out given: 66.9%
# tilt: 0.0
# [LAMP] 1 MT 140 16500 2800 PGZ12
# Bulbs: 1, 16500 lm each
# Source file: Beaugency_CL165-CLEAR-EXACT-CNN-J_1_MT_140_16500_2800_PGZ12.ldt
# Luminaire flux = 669 raw, for the given bulb(s) it would be 11039 lm,
# 66.9 % of the bulb flux
# between 75 and 90: 7.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 118.0 cd / 1000 lm , 6.5 % of the luminaire flux
# 90deg and above: max 30.4 cd / 1000 lm , 3.8 % of the luminaire flux
# CutOff Type: IES_Semi-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 81 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 284 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 403 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 510 cd / 1000 lm,
# maximum spec. lum. intensity 510 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159 159
2.5 149 140 156 152 165 162 171 165 176 166 184 168 183 174 190 178 195 179 178 179 195 178 190 174 183 168 184 166 176 165 171 162 165 152 156 140 149 131 136 123 129 116 129 109 110 119 104 110 103 110 107 107 107 108 110 108 107 107 107 110 103 110 104 119 110 109 129 116 129 123 136 131
5.0 125 115 121 117 130 133 149 146 166 160 180 160 177 158 184 160 195 164 175 164 195 160 184 158 177 160 180 160 166 146 149 133 130 117 121 115 125 122 133 125 136 124 126 113 107 86.8 102 81.5 97.7 92.4 125 113 154 113 147 113 154 113 125 92.4 97.7 81.5 102 86.8 107 113 126 124 136 125 133 122
7.5 168 152 153 129 128 114 124 116 143 133 162 128 147 120 142 115 148 114 130 114 148 115 142 120 147 128 162 133 143 116 124 114 128 129 153 152 168 163 175 166 174 166 157 143 132 105 93.3 87.2 86.8 106 110 127 144 141 146 141 144 127 110 106 86.8 87.2 93.3 105 132 143 157 166 174 166 175 163
10.0 181 171 163 156 148 126 113 88.8 85.3 75.0 118 95.0 109 95.5 107 108 115 120 110 120 115 108 107 95.5 109 95.0 118 75.0 85.3 88.8 113 126 148 156 163 171 181 177 188 176 183 160 144 111 102 89.5 112 89.4 115 89.0 97.5 83.2 82.9 95.4 101 95.4 82.9 83.2 97.5 89.0 115 89.4 112 89.5 102 111 144 160 183 176 188 177
12.5 163 139 138 119 112 107 92.5 89.8 83.8 75.8 85.1 97.8 109 131 138 156 159 164 153 164 159 156 138 131 109 97.8 85.1 75.8 83.8 89.8 92.5 107 112 119 138 139 163 161 176 169 162 136 115 93.6 116 110 149 137 150 122 107 77.7 97.7 91.4 116 91.4 97.7 77.7 107 122 150 137 149 110 116 93.6 115 136 162 169 176 161
15.0 108 104 106 112 111 110 107 89.0 90.5 86.6 101 125 151 169 189 178 199 175 179 175 199 178 189 169 151 125 101 86.6 90.5 89.0 107 110 111 112 106 104 108 118 128 129 138 113 99.8 105 136 137 153 137 143 118 101 80.4 112 125 126 125 112 80.4 101 118 143 137 153 137 136 105 99.8 113 138 129 128 118
17.5 119 137 153 152 169 159 158 123 105 92.6 117 134 170 170 192 173 200 168 174 168 200 173 192 170 170 134 117 92.6 105 123 158 159 169 152 153 137 119 107 88.3 81.2 77.7 66.1 95.8 104 136 139 140 128 131 104 88.3 77.9 118 121 121 121 118 77.9 88.3 104 131 128 140 139 136 104 95.8 66.1 77.7 81.2 88.3 107
20.0 173 182 198 194 206 188 186 144 115 89.0 117 132 169 160 180 166 189 163 170 163 189 166 180 160 169 132 117 89.0 115 144 186 188 206 194 198 182 173 140 108 79.0 56.8 56.8 65.9 80.6 97.6 107 96.7 106 107 102 90.5 78.0 119 116 116 116 119 78.0 90.5 102 107 106 96.7 107 97.6 80.6 65.9 56.8 56.8 79.0 108 140
22.5 211 210 228 220 225 202 196 157 121 86.5 106 126 158 156 176 159 181 158 164 158 181 159 176 156 158 126 106 86.5 121 157 196 202 225 220 228 210 211 181 158 100 67.2 59.8 68.9 71.7 64.1 54.3 55.2 60.3 62.0 70.7 76.0 74.0 93.2 97.7 83.8 97.7 93.2 74.0 76.0 70.7 62.0 60.3 55.2 54.3 64.1 71.7 68.9 59.8 67.2 100 158 181
25.0 232 229 245 233 234 213 204 166 126 86.2 98.9 124 152 154 173 154 175 153 157 153 175 154 173 154 152 124 98.9 86.2 126 166 204 213 234 233 245 229 232 208 181 113 82.3 81.8 126 115 111 77.7 89.8 54.7 52.0 45.1 44.0 53.8 53.5 54.0 55.8 54.0 53.5 53.8 44.0 45.1 52.0 54.7 89.8 77.7 111 115 126 81.8 82.3 113 181 208
27.5 247 243 262 246 250 226 214 175 131 87.6 96.6 120 152 152 170 148 169 146 150 146 169 148 170 152 152 120 96.6 87.6 131 175 214 226 250 246 262 243 247 230 191 120 94.5 108 150 146 141 120 122 92.0 85.8 46.8 47.6 52.8 96.0 77.4 95.9 77.4 96.0 52.8 47.6 46.8 85.8 92.0 122 120 141 146 150 108 94.5 120 191 230
30.0 259 258 276 258 266 239 227 183 135 89.9 94.7 118 151 146 162 138 156 132 138 132 156 138 162 146 151 118 94.7 89.9 135 183 227 239 266 258 276 258 259 238 202 127 103 120 157 147 145 127 136 108 96.7 65.0 61.6 85.5 119 104 105 104 119 85.5 61.6 65.0 96.7 108 136 127 145 147 157 120 103 127 202 238
32.5 269 271 287 267 269 243 231 189 142 91.5 93.3 115 149 138 151 124 141 116 121 116 141 124 151 138 149 115 93.3 91.5 142 189 231 243 269 267 287 271 269 242 202 131 110 130 156 148 142 122 124 116 97.9 67.4 66.7 91.2 110 93.0 102 93.0 110 91.2 66.7 67.4 97.9 116 124 122 142 148 156 130 110 131 202 242
35.0 279 279 294 276 276 247 231 190 142 91.0 90.8 110 142 126 136 110 123 102 105 102 123 110 136 126 142 110 90.8 91.0 142 190 231 247 276 276 294 279 279 243 201 128 114 129 162 144 141 125 127 114 103 66.8 60.5 83.4 118 96.5 106 96.5 118 83.4 60.5 66.8 103 114 127 125 141 144 162 129 114 128 201 243
37.5 278 279 287 276 272 248 230 187 139 86.7 85.6 102 132 115 122 98.3 110 91.6 95.3 91.6 110 98.3 122 115 132 102 85.6 86.7 139 187 230 248 272 276 287 279 278 245 199 126 112 135 158 143 145 126 129 109 104 65.9 56.7 89.0 120 102 107 102 120 89.0 56.7 65.9 104 109 129 126 145 143 158 135 112 126 199 245
40.0 278 273 283 268 266 243 227 187 135 81.2 78.4 93.8 122 106 110 90.8 101 85.4 89.3 85.4 101 90.8 110 106 122 93.8 78.4 81.2 135 187 227 243 266 268 283 273 278 245 202 123 111 136 162 145 141 126 134 107 106 62.9 56.8 89.2 117 104 108 104 117 89.2 56.8 62.9 106 107 134 126 141 145 162 136 111 123 202 245
42.5 285 277 287 269 264 238 226 185 132 75.7 69.6 84.6 112 98.3 102 86.1 96.9 82.6 85.6 82.6 96.9 86.1 102 98.3 112 84.6 69.6 75.7 132 185 226 238 264 269 287 277 285 249 203 118 105 137 157 138 138 127 134 108 102 56.9 53.6 87.6 110 101 103 101 110 87.6 53.6 56.9 102 108 134 127 138 138 157 137 105 118 203 249
45.0 287 276 284 266 257 226 220 178 126 68.5 60.8 74.5 103 92.4 96.1 81.4 93.4 79.3 81.4 79.3 93.4 81.4 96.1 92.4 103 74.5 60.8 68.5 126 178 220 226 257 266 284 276 287 247 201 112 99.7 134 151 136 133 126 131 108 96.5 54.7 54.8 84.0 105 96.5 100 96.5 105 84.0 54.8 54.7 96.5 108 131 126 133 136 151 134 99.7 112 201 247
47.5 273 263 270 242 241 209 204 169 120 62.2 51.4 64.9 95.5 88.9 91.4 78.2 90.0 76.9 78.3 76.9 90.0 78.2 91.4 88.9 95.5 64.9 51.4 62.2 120 169 204 209 241 242 270 263 273 235 190 105 95.8 127 145 134 132 125 125 104 93.4 53.0 57.2 81.3 98.2 90.5 94.7 90.5 98.2 81.3 57.2 53.0 93.4 104 125 125 132 134 145 127 95.8 105 190 235
50.0 258 250 250 222 213 190 179 155 110 54.8 42.6 57.1 88.9 85.6 87.5 74.9 88.3 76.5 78.1 76.5 88.3 74.9 87.5 85.6 88.9 57.1 42.6 54.8 110 155 179 190 213 222 250 250 258 223 179 101 89.3 121 134 124 124 120 121 100 93.3 54.7 58.2 82.3 93.3 87.6 88.9 87.6 93.3 82.3 58.2 54.7 93.3 100 121 120 124 124 134 121 89.3 101 179 223
52.5 260 252 241 208 186 166 152 139 103 51.0 36.3 52.4 83.6 82.6 84.0 72.7 86.0 72.9 74.6 72.9 86.0 72.7 84.0 82.6 83.6 52.4 36.3 51.0 103 139 152 166 186 208 241 252 260 223 173 98.5 86.5 116 125 117 120 112 113 101 95.2 53.5 58.6 81.7 90.0 83.9 86.2 83.9 90.0 81.7 58.6 53.5 95.2 101 113 112 120 117 125 116 86.5 98.5 173 223
55.0 265 257 239 197 172 146 131 117 87.2 47.6 32.9 49.5 79.0 79.2 81.2 69.3 81.7 68.9 69.4 68.9 81.7 69.3 81.2 79.2 79.0 49.5 32.9 47.6 87.2 117 131 146 172 197 239 257 265 226 174 102 89.1 113 124 116 118 111 118 107 91.5 50.9 56.5 80.2 85.4 81.7 85.7 81.7 85.4 80.2 56.5 50.9 91.5 107 118 111 118 116 124 113 89.1 102 174 226
57.5 277 273 248 196 169 140 128 109 81.0 44.5 31.5 47.9 76.2 75.7 77.7 65.6 76.6 62.9 63.8 62.9 76.6 65.6 77.7 75.7 76.2 47.9 31.5 44.5 81.0 109 128 140 169 196 248 273 277 237 185 109 94.7 115 128 120 126 114 116 100 89.3 49.8 54.9 77.6 83.2 77.1 81.1 77.1 83.2 77.6 54.9 49.8 89.3 100 116 114 126 120 128 115 94.7 109 185 237
60.0 299 295 270 205 174 142 126 106 79.3 43.6 30.1 46.4 74.0 72.7 74.0 64.0 71.6 57.0 59.2 57.0 71.6 64.0 74.0 72.7 74.0 46.4 30.1 43.6 79.3 106 126 142 174 205 270 295 299 259 202 119 100 117 129 120 124 115 117 102 90.9 50.8 53.9 75.6 79.5 72.2 78.1 72.2 79.5 75.6 53.9 50.8 90.9 102 117 115 124 120 129 117 100 119 202 259
62.5 335 329 297 219 179 143 128 106 79.2 43.7 29.3 45.0 71.7 70.1 69.8 60.8 68.6 52.8 52.9 52.8 68.6 60.8 69.8 70.1 71.7 45.0 29.3 43.7 79.2 106 128 143 179 219 297 329 335 300 229 133 108 118 129 119 122 112 117 103 90.6 50.0 52.7 71.6 74.9 68.8 74.7 68.8 74.9 71.6 52.7 50.0 90.6 103 117 112 122 119 129 118 108 133 229 300
65.0 403 385 340 243 192 148 130 105 79.4 43.7 28.7 43.6 68.9 67.0 65.7 55.8 64.1 47.5 49.0 47.5 64.1 55.8 65.7 67.0 68.9 43.6 28.7 43.7 79.4 105 130 148 192 243 340 385 403 353 271 148 111 120 128 118 120 110 114 98.9 88.3 48.4 51.9 69.5 69.7 64.7 69.7 64.7 69.7 69.5 51.9 48.4 88.3 98.9 114 110 120 118 128 120 111 148 271 353
67.5 490 444 392 267 207 154 132 105 79.9 43.8 28.1 41.8 65.3 61.5 60.0 46.5 54.5 38.5 40.0 38.5 54.5 46.5 60.0 61.5 65.3 41.8 28.1 43.8 79.9 105 132 154 207 267 392 444 490 412 304 153 110 120 126 115 117 107 108 95.5 85.5 47.1 50.3 66.6 64.2 59.6 64.5 59.6 64.2 66.6 50.3 47.1 85.5 95.5 108 107 117 115 126 120 110 153 304 412
70.0 510 462 411 273 211 154 132 104 79.5 43.0 26.5 35.5 58.3 47.4 48.3 33.2 40.7 27.8 29.4 27.8 40.7 33.2 48.3 47.4 58.3 35.5 26.5 43.0 79.5 104 132 154 211 273 411 462 510 404 291 136 97.3 106 114 101 106 100 100 89.2 81.4 45.9 47.2 61.7 58.0 55.0 57.6 55.0 58.0 61.7 47.2 45.9 81.4 89.2 100 100 106 101 114 106 97.3 136 291 404
72.5 421 391 345 231 168 112 93.2 73.8 70.0 38.5 21.6 19.5 37.1 24.4 30.3 18.7 26.5 17.1 17.8 17.1 26.5 18.7 30.3 24.4 37.1 19.5 21.6 38.5 70.0 73.8 93.2 112 168 231 345 391 421 320 223 99.4 69.2 70.0 76.3 72.9 82.3 85.3 79.5 78.8 69.7 42.5 40.9 53.1 47.2 47.0 46.6 47.0 47.2 53.1 40.9 42.5 69.7 78.8 79.5 85.3 82.3 72.9 76.3 70.0 69.2 99.4 223 320
75.0 296 282 241 167 108 72.4 42.0 28.7 24.2 14.7 17.8 13.3 15.7 12.2 15.0 13.2 17.5 12.5 14.0 12.5 17.5 13.2 15.0 12.2 15.7 13.3 17.8 14.7 24.2 28.7 42.0 72.4 108 167 241 282 296 228 153 68.5 43.7 38.3 34.0 39.9 44.9 53.4 46.5 57.4 48.7 34.2 31.4 37.8 32.8 33.3 31.9 33.3 32.8 37.8 31.4 34.2 48.7 57.4 46.5 53.4 44.9 39.9 34.0 38.3 43.7 68.5 153 228
77.5 208 197 168 121 83.9 56.2 33.5 20.1 17.1 12.4 13.6 11.1 11.3 9.7 11.7 11.7 13.9 10.7 12.2 10.7 13.9 11.7 11.7 9.7 11.3 11.1 13.6 12.4 17.1 20.1 33.5 56.2 83.9 121 168 197 208 150 103 47.5 33.3 24.6 23.5 25.0 25.5 28.6 28.1 33.4 31.0 26.3 23.2 22.9 18.7 19.7 18.1 19.7 18.7 22.9 23.2 26.3 31.0 33.4 28.1 28.6 25.5 25.0 23.5 24.6 33.3 47.5 103 150
80.0 118 108 101 79.5 57.3 42.1 26.3 16.1 14.2 10.9 12.1 9.8 9.5 8.1 10.0 9.7 11.7 9.1 10.6 9.1 11.7 9.7 10.0 8.1 9.5 9.8 12.1 10.9 14.2 16.1 26.3 42.1 57.3 79.5 101 108 118 85.7 64.6 29.7 24.2 18.9 19.5 21.1 22.6 22.9 26.2 28.4 29.9 25.0 19.4 13.5 13.0 12.9 12.5 12.9 13.0 13.5 19.4 25.0 29.9 28.4 26.2 22.9 22.6 21.1 19.5 18.9 24.2 29.7 64.6 85.7
82.5 35.9 54.7 33.3 43.0 24.4 27.7 16.6 12.4 11.4 9.5 10.6 8.3 8.1 6.9 8.8 8.5 10.4 7.9 9.2 7.9 10.4 8.5 8.8 6.9 8.1 8.3 10.6 9.5 11.4 12.4 16.6 27.7 24.4 43.0 33.3 54.7 35.9 38.8 22.0 17.4 15.7 14.5 16.0 18.6 20.4 21.1 26.2 29.4 32.8 25.3 18.0 11.6 11.1 10.9 10.7 10.9 11.1 11.6 18.0 25.3 32.8 29.4 26.2 21.1 20.4 18.6 16.0 14.5 15.7 17.4 22.0 38.8
85.0 11.0 13.3 13.9 14.2 14.2 14.6 13.0 9.4 9.7 8.7 9.2 7.0 7.0 6.2 8.0 7.7 9.6 7.4 8.5 7.4 9.6 7.7 8.0 6.2 7.0 7.0 9.2 8.7 9.7 9.4 13.0 14.6 14.2 14.2 13.9 13.3 11.0 9.2 9.5 10.3 11.7 11.7 13.9 17.3 19.0 19.7 27.0 31.8 35.2 25.2 16.5 10.2 9.5 9.4 9.8 9.4 9.5 10.2 16.5 25.2 35.2 31.8 27.0 19.7 19.0 17.3 13.9 11.7 11.7 10.3 9.5 9.2
87.5 10.0 11.7 12.7 13.0 13.6 13.3 12.4 8.7 9.4 8.8 8.7 6.7 6.1 5.3 7.3 7.0 8.7 6.6 7.9 6.6 8.7 7.0 7.3 5.3 6.1 6.7 8.7 8.8 9.4 8.7 12.4 13.3 13.6 13.0 12.7 11.7 10.0 8.1 8.6 9.6 11.2 11.1 14.2 16.4 18.1 18.5 28.1 32.6 33.3 22.6 13.8 8.6 8.0 7.8 8.0 7.8 8.0 8.6 13.8 22.6 33.3 32.6 28.1 18.5 18.1 16.4 14.2 11.1 11.2 9.6 8.6 8.1
90.0 9.1 10.0 11.1 11.8 12.7 12.1 11.4 8.6 9.2 8.9 8.8 6.7 5.9 5.1 6.7 6.9 8.0 6.4 7.4 6.4 8.0 6.9 6.7 5.1 5.9 6.7 8.8 8.9 9.2 8.6 11.4 12.1 12.7 11.8 11.1 10.0 9.1 7.6 8.1 8.9 10.0 8.8 12.0 13.2 15.5 16.2 27.1 30.4 27.1 17.4 9.5 6.7 6.7 6.5 6.2 6.5 6.7 6.7 9.5 17.4 27.1 30.4 27.1 16.2 15.5 13.2 12.0 8.8 10.0 8.9 8.1 7.6
92.5 7.6 7.8 9.4 9.5 10.3 10.6 10.2 8.3 8.8 8.4 8.9 6.6 5.8 5.0 6.2 6.1 7.5 5.9 6.7 5.9 7.5 6.1 6.2 5.0 5.8 6.6 8.9 8.4 8.8 8.3 10.2 10.6 10.3 9.5 9.4 7.8 7.6 6.5 7.0 6.9 6.8 6.8 8.0 10.9 11.9 14.2 19.7 23.2 16.4 12.0 6.2 5.3 5.7 5.3 5.5 5.3 5.7 5.3 6.2 12.0 16.4 23.2 19.7 14.2 11.9 10.9 8.0 6.8 6.8 6.9 7.0 6.5
95.0 6.3 6.7 7.3 7.5 7.5 7.7 6.9 6.1 6.7 6.5 7.9 6.1 5.6 4.6 5.1 4.7 6.1 4.6 4.6 4.6 6.1 4.7 5.1 4.6 5.6 6.1 7.9 6.5 6.7 6.1 6.9 7.7 7.5 7.5 7.3 6.7 6.3 5.9 6.3 6.2 6.1 5.8 6.3 7.7 7.5 9.2 10.6 12.3 8.3 5.9 4.8 4.6 5.3 4.7 5.0 4.7 5.3 4.6 4.8 5.9 8.3 12.3 10.6 9.2 7.5 7.7 6.3 5.8 6.1 6.2 6.3 5.9
97.5 5.6 5.4 6.1 6.3 6.5 6.4 5.9 5.4 5.6 5.3 6.5 5.3 5.3 4.4 4.6 4.1 4.6 4.1 4.1 4.1 4.6 4.1 4.6 4.4 5.3 5.3 6.5 5.3 5.6 5.4 5.9 6.4 6.5 6.3 6.1 5.4 5.6 5.6 5.7 5.5 5.5 5.3 5.6 5.9 5.6 5.7 5.6 5.2 4.2 4.2 4.2 4.2 5.0 4.4 4.6 4.4 5.0 4.2 4.2 4.2 4.2 5.2 5.6 5.7 5.6 5.9 5.6 5.3 5.5 5.5 5.7 5.6
100.0 5.3 5.1 5.6 5.8 6.3 5.8 5.7 4.8 5.2 4.8 5.9 5.1 5.3 4.2 4.4 3.7 4.3 3.9 3.9 3.9 4.3 3.7 4.4 4.2 5.3 5.1 5.9 4.8 5.2 4.8 5.7 5.8 6.3 5.8 5.6 5.1 5.3 5.2 5.3 5.1 5.1 4.8 5.4 5.4 5.3 4.7 4.5 3.9 3.7 3.6 3.9 3.9 4.4 4.1 4.3 4.1 4.4 3.9 3.9 3.6 3.7 3.9 4.5 4.7 5.3 5.4 5.4 4.8 5.1 5.1 5.3 5.2
102.5 4.8 4.7 5.3 5.3 5.8 5.6 5.4 4.7 4.8 4.3 5.0 4.3 4.7 3.6 4.1 3.5 4.1 3.6 3.7 3.6 4.1 3.5 4.1 3.6 4.7 4.3 5.0 4.3 4.8 4.7 5.4 5.6 5.8 5.3 5.3 4.7 4.8 4.6 5.0 4.8 4.8 4.6 5.1 5.0 4.8 4.2 4.1 3.5 3.3 3.3 3.6 3.6 4.1 3.7 4.0 3.7 4.1 3.6 3.6 3.3 3.3 3.5 4.1 4.2 4.8 5.0 5.1 4.6 4.8 4.8 5.0 4.6
105.0 4.7 4.5 5.0 4.8 5.3 5.1 5.1 4.4 4.5 4.0 4.3 3.6 3.9 3.3 3.6 3.2 3.9 3.3 3.4 3.3 3.9 3.2 3.6 3.3 3.9 3.6 4.3 4.0 4.5 4.4 5.1 5.1 5.3 4.8 5.0 4.5 4.7 4.5 4.7 4.5 4.7 4.4 4.6 4.5 4.5 3.9 3.7 3.2 3.2 3.1 3.4 3.4 3.9 3.5 3.6 3.5 3.9 3.4 3.4 3.1 3.2 3.2 3.7 3.9 4.5 4.5 4.6 4.4 4.7 4.5 4.7 4.5
107.5 4.5 4.4 4.7 4.6 4.8 4.7 4.7 4.2 4.2 3.7 4.0 3.4 3.5 3.1 3.3 3.1 3.6 3.3 3.3 3.3 3.6 3.1 3.3 3.1 3.5 3.4 4.0 3.7 4.2 4.2 4.7 4.7 4.8 4.6 4.7 4.4 4.5 4.3 4.5 4.3 4.5 4.2 4.4 4.2 4.1 3.6 3.6 3.1 3.1 3.0 3.3 3.1 3.6 3.3 3.4 3.3 3.6 3.1 3.3 3.0 3.1 3.1 3.6 3.6 4.1 4.2 4.4 4.2 4.5 4.3 4.5 4.3
110.0 4.4 4.2 4.5 4.5 4.7 4.5 4.5 4.1 4.1 3.6 3.7 3.3 3.3 3.0 3.2 3.0 3.5 3.1 3.2 3.1 3.5 3.0 3.2 3.0 3.3 3.3 3.7 3.6 4.1 4.1 4.5 4.5 4.7 4.5 4.5 4.2 4.4 4.2 4.2 4.2 4.3 4.1 4.2 4.0 3.9 3.5 3.5 3.0 3.1 2.9 3.1 3.1 3.4 3.1 3.3 3.1 3.4 3.1 3.1 2.9 3.1 3.0 3.5 3.5 3.9 4.0 4.2 4.1 4.3 4.2 4.2 4.2
112.5 4.2 4.2 4.4 4.4 4.5 4.3 4.4 4.0 4.0 3.5 3.6 3.1 3.3 2.9 3.1 2.9 3.4 3.1 3.2 3.1 3.4 2.9 3.1 2.9 3.3 3.1 3.6 3.5 4.0 4.0 4.4 4.3 4.5 4.4 4.4 4.2 4.2 4.0 4.2 4.0 4.2 4.0 4.1 3.9 3.9 3.3 3.4 3.0 3.1 2.9 3.1 2.9 3.3 3.0 3.2 3.0 3.3 2.9 3.1 2.9 3.1 3.0 3.4 3.3 3.9 3.9 4.1 4.0 4.2 4.0 4.2 4.0
115.0 4.2 4.1 4.3 4.3 4.5 4.3 4.3 3.9 3.9 3.3 3.5 3.1 3.1 2.9 3.1 2.8 3.3 3.1 3.2 3.1 3.3 2.8 3.1 2.9 3.1 3.1 3.5 3.3 3.9 3.9 4.3 4.3 4.5 4.3 4.3 4.1 4.2 3.9 4.0 3.9 4.0 3.7 4.1 3.9 3.7 3.3 3.4 3.0 3.0 2.8 3.0 2.8 3.1 2.9 3.1 2.9 3.1 2.8 3.0 2.8 3.0 3.0 3.4 3.3 3.7 3.9 4.1 3.7 4.0 3.9 4.0 3.9
117.5 4.1 4.0 4.3 4.3 4.5 4.4 4.3 3.9 3.9 3.3 3.5 3.1 3.1 2.8 3.0 3.0 3.3 3.3 3.5 3.3 3.3 3.0 3.0 2.8 3.1 3.1 3.5 3.3 3.9 3.9 4.3 4.4 4.5 4.3 4.3 4.0 4.1 3.7 3.9 3.6 3.9 3.6 3.9 3.7 3.7 3.3 3.5 3.0 3.1 2.8 3.0 2.6 3.1 2.8 3.1 2.8 3.1 2.6 3.0 2.8 3.1 3.0 3.5 3.3 3.7 3.7 3.9 3.6 3.9 3.6 3.9 3.7
120.0 4.1 4.1 4.3 4.5 5.0 4.7 4.5 3.9 3.9 3.3 3.4 3.0 3.1 2.6 3.0 3.1 3.6 3.4 3.6 3.4 3.6 3.1 3.0 2.6 3.1 3.0 3.4 3.3 3.9 3.9 4.5 4.7 5.0 4.5 4.3 4.1 4.1 3.6 3.7 3.6 3.9 3.6 4.0 3.9 3.7 3.5 3.6 3.1 3.3 2.8 3.0 2.6 3.1 2.8 3.0 2.8 3.1 2.6 3.0 2.8 3.3 3.1 3.6 3.5 3.7 3.9 4.0 3.6 3.9 3.6 3.7 3.6
122.5 4.0 4.7 4.5 4.7 5.1 5.2 4.8 3.9 3.7 3.3 3.3 3.0 3.0 2.6 2.9 2.9 3.6 3.2 3.7 3.2 3.6 2.9 2.9 2.6 3.0 3.0 3.3 3.3 3.7 3.9 4.8 5.2 5.1 4.7 4.5 4.7 4.0 3.6 3.7 3.6 3.7 3.6 3.9 4.1 4.2 3.9 4.0 3.3 3.3 3.0 3.0 2.6 3.1 2.8 3.0 2.8 3.1 2.6 3.0 3.0 3.3 3.3 4.0 3.9 4.2 4.1 3.9 3.6 3.7 3.6 3.7 3.6
125.0 3.7 4.7 4.8 5.1 5.3 5.3 4.8 3.7 3.6 3.3 3.3 2.9 3.0 2.6 2.9 2.8 3.5 3.2 3.6 3.2 3.5 2.8 2.9 2.6 3.0 2.9 3.3 3.3 3.6 3.7 4.8 5.3 5.3 5.1 4.8 4.7 3.7 3.4 3.6 3.5 3.6 3.7 4.0 4.7 5.5 5.1 4.5 4.0 3.4 3.0 3.1 2.8 3.1 2.8 3.4 2.8 3.1 2.8 3.1 3.0 3.4 4.0 4.5 5.1 5.5 4.7 4.0 3.7 3.6 3.5 3.6 3.4
127.5 3.6 3.9 5.2 5.1 5.4 5.4 5.1 3.9 3.6 3.1 3.3 2.9 2.9 2.5 2.9 2.6 3.4 3.1 3.6 3.1 3.4 2.6 2.9 2.5 2.9 2.9 3.3 3.1 3.6 3.9 5.1 5.4 5.4 5.1 5.2 3.9 3.6 3.3 3.5 3.3 3.6 3.9 4.4 5.6 6.4 5.4 6.1 4.6 3.7 3.0 3.1 2.8 3.3 3.3 4.1 3.3 3.3 2.8 3.1 3.0 3.7 4.6 6.1 5.4 6.4 5.6 4.4 3.9 3.6 3.3 3.5 3.3
130.0 3.5 3.6 4.5 5.1 5.6 4.8 5.0 3.9 3.6 3.1 3.1 2.8 2.8 2.5 2.6 2.5 3.1 2.8 3.4 2.8 3.1 2.5 2.6 2.5 2.8 2.8 3.1 3.1 3.6 3.9 5.0 4.8 5.6 5.1 4.5 3.6 3.5 3.2 3.3 3.3 3.7 4.1 4.8 5.8 6.3 5.3 5.9 5.0 3.9 3.0 3.1 3.0 3.6 3.7 4.3 3.7 3.6 3.0 3.1 3.0 3.9 5.0 5.9 5.3 6.3 5.8 4.8 4.1 3.7 3.3 3.3 3.2
132.5 3.3 3.3 3.7 4.2 4.8 4.5 4.4 3.7 3.5 3.0 3.1 2.6 2.8 2.4 2.5 2.3 2.9 2.5 2.8 2.5 2.9 2.3 2.5 2.4 2.8 2.6 3.1 3.0 3.5 3.7 4.4 4.5 4.8 4.2 3.7 3.3 3.3 3.1 3.3 3.1 3.6 3.7 4.8 5.6 5.9 5.1 5.3 5.1 3.9 3.1 3.4 4.2 4.0 4.2 4.6 4.2 4.0 4.2 3.4 3.1 3.9 5.1 5.3 5.1 5.9 5.6 4.8 3.7 3.6 3.1 3.3 3.1
135.0 3.2 3.1 3.4 3.4 3.9 3.7 4.0 3.3 3.2 2.6 3.0 2.5 2.6 2.4 2.5 2.2 2.5 2.4 2.5 2.4 2.5 2.2 2.5 2.4 2.6 2.5 3.0 2.6 3.2 3.3 4.0 3.7 3.9 3.4 3.4 3.1 3.2 3.0 3.1 3.1 3.5 3.5 4.7 5.3 5.4 4.6 4.7 5.1 3.6 3.1 4.4 3.7 4.1 4.2 4.5 4.2 4.1 3.7 4.4 3.1 3.6 5.1 4.7 4.6 5.4 5.3 4.7 3.5 3.5 3.1 3.1 3.0
137.5 3.1 3.0 3.1 3.0 3.3 3.2 3.2 3.0 3.0 2.5 2.8 2.5 2.5 2.3 2.4 2.1 2.4 2.1 2.2 2.1 2.4 2.1 2.4 2.3 2.5 2.5 2.8 2.5 3.0 3.0 3.2 3.2 3.3 3.0 3.1 3.0 3.1 2.9 3.0 3.0 3.2 3.1 4.5 4.8 5.0 4.2 4.2 4.4 3.3 3.2 4.6 4.0 3.6 4.0 4.3 4.0 3.6 4.0 4.6 3.2 3.3 4.4 4.2 4.2 5.0 4.8 4.5 3.1 3.2 3.0 3.0 2.9
140.0 3.0 2.9 3.0 2.9 3.0 2.9 2.9 2.6 2.8 2.4 2.8 2.4 2.5 2.2 2.3 2.0 2.1 1.9 2.0 1.9 2.1 2.0 2.3 2.2 2.5 2.4 2.8 2.4 2.8 2.6 2.9 2.9 3.0 2.9 3.0 2.9 3.0 2.8 2.8 2.8 2.9 2.9 3.5 3.9 3.6 3.3 3.4 3.3 3.1 3.4 4.3 3.9 3.5 3.6 3.9 3.6 3.5 3.9 4.3 3.4 3.1 3.3 3.4 3.3 3.6 3.9 3.5 2.9 2.9 2.8 2.8 2.8
142.5 2.8 2.6 2.8 2.6 2.8 2.5 2.6 2.4 2.5 2.2 2.5 2.2 2.4 2.1 2.2 1.9 2.1 1.9 1.9 1.9 2.1 1.9 2.2 2.1 2.4 2.2 2.5 2.2 2.5 2.4 2.6 2.5 2.8 2.6 2.8 2.6 2.8 2.6 2.8 2.5 2.5 2.5 2.8 2.8 2.6 2.5 3.0 2.8 3.0 3.1 3.6 3.3 3.1 3.1 3.1 3.1 3.1 3.3 3.6 3.1 3.0 2.8 3.0 2.5 2.6 2.8 2.8 2.5 2.5 2.5 2.8 2.6
145.0 2.8 2.5 2.8 2.5 2.6 2.4 2.5 2.4 2.4 2.2 2.4 2.2 2.2 2.1 2.2 1.9 2.1 1.7 1.8 1.7 2.1 1.9 2.2 2.1 2.2 2.2 2.4 2.2 2.4 2.4 2.5 2.4 2.6 2.5 2.8 2.5 2.8 2.4 2.5 2.4 2.4 2.3 2.4 2.4 2.5 2.4 2.8 2.5 2.8 2.8 3.0 2.6 2.8 2.5 2.8 2.5 2.8 2.6 3.0 2.8 2.8 2.5 2.8 2.4 2.5 2.4 2.4 2.3 2.4 2.4 2.5 2.4
147.5 2.5 2.4 2.5 2.4 2.5 2.2 2.3 2.1 2.2 2.1 2.3 2.0 2.2 2.0 2.1 1.9 2.0 1.7 1.8 1.7 2.0 1.9 2.1 2.0 2.2 2.0 2.3 2.1 2.2 2.1 2.3 2.2 2.5 2.4 2.5 2.4 2.5 2.3 2.4 2.2 2.3 2.2 2.3 2.3 2.4 2.4 2.8 2.5 2.8 2.5 2.5 2.4 2.9 2.8 3.0 2.8 2.9 2.4 2.5 2.5 2.8 2.5 2.8 2.4 2.4 2.3 2.3 2.2 2.3 2.2 2.4 2.3
150.0 2.4 2.3 2.4 2.3 2.3 2.1 2.2 2.1 2.2 2.0 2.2 2.0 2.0 1.9 2.0 1.7 2.0 1.7 1.7 1.7 2.0 1.7 2.0 1.9 2.0 2.0 2.2 2.0 2.2 2.1 2.2 2.1 2.3 2.3 2.4 2.3 2.4 2.3 2.3 2.2 2.3 2.2 2.4 2.3 2.5 2.5 2.8 2.5 2.8 2.5 2.5 2.4 3.1 3.0 3.2 3.0 3.1 2.4 2.5 2.5 2.8 2.5 2.8 2.5 2.5 2.3 2.4 2.2 2.3 2.2 2.3 2.3
152.5 2.5 2.3 2.4 2.2 2.2 2.1 2.2 2.0 2.0 2.0 2.2 2.0 2.0 1.9 2.0 1.7 1.9 1.7 1.7 1.7 1.9 1.7 2.0 1.9 2.0 2.0 2.2 2.0 2.0 2.0 2.2 2.1 2.2 2.2 2.4 2.3 2.5 2.2 2.3 2.2 2.2 2.2 2.4 2.4 2.5 2.5 2.9 2.5 3.2 2.9 2.5 2.5 4.0 3.1 3.4 3.1 4.0 2.5 2.5 2.9 3.2 2.5 2.9 2.5 2.5 2.4 2.4 2.2 2.2 2.2 2.3 2.2
155.0 2.4 2.4 2.4 2.2 2.3 2.0 2.2 2.0 2.0 1.9 2.0 1.9 2.0 1.9 1.9 1.7 2.0 1.7 1.8 1.7 2.0 1.7 1.9 1.9 2.0 1.9 2.0 1.9 2.0 2.0 2.2 2.0 2.3 2.2 2.4 2.4 2.4 2.2 2.2 2.2 2.2 2.2 2.5 3.0 3.0 2.8 3.6 3.3 3.3 2.9 2.5 3.3 4.3 4.2 4.4 4.2 4.3 3.3 2.5 2.9 3.3 3.3 3.6 2.8 3.0 3.0 2.5 2.2 2.2 2.2 2.2 2.2
157.5 2.3 2.2 2.3 2.2 2.2 2.1 2.2 2.0 2.0 1.8 2.0 1.7 2.0 1.7 1.9 1.7 2.0 1.7 1.8 1.7 2.0 1.7 1.9 1.7 2.0 1.7 2.0 1.8 2.0 2.0 2.2 2.1 2.2 2.2 2.3 2.2 2.3 2.1 2.2 2.0 2.1 2.2 3.1 2.9 3.5 3.4 3.9 3.3 3.1 2.5 2.2 2.4 2.6 3.4 2.9 3.4 2.6 2.4 2.2 2.5 3.1 3.3 3.9 3.4 3.5 2.9 3.1 2.2 2.1 2.0 2.2 2.1
160.0 2.1 2.1 2.2 2.0 2.2 2.0 2.0 1.8 1.9 1.7 1.9 1.7 1.8 1.7 1.9 1.7 2.0 1.7 1.8 1.7 2.0 1.7 1.9 1.7 1.8 1.7 1.9 1.7 1.9 1.8 2.0 2.0 2.2 2.0 2.2 2.1 2.1 2.0 2.0 1.9 2.0 2.0 2.2 2.5 3.0 3.3 2.5 2.4 2.1 2.1 1.9 1.9 2.0 2.0 2.0 2.0 2.0 1.9 1.9 2.1 2.1 2.4 2.5 3.3 3.0 2.5 2.2 2.0 2.0 1.9 2.0 2.0
162.5 1.8 1.8 1.9 1.9 2.0 1.9 1.9 1.8 1.9 1.7 1.7 1.5 1.7 1.5 1.7 1.5 1.9 1.5 1.7 1.5 1.9 1.5 1.7 1.5 1.7 1.5 1.7 1.7 1.9 1.8 1.9 1.9 2.0 1.9 1.9 1.8 1.8 1.7 1.8 1.7 1.9 1.9 2.0 2.0 2.1 2.1 2.0 1.8 1.7 1.7 1.7 1.7 1.9 1.7 1.8 1.7 1.9 1.7 1.7 1.7 1.7 1.8 2.0 2.1 2.1 2.0 2.0 1.9 1.9 1.7 1.8 1.7
165.0 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.7 1.4 1.7 1.5 1.7 1.4 1.7 1.4 1.5 1.4 1.7 1.4 1.7 1.5 1.7 1.4 1.7 1.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8 1.8 1.7 1.7 1.7 1.8 1.7 1.7 1.5 1.7 1.5 1.7 1.5 1.5 1.5 1.7 1.5 1.7 1.5 1.7 1.7 1.8 1.7 1.7 1.7 1.8 1.8 1.7 1.7 1.7 1.7
167.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.4 1.7 1.5 1.5 1.5 1.7 1.4 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.5 1.7 1.5 1.5 1.5 1.7 1.5 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7
170.0 1.9 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.5 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.9 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.5 1.8 1.5 1.7 1.5 1.8 1.5 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.7 1.8 1.7 1.7 1.7
172.5 1.9 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.5 1.8 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.8 1.5 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.9 1.7 1.8 1.7 1.8 1.7 1.7 1.7 1.8 1.7 1.9 1.7 1.8 1.7 1.7 1.5 1.9 1.5 1.7 1.5 1.9 1.5 1.7 1.7 1.8 1.7 1.9 1.7 1.8 1.7 1.7 1.7 1.8 1.7 1.8 1.7
175.0 1.9 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.9 1.7 1.8 1.7 1.8 1.7 1.7 1.7 1.7 1.7 1.9 1.7 1.8 1.7 1.7 1.5 1.9 1.5 1.7 1.5 1.9 1.5 1.7 1.7 1.8 1.7 1.9 1.7 1.7 1.7 1.7 1.7 1.8 1.7 1.8 1.7
177.5 1.9 1.7 1.9 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.7 1.7 1.5 1.8 1.5 1.7 1.5 1.8 1.5 1.7 1.7 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.9 1.7 1.9 1.7 1.8 1.7 1.8 1.7 1.8 1.7 0.9 1.7 1.9 1.7 1.8 1.7 1.7 1.5 1.8 1.5 1.7 1.5 1.8 1.5 1.7 1.7 1.8 1.7 1.9 1.7 0.9 1.7 1.8 1.7 1.8 1.7 1.8 1.7
180.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0
