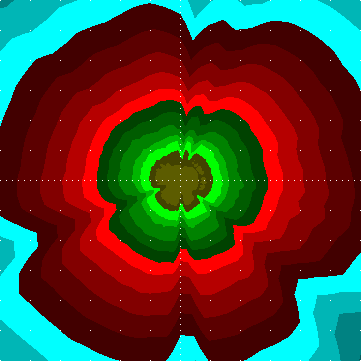

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] IN110114A.LDT
# [LUMINAIRE] AMA-MRP
# [LUMCAT] Amandine
# [DATE] 26/11/2012/20/01/2011/
# down given: 81%
# out given: 63.1%
# tilt: 0.0
# [LAMP] 1 MT 45 4300 2800 PGZ12
# Bulbs: 1, 4300 lm each
# Source file: Amandine_AMA-MRP_1_MT_45_4300_2800_PGZ12.ldt
# Luminaire flux = 631 raw, for the given bulb(s) it would be 2715 lm,
# 63.1 % of the bulb flux
# between 75 and 90: 22.6 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 105.9 cd / 1000 lm , 32.3 % of the luminaire flux
# 90deg and above: max 96.0 cd / 1000 lm , 19.4 % of the luminaire flux
# CutOff Type: Non-CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 711 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon:3303 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 107 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 104 cd / 1000 lm,
# maximum spec. lum. intensity 124 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7 65.7
2.5 67.5 66.2 66.6 65.3 66.6 65.4 66.5 65.0 65.9 65.1 65.8 64.7 65.4 64.9 65.5 64.5 65.2 64.5 65.1 65.9 63.5 65.2 63.2 64.6 62.8 63.5 62.6 63.3 62.1 62.8 61.4 62.4 61.6 62.3 61.9 62.4 61.8 62.5 62.0 62.6 62.0 62.8 62.3 63.1 62.6 63.8 63.2 63.8 63.2 63.9 63.4 64.4 63.8 64.4 64.1 62.3 63.5 62.8 63.9 63.4 64.8 64.1 65.3 64.7 66.3 65.7 66.9 66.0 66.8 66.2 67.1 66.2
5.0 66.1 64.3 64.6 63.3 64.6 63.6 64.5 63.1 63.8 63.0 63.7 62.1 63.1 62.1 63.2 62.0 63.0 61.8 62.2 62.1 60.0 61.7 60.0 60.9 59.5 59.8 59.2 59.4 59.2 58.9 58.7 58.6 58.5 59.0 58.6 58.9 59.1 58.8 58.9 59.3 59.2 59.6 59.6 60.3 60.0 60.5 60.9 61.4 61.2 61.7 61.5 62.2 62.1 62.4 62.5 59.8 60.6 60.0 61.2 60.5 62.1 61.8 63.3 62.6 64.5 63.7 65.6 64.4 65.5 64.9 65.7 64.7
7.5 65.0 63.2 63.5 62.4 63.3 62.5 63.0 61.9 61.8 61.5 61.7 60.4 60.8 60.2 60.9 60.0 60.4 60.1 60.2 59.4 58.3 59.3 58.6 58.8 58.3 57.8 58.3 57.7 58.5 57.7 58.2 57.3 58.0 57.6 58.1 57.6 58.8 57.7 58.5 58.0 58.8 58.3 59.2 58.9 59.5 59.4 60.5 60.2 60.7 60.7 61.3 61.3 61.5 61.5 61.9 58.6 58.7 58.7 59.3 59.3 60.0 60.4 61.2 61.4 62.5 62.3 63.8 63.1 63.8 63.2 64.5 63.5
10.0 64.5 63.2 63.3 62.8 63.2 62.9 63.0 62.1 61.5 61.9 61.4 60.4 60.2 59.8 59.9 59.4 59.4 59.7 59.5 58.1 58.0 58.4 58.8 58.5 58.6 58.0 59.0 58.0 59.3 58.1 59.3 57.6 59.0 58.4 58.9 58.2 59.9 58.2 59.0 58.7 59.8 59.2 60.7 60.2 61.0 60.7 62.6 61.5 62.8 62.2 63.2 62.6 63.3 62.2 62.7 59.0 58.4 59.4 59.2 60.1 59.8 61.2 61.2 61.9 62.0 62.2 63.1 62.9 62.9 63.2 63.9 63.6
12.5 65.9 65.0 64.8 64.9 64.8 65.6 64.7 64.9 63.5 64.2 63.4 62.8 61.7 61.6 60.7 60.5 59.7 60.5 60.2 58.9 59.5 59.4 60.4 59.7 60.4 59.6 61.2 59.8 61.6 60.1 61.6 59.6 61.3 60.2 61.5 60.1 62.8 60.4 61.4 60.5 62.1 61.3 63.1 62.4 63.6 63.1 65.5 64.3 65.9 65.3 66.1 64.8 65.3 64.1 64.3 60.4 59.6 61.7 61.6 62.9 61.9 63.9 63.5 64.3 63.3 64.2 64.5 65.2 64.3 65.3 65.3 65.5
15.0 67.8 67.2 66.7 67.3 67.2 68.0 67.4 67.4 66.5 67.3 66.2 65.0 63.9 63.6 62.3 61.8 60.9 61.7 62.0 60.8 62.0 61.3 62.9 61.7 62.8 61.6 63.6 62.7 64.2 62.8 64.5 62.3 63.9 63.3 64.3 62.9 65.4 63.1 63.8 63.2 64.3 63.5 65.5 64.6 66.4 66.5 69.0 67.3 68.7 68.1 69.2 67.5 67.9 66.8 66.7 62.1 61.6 65.0 64.7 66.7 65.1 67.0 66.6 66.7 65.7 66.5 66.9 67.8 66.9 67.9 68.5 68.2
17.5 70.6 70.6 69.7 70.7 70.1 71.3 70.4 71.1 70.3 70.5 69.6 67.8 66.1 65.8 64.4 63.6 62.6 63.3 64.0 63.0 64.2 64.0 65.0 64.2 64.8 64.0 66.3 64.8 66.4 65.1 66.6 64.6 66.0 65.7 66.9 65.4 67.8 66.0 66.4 65.2 66.3 65.3 67.8 66.5 69.5 69.4 72.3 70.4 71.7 70.9 71.6 70.3 70.6 69.5 68.5 63.5 64.1 67.4 67.6 69.8 68.6 70.4 69.3 69.2 68.2 69.2 70.0 71.7 70.5 71.6 71.3 71.4
20.0 73.9 73.7 72.8 73.7 73.4 74.3 73.4 74.2 73.9 74.0 72.9 70.5 68.4 67.4 66.2 65.3 63.8 64.3 65.9 65.5 66.6 66.6 67.4 66.0 67.1 66.2 68.3 67.2 68.5 67.0 68.5 66.3 67.9 67.4 69.1 67.3 69.6 67.8 68.3 67.3 67.8 67.1 69.6 69.5 72.6 73.4 75.6 73.6 74.7 73.7 74.4 72.7 73.3 71.4 69.9 64.4 66.2 69.7 70.3 72.8 71.2 72.9 72.6 71.1 70.2 71.2 73.0 75.3 74.5 75.2 74.9 74.2
22.5 77.1 77.4 76.0 77.0 76.8 77.9 76.8 78.0 77.3 77.0 75.8 72.6 70.0 69.3 68.1 67.1 64.5 64.7 67.5 67.7 68.7 68.9 69.8 68.6 69.3 68.5 70.5 69.8 71.7 69.6 71.2 68.6 70.5 69.7 71.6 69.9 72.6 70.1 70.9 68.9 69.0 68.1 70.9 72.2 75.6 76.7 78.8 77.0 78.2 77.0 77.9 76.5 76.9 74.3 71.2 65.0 68.1 71.3 72.3 74.9 73.9 74.9 74.6 72.7 71.5 73.1 76.2 79.3 77.8 78.8 77.9 77.5
25.0 81.1 80.7 79.2 80.0 80.4 80.7 80.1 80.7 80.2 79.6 78.0 74.7 71.6 70.7 70.0 69.2 64.8 65.1 69.6 69.3 70.7 71.4 72.4 71.2 72.5 71.5 73.9 73.6 75.8 73.2 74.8 71.6 73.6 73.0 74.6 73.2 75.1 72.7 73.8 71.3 70.7 69.9 73.4 75.0 78.6 79.6 81.5 79.6 81.0 79.9 81.0 80.0 79.9 75.8 72.0 65.4 70.4 74.2 74.8 78.0 76.3 77.6 76.7 74.6 72.8 75.7 79.5 83.0 80.7 82.7 81.6 80.6
27.5 84.5 83.5 82.3 83.0 84.4 84.2 84.0 83.0 82.7 81.9 80.5 76.5 73.3 71.2 71.5 70.6 65.3 64.7 71.6 71.5 73.0 73.7 74.5 73.3 74.9 75.1 77.1 77.4 80.1 76.8 78.4 74.9 77.0 76.5 78.1 75.9 77.5 74.9 75.2 73.2 71.5 71.5 75.3 79.0 81.1 82.6 84.0 82.3 83.5 82.4 84.0 83.6 83.8 78.8 73.3 66.2 73.0 77.1 78.7 80.2 79.6 80.3 79.4 75.7 73.8 75.8 82.2 84.6 83.7 85.4 85.1 82.7
30.0 84.0 80.9 81.9 81.9 86.5 83.5 85.6 81.9 83.1 80.4 79.7 75.0 72.3 69.0 70.5 69.5 63.9 63.2 72.2 71.9 72.2 74.5 74.1 74.7 76.0 77.5 79.6 79.6 87.4 81.4 87.3 81.1 90.0 84.0 91.9 83.8 87.6 79.5 86.7 76.1 69.1 69.7 83.8 82.8 88.5 86.9 91.3 85.0 92.7 85.5 92.8 88.4 91.6 81.0 73.6 69.1 81.8 87.6 83.0 85.3 81.3 81.7 79.9 73.6 71.6 73.2 79.7 82.7 82.7 82.9 83.7 80.8
32.5 79.4 78.1 77.5 78.5 83.2 82.1 83.0 82.3 80.5 81.7 77.9 79.8 72.0 66.3 66.4 77.2 69.4 60.9 70.4 70.7 74.5 72.9 78.0 76.5 81.9 85.5 91.9 88.0 107 96.5 98.2 101 98.3 97.4 99.2 96.0 95.7 90.8 92.1 82.6 65.5 66.4 89.3 93.1 98.4 100 104 100 111 101 111 104 112 91.4 70.7 68.6 98.2 101 99.6 98.9 90.7 93.7 82.8 71.1 67.1 74.7 76.7 80.7 79.3 80.5 79.4 77.9
35.0 89.2 97.3 80.9 90.8 93.2 94.9 94.3 104 89.0 101 90.8 99.5 86.9 65.8 62.6 85.5 87.8 58.4 67.6 85.4 88.7 85.6 87.5 83.8 86.0 94.0 93.4 91.3 108 98.5 95.7 101 96.8 96.5 97.9 94.0 96.5 91.6 93.7 83.3 61.2 62.5 91.5 93.0 97.6 99.7 99.9 101 108 104 111 111 111 98.6 66.4 67.3 98.1 103 103 99.9 96.1 99.7 92.8 69.2 62.9 91.8 84.3 95.6 88.5 99.5 85.4 99.3
37.5 107 117 97.1 102 112 103 108 107 100 103 96.3 102 93.0 64.6 58.7 89.5 93.6 56.2 64.7 91.6 90.0 87.7 85.4 81.8 85.0 90.8 93.7 88.8 108 98.1 101 107 108 104 111 107 109 99.6 105 89.9 57.3 59.4 101 100 109 104 107 102 113 101 112 108 111 96.9 62.0 67.9 108 115 109 107 102 104 96.1 66.8 59.4 96.0 91.3 103 104 115 101 116
40.0 108 117 99.1 104 112 107 108 111 106 111 101 113 102 66.6 56.0 97.6 107 54.3 62.0 98.7 95.9 93.1 93.2 86.7 91.5 94.5 101 96.6 121 112 108 124 115 116 114 115 113 107 107 94.1 54.3 56.7 107 109 114 116 113 114 124 111 122 116 118 102 58.3 66.2 114 116 115 110 108 107 102 64.4 56.2 103 95.7 106 108 117 108 118
42.5 104 117 98.5 103 111 109 107 113 114 119 108 121 113 68.4 54.4 99.1 114 52.8 59.8 103 97.2 97.4 92.1 88.2 88.1 98.1 95.1 98.4 113 110 101 119 105 110 104 107 101 99.6 95.5 85.9 52.1 54.7 97.0 101 102 111 105 113 117 111 118 116 110 104 54.6 62.4 109 105 109 101 103 99.6 103 62.7 54.3 104 97.0 109 111 118 107 122
45.0 110 118 105 102 115 108 109 107 117 109 107 107 104 64.4 53.6 87.4 99.3 50.4 58.3 95.2 86.6 89.2 82.1 80.7 78.9 87.3 84.2 87.2 99.3 97.6 91.3 105 94.3 100 93.6 96.4 92.2 88.6 87.5 79.1 50.4 52.4 90.0 91.5 92.2 97.2 94.7 101 104 100 105 106 90.4 97.8 51.9 59.3 97.1 95.8 96.5 91.8 90.6 88.8 90.1 60.0 52.5 90.7 90.4 97.3 107 108 107 118
47.5 98.6 102 96.2 93.5 103 96.5 97.7 93.3 103 97.0 94.7 94.2 92.2 62.6 53.0 81.8 89.6 49.3 59.0 83.7 80.2 82.3 77.7 74.6 74.4 79.4 82.5 82.4 98.7 90.9 90.1 99.6 96.4 99.1 97.5 96.5 99.6 94.1 95.8 83.3 50.0 52.0 97.0 94.4 99.3 99.2 96.5 96.9 104 93.2 101 97.6 91.2 91.7 50.0 58.3 98.7 101 96.2 96.6 87.4 91.0 86.1 59.7 51.5 84.6 82.1 87.2 91.5 94.5 93.3 99.0
50.0 90.2 93.8 89.2 90.1 93.7 92.6 90.8 88.7 96.8 98.9 93.4 98.3 93.5 63.8 52.7 88.4 93.5 47.9 63.7 84.8 84.9 84.2 81.9 76.0 80.0 83.0 90.2 89.1 109 99.0 97.8 108 104 106 104 105 102 101 96.8 89.3 49.7 52.5 103 104 105 111 104 107 113 100 108 104 100 98.1 48.9 56.3 102 101 102 102 96.1 100 95.3 62.0 50.3 91.7 84.1 89.0 88.5 95.5 88.1 95.9
52.5 95.8 102 92.9 95.2 96.0 101 95.2 96.8 107 106 104 106 103 63.7 52.0 89.1 96.0 46.9 67.7 92.8 88.1 89.0 83.1 78.8 81.5 88.3 90.0 92.3 103 100 93.2 108 97.0 102 95.5 98.8 92.2 90.8 84.6 80.2 49.8 52.5 90.6 95.4 95.3 104 96.0 104 104 99.7 104 106 96.7 98.0 48.4 54.4 90.3 90.1 95.0 91.7 94.0 93.5 101 63.7 49.9 97.0 92.8 97.1 101 108 96.4 108
55.0 98.7 101 94.6 94.0 98.5 100 99.0 95.2 109 103 103 98.4 100 63.0 52.4 77.6 84.2 45.9 64.5 88.3 78.2 83.1 75.4 74.8 75.0 81.9 80.6 82.7 91.6 90.3 86.7 97.6 90.6 94.8 88.4 90.2 85.0 81.1 72.3 68.2 50.0 52.7 76.7 84.1 83.2 91.2 86.2 91.4 92.1 88.7 91.7 92.2 85.5 86.0 47.9 52.9 83.3 84.1 86.3 81.8 82.4 82.8 88.3 61.1 50.1 84.8 90.4 91.8 104 102 99.0 104
57.5 90.6 86.9 88.7 83.6 92.5 90.5 91.2 86.0 97.5 88.3 90.4 82.6 82.5 59.0 52.1 64.8 68.3 45.0 59.2 73.9 67.9 72.0 68.9 68.3 68.2 72.9 72.8 75.3 85.5 83.5 83.2 90.7 85.9 88.3 84.4 85.2 85.6 77.1 72.4 63.3 49.7 52.0 74.9 75.3 78.1 82.5 81.0 86.7 87.5 82.5 84.5 82.7 78.8 77.1 47.6 53.5 80.8 85.2 80.7 78.8 75.0 74.1 75.7 56.9 49.9 69.5 79.3 78.8 89.3 86.2 88.6 88.9
60.0 81.0 75.9 78.3 76.3 81.5 81.5 82.1 79.4 83.9 82.1 79.1 76.8 69.2 58.6 51.9 65.4 60.8 44.3 60.9 65.4 71.8 69.4 71.0 66.8 69.7 71.9 75.7 73.8 89.4 82.7 87.1 91.8 91.4 91.5 88.1 90.8 94.2 86.0 81.5 71.2 49.7 52.1 85.9 83.7 88.8 89.5 91.1 92.4 97.1 88.1 96.5 87.4 87.5 80.5 47.6 53.2 91.3 96.2 86.1 87.6 79.5 81.9 75.6 58.6 49.9 68.3 71.0 74.5 74.7 78.2 78.7 84.8
62.5 88.1 84.9 80.2 85.5 86.9 89.0 86.9 87.0 90.3 92.7 86.3 86.5 77.8 59.8 52.8 72.4 65.8 43.4 68.9 76.2 79.6 77.8 76.9 72.0 76.1 79.1 83.8 82.6 99.6 91.5 94.1 100 98.2 100 92.8 98.3 99.4 94.0 84.0 76.4 49.8 53.2 89.2 94.1 94.7 101 97.6 104 107 98.4 103 98.2 93.8 89.9 47.8 52.2 95.8 97.8 95.0 93.9 89.4 91.9 86.8 62.7 50.0 77.4 79.3 84.8 81.6 88.1 83.7 99.6
65.0 98.0 89.4 87.9 89.2 92.7 92.6 92.2 89.9 98.4 95.7 93.5 89.7 82.9 60.2 52.7 72.7 66.8 42.0 71.4 80.5 81.4 81.0 77.0 74.1 77.4 83.1 84.2 86.5 99.0 94.5 92.9 101 96.4 101 91.6 97.4 97.1 93.0 82.7 74.3 49.3 53.0 86.9 94.4 92.8 100 95.0 103 102 97.6 99.8 98.1 91.8 90.6 48.0 50.9 91.2 93.6 94.1 92.4 91.0 92.5 90.5 63.5 49.3 79.0 87.6 89.8 91.9 93.6 90.8 105
67.5 97.8 89.9 87.3 88.5 92.9 93.4 92.5 90.4 97.8 95.6 93.3 89.5 81.8 60.1 52.6 69.5 63.1 40.9 70.0 78.1 79.7 79.4 75.2 73.7 76.7 82.1 82.5 84.8 95.8 92.0 90.1 96.5 92.4 96.4 89.1 94.0 92.4 90.2 81.1 70.9 49.0 52.8 84.1 93.3 91.3 95.1 90.4 96.8 96.4 93.5 95.8 93.8 88.1 86.8 48.0 49.4 83.7 84.6 89.9 88.5 89.0 90.6 88.2 62.4 49.0 75.2 87.6 88.8 91.9 92.0 90.3 104
70.0 95.6 89.4 86.2 86.8 93.6 93.7 93.1 91.1 97.2 95.0 92.9 88.3 80.2 60.0 53.0 65.5 58.6 39.8 66.4 74.3 76.2 77.1 71.5 72.4 73.8 79.4 76.2 80.5 86.4 86.8 82.2 86.3 81.8 86.0 81.6 84.1 82.3 82.9 77.6 67.3 48.4 52.8 80.1 92.4 85.8 88.9 81.4 86.8 85.5 86.5 86.1 88.1 80.1 79.9 47.5 48.6 75.1 77.1 80.8 78.5 82.8 84.9 85.3 59.8 48.7 69.9 86.0 85.6 88.8 88.3 88.6 100
72.5 91.2 88.0 84.9 83.8 93.9 92.9 92.9 89.6 94.3 90.5 90.1 85.6 77.0 59.3 52.8 59.4 53.2 38.2 57.6 65.5 68.3 70.8 66.5 66.8 66.9 70.7 68.0 71.2 78.0 78.6 77.4 77.7 76.0 77.6 75.4 75.7 80.0 79.5 78.6 61.9 47.8 51.8 78.0 87.7 84.3 80.3 78.7 78.4 80.0 78.7 81.1 78.9 74.2 69.9 47.1 48.3 73.0 76.4 75.5 75.1 76.4 80.3 77.2 55.0 48.0 62.0 81.1 78.3 82.8 81.7 84.6 89.5
75.0 91.4 92.7 86.1 86.9 95.2 96.5 93.5 92.8 92.2 93.1 88.4 86.5 75.5 59.6 52.4 59.1 50.2 36.7 56.8 64.0 70.1 69.2 66.7 65.1 66.8 68.7 67.9 68.7 78.5 77.3 80.0 76.8 78.4 77.6 79.2 77.8 83.5 83.2 82.5 62.7 46.9 50.9 80.2 92.4 87.1 83.2 83.3 81.4 84.3 81.7 85.2 81.2 75.7 71.2 46.9 48.3 79.3 84.4 80.8 80.4 78.4 83.4 78.2 54.3 47.1 60.6 79.5 79.5 78.0 89.8 83.6 94.0
77.5 96.1 96.0 91.0 90.7 101 102 98.4 97.0 97.1 96.1 91.6 88.5 77.4 59.6 51.9 58.3 49.3 35.1 56.7 64.7 71.3 70.5 67.5 65.3 68.3 70.6 69.2 70.2 80.3 80.2 81.7 79.8 80.1 81.7 80.9 82.1 87.1 88.9 83.7 62.5 45.6 49.6 81.6 96.1 92.6 90.3 91.2 90.1 91.0 88.5 90.8 86.8 81.1 77.4 46.9 48.4 86.4 88.5 88.5 86.0 85.1 88.7 81.1 53.2 46.0 60.0 81.4 86.9 86.8 103 95.4 104
80.0 101 95.8 92.2 89.5 102 101 101 97.1 98.5 96.8 92.9 88.1 77.5 58.4 50.4 56.6 47.7 32.9 56.5 64.8 71.8 71.2 68.0 65.8 68.8 71.8 70.0 71.3 81.8 82.2 83.3 80.5 81.1 81.4 81.4 80.5 85.7 86.9 81.9 60.1 43.2 47.6 79.9 95.4 90.3 89.9 88.9 90.3 87.3 87.6 86.9 85.4 77.0 76.5 45.6 46.0 84.2 84.8 87.1 83.0 84.3 85.1 78.9 51.4 44.5 58.0 81.6 86.0 92.2 105 102 106
82.5 97.2 92.1 89.1 86.1 99.1 98.1 99.6 95.2 97.6 94.4 91.5 85.4 75.5 56.0 48.0 53.8 45.1 30.8 55.1 63.9 70.8 70.8 66.8 65.1 68.4 72.2 70.2 71.4 81.8 83.1 83.6 81.0 81.0 82.1 82.2 81.0 84.4 85.1 78.2 57.2 41.1 45.5 77.1 91.9 87.7 85.0 83.5 85.0 82.0 82.0 80.9 80.4 72.4 71.1 44.1 44.1 78.9 80.0 82.5 78.1 80.2 82.5 76.4 49.3 42.2 56.0 80.2 83.0 90.4 103 99.0 99.8
85.0 94.5 87.7 83.8 81.0 93.9 93.7 95.6 91.3 94.3 90.6 88.5 82.3 72.5 53.3 45.7 50.9 41.8 28.4 53.2 62.3 69.5 69.5 65.3 63.8 67.5 72.1 70.1 70.7 81.2 83.2 83.4 80.7 80.7 81.9 81.8 80.6 82.4 81.9 74.8 54.8 39.7 43.8 74.4 88.2 85.3 84.7 82.2 80.0 78.6 77.2 79.5 78.5 71.9 68.9 43.3 43.1 75.6 78.0 79.4 77.2 78.7 80.6 73.2 47.6 40.6 54.3 78.5 82.3 87.5 99.2 94.2 93.0
87.5 92.2 84.9 78.6 75.7 88.5 89.7 91.3 87.7 90.0 87.0 85.4 78.7 69.0 50.6 43.7 47.8 38.5 26.2 52.1 60.5 67.9 67.9 63.8 62.5 66.2 71.3 69.5 69.6 80.0 82.6 83.0 80.2 80.4 81.5 81.8 80.0 81.0 79.2 73.0 53.4 38.5 42.8 71.4 85.3 84.0 85.2 83.9 81.4 80.9 78.3 81.7 79.1 71.6 70.1 43.5 41.4 75.1 77.6 79.3 77.1 78.2 78.8 70.7 46.4 39.1 52.7 77.4 82.8 84.9 94.8 90.3 90.1
90.0 92.9 85.1 75.1 71.7 84.1 86.5 88.3 84.9 86.6 84.7 82.6 75.2 65.4 48.4 42.1 45.4 35.6 23.9 50.7 58.6 65.9 66.6 62.1 61.1 64.5 70.4 68.3 68.4 78.6 82.5 82.5 79.6 79.9 81.1 81.4 79.7 79.4 77.3 73.1 53.4 37.2 41.8 70.0 83.2 83.4 85.5 86.2 83.6 83.6 80.9 84.2 80.6 69.9 70.3 43.4 40.6 75.3 77.7 79.2 77.1 78.1 77.6 69.0 45.4 37.6 51.5 77.0 83.1 84.5 92.0 88.7 89.3
92.5 95.2 87.3 73.9 70.2 81.3 85.3 86.3 83.4 84.6 82.6 80.3 72.8 62.4 46.9 40.4 43.8 33.0 23.3 49.3 56.3 64.4 64.7 61.2 59.7 63.9 69.4 68.2 67.2 78.5 82.5 82.9 79.9 80.3 81.4 82.3 80.2 79.4 77.2 75.4 54.8 37.0 41.9 71.3 84.4 84.8 86.3 88.5 87.0 87.1 84.6 88.1 83.9 71.6 73.2 44.9 40.9 76.5 78.5 80.2 78.1 78.6 77.2 68.3 45.2 36.6 51.3 77.2 83.6 83.8 91.9 90.3 89.5
95.0 96.0 88.7 74.7 69.2 80.4 83.7 85.2 81.4 83.3 80.2 78.4 70.4 61.0 45.9 39.8 42.1 31.6 22.7 48.7 54.7 62.3 63.2 59.4 58.5 62.5 68.2 66.5 66.1 77.3 82.1 82.0 79.5 79.1 81.3 81.8 80.1 78.4 77.5 76.9 55.5 36.3 41.7 71.1 85.8 84.7 87.0 88.6 88.4 88.0 85.5 89.3 86.6 72.3 74.7 44.5 39.7 76.0 77.1 79.6 76.7 77.8 75.3 67.5 44.0 36.0 49.7 76.8 81.0 81.8 89.0 90.1 87.3
97.5 93.0 85.8 73.7 66.7 78.0 79.7 81.5 77.2 80.0 75.9 75.0 67.1 58.7 44.1 38.4 40.0 29.6 21.6 46.8 52.6 58.9 60.2 56.4 56.4 59.6 65.2 62.9 63.6 74.7 79.3 78.6 77.1 75.9 78.6 78.6 77.7 75.2 76.3 74.9 54.5 34.8 40.4 68.4 83.8 80.9 85.4 85.1 86.5 84.3 83.7 85.1 85.6 71.0 73.1 42.3 37.3 72.2 72.0 75.9 72.4 74.1 70.7 64.5 41.7 34.7 47.3 73.0 75.3 77.3 82.4 84.5 80.3
100.0 82.6 76.4 69.2 61.6 73.0 71.2 74.3 68.9 73.6 69.2 69.2 61.1 55.1 40.0 36.1 36.5 26.7 19.3 43.7 49.3 53.3 55.7 50.8 53.0 54.0 60.8 55.7 59.5 67.4 74.3 71.2 71.8 69.8 72.8 70.8 71.8 69.4 71.5 67.4 50.2 30.7 36.6 60.1 76.2 70.9 78.2 75.3 78.4 72.6 75.4 75.5 78.9 62.8 66.5 36.2 31.1 63.8 60.3 68.3 63.6 66.9 60.7 57.4 36.5 31.3 40.9 64.1 65.9 69.8 70.6 75.8 69.4
102.5 62.6 47.4 55.3 42.1 58.3 47.3 58.0 45.3 60.9 48.0 54.5 41.8 44.1 29.4 30.4 26.4 23.4 16.0 36.7 38.6 35.8 46.3 37.5 44.2 36.5 48.5 39.3 49.4 46.6 62.1 48.1 57.2 49.0 59.5 49.6 55.8 48.0 57.8 44.7 38.4 20.0 27.0 36.7 56.1 43.2 55.3 44.4 54.6 41.3 50.3 41.0 57.2 35.7 46.7 21.2 17.1 40.5 27.4 46.0 32.3 45.0 30.1 39.3 22.4 22.5 24.3 43.0 38.1 52.6 40.2 54.7 44.2
105.0 23.9 17.7 26.6 17.0 29.9 19.7 26.9 20.0 31.1 18.6 27.3 16.9 26.0 15.1 16.3 13.4 14.4 10.0 17.6 17.7 15.5 20.6 15.5 20.5 15.8 23.0 18.3 27.0 16.9 30.9 19.6 26.0 17.2 28.4 18.5 26.2 17.5 27.6 15.3 17.6 11.6 14.3 12.2 19.7 12.9 20.5 13.0 18.5 12.7 16.5 11.4 18.7 11.6 15.3 9.1 8.5 12.9 10.5 14.4 10.4 14.2 11.4 16.0 10.7 12.7 11.1 18.6 13.0 19.4 15.3 23.3 14.4
107.5 11.3 9.9 11.4 10.0 11.4 10.1 11.2 10.1 11.5 9.7 11.4 9.2 10.2 8.3 9.0 7.6 8.6 7.1 8.6 8.5 7.9 9.0 8.0 9.3 8.4 10.1 8.8 10.3 9.2 10.4 9.5 10.8 8.9 10.9 9.2 10.4 8.9 9.8 8.5 9.4 8.1 9.1 8.3 9.1 8.1 9.2 8.2 9.2 7.8 8.6 7.6 8.3 7.3 7.5 6.5 6.0 7.2 6.8 7.7 6.9 7.9 7.4 8.5 7.5 8.6 7.8 9.8 8.6 10.1 9.5 10.9 9.9
110.0 8.3 7.7 8.3 7.8 8.5 7.9 8.4 7.8 8.3 7.8 7.9 7.2 7.3 6.5 6.8 6.1 6.3 5.7 6.1 6.2 6.0 6.5 6.2 6.7 6.4 7.0 6.8 7.3 6.9 7.4 7.2 7.6 7.0 7.5 7.0 7.4 7.0 7.4 6.8 7.2 6.7 7.3 7.1 7.3 6.7 7.2 6.8 7.1 6.5 6.8 6.3 6.6 6.0 6.1 5.4 5.0 5.6 5.6 6.2 5.9 6.3 6.1 6.7 6.3 6.9 6.7 7.6 7.1 7.7 7.3 8.0 7.5
112.5 6.7 6.2 6.8 6.4 7.0 6.4 6.9 6.3 6.8 6.3 6.6 6.0 6.1 5.5 5.8 5.3 5.4 4.9 5.1 5.3 5.0 5.5 5.3 5.7 5.2 5.9 5.4 5.9 5.5 6.0 5.8 6.0 5.7 6.1 5.7 6.0 5.7 6.1 5.7 5.9 5.6 5.9 5.8 5.9 5.5 5.8 5.6 5.7 5.3 5.5 5.1 5.3 4.9 5.0 4.6 4.2 4.6 4.5 5.0 4.9 5.2 5.1 5.6 5.5 5.8 5.7 6.2 5.9 6.4 6.0 6.4 6.0
115.0 5.7 5.3 5.7 5.4 5.9 5.7 5.9 5.5 5.7 5.5 5.7 5.2 5.3 5.0 5.0 4.7 4.7 4.4 4.5 4.6 4.4 4.8 4.6 4.8 4.7 4.9 4.8 5.0 4.8 5.0 5.0 5.1 4.8 5.1 4.9 5.1 4.9 5.1 4.9 5.1 4.8 5.2 4.9 5.1 4.8 5.1 4.8 5.0 4.7 4.9 4.5 4.6 4.3 4.4 3.9 3.6 4.0 3.9 4.3 4.2 4.6 4.5 4.9 4.7 5.1 4.9 5.4 5.1 5.5 5.3 5.5 5.1
117.5 4.8 4.6 4.8 4.7 5.0 4.9 5.2 4.9 5.0 4.8 4.9 4.7 4.7 4.4 4.4 4.1 4.1 3.8 3.9 4.0 3.9 4.2 4.0 4.2 4.1 4.2 4.2 4.2 4.1 4.3 4.4 4.4 4.2 4.4 4.2 4.3 4.2 4.4 4.2 4.5 4.2 4.5 4.3 4.5 4.3 4.5 4.4 4.5 4.3 4.4 4.1 4.1 3.8 3.8 3.4 3.3 3.5 3.7 3.9 3.9 4.1 4.1 4.3 4.2 4.4 4.4 4.8 4.5 4.7 4.6 4.8 4.5
120.0 4.0 3.6 4.1 3.8 4.5 4.5 4.7 4.6 4.6 4.5 4.6 4.5 4.3 4.2 4.1 4.0 3.7 3.5 3.4 3.6 3.7 3.8 3.9 3.9 3.8 3.9 3.7 3.8 3.6 3.9 3.9 3.9 3.8 3.8 3.7 3.6 3.5 3.8 3.9 3.9 3.8 4.0 4.0 4.0 4.0 4.0 4.1 4.1 4.1 4.1 4.0 3.8 3.1 3.3 2.8 2.9 3.4 3.4 3.7 3.4 3.7 3.5 4.0 3.7 4.1 4.2 4.4 4.2 4.3 4.1 4.3 3.6
122.5 2.7 2.9 2.8 3.2 3.8 4.1 4.2 4.3 4.3 4.2 4.3 4.3 4.1 3.9 3.9 4.0 4.0 3.5 2.9 3.7 3.9 4.0 3.9 3.8 3.6 3.6 3.3 3.0 3.0 3.4 3.5 3.5 3.5 3.6 3.4 2.9 2.9 3.6 3.7 3.8 3.6 3.6 3.8 3.9 3.8 3.9 4.0 3.9 4.0 3.9 3.9 3.4 2.7 2.7 2.4 2.8 3.2 3.4 3.3 3.4 3.2 3.5 3.7 3.7 3.7 4.2 4.1 4.2 3.9 4.1 3.6 3.0
125.0 2.7 2.8 2.8 3.2 4.0 4.1 4.4 4.2 4.3 4.2 4.4 4.2 4.2 3.9 3.9 4.0 3.9 3.4 2.7 3.5 3.8 4.0 3.9 3.8 3.6 3.5 3.3 2.9 3.0 3.3 3.4 3.4 3.4 3.5 3.2 2.7 2.7 3.4 3.5 3.6 3.4 3.5 3.6 3.8 3.7 3.9 3.8 3.9 3.8 4.0 3.7 3.4 2.8 2.8 2.4 2.5 3.1 3.0 3.2 3.1 3.2 3.1 3.8 3.5 3.9 4.1 4.4 4.1 4.3 4.0 3.8 2.9
127.5 2.6 2.7 2.8 3.0 3.5 3.5 3.8 3.5 3.6 3.4 3.8 3.3 3.6 3.2 3.5 3.3 3.5 2.8 2.6 3.1 3.2 3.6 3.4 3.4 3.0 3.2 3.0 2.8 2.8 3.0 3.0 3.1 2.8 3.0 2.6 2.4 2.4 2.7 2.7 3.0 2.7 3.0 2.9 3.1 2.9 3.2 3.1 3.2 3.1 3.3 3.2 3.1 2.8 2.7 2.4 2.4 2.7 2.7 2.8 2.6 2.7 2.8 3.2 3.0 3.4 3.3 3.7 3.4 3.7 3.4 3.4 2.7
130.0 2.5 2.6 2.7 2.7 3.0 2.9 3.2 3.0 3.0 2.9 3.1 2.8 2.8 2.5 2.8 2.7 2.7 2.5 2.4 2.8 2.7 2.9 2.8 2.8 2.6 2.8 2.8 2.7 2.7 2.7 2.7 2.6 2.5 2.5 2.3 2.4 2.4 2.4 2.4 2.5 2.4 2.5 2.6 2.7 2.7 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.6 2.4 2.5 2.5 2.6 2.5 2.5 2.5 2.6 2.7 2.7 2.8 2.9 3.0 2.9 2.9 2.9 2.8 2.6
132.5 2.6 2.7 2.9 2.8 3.0 3.0 3.1 3.1 3.0 3.1 3.0 2.8 2.5 2.4 2.6 2.7 2.6 2.5 2.4 2.7 2.6 2.6 2.7 2.5 2.6 2.6 2.8 2.7 2.6 2.5 2.6 2.5 2.5 2.3 2.3 2.4 2.4 2.3 2.4 2.4 2.3 2.4 2.6 2.6 2.7 2.7 2.9 2.8 2.8 2.8 2.9 2.9 2.9 2.6 2.4 2.5 2.5 2.6 2.5 2.5 2.5 2.6 2.7 2.7 2.7 2.8 2.9 2.9 2.9 2.9 2.8 2.7
135.0 2.6 2.7 2.9 2.9 3.0 3.1 3.1 3.2 3.1 3.1 3.0 2.8 2.5 2.5 2.7 2.8 2.7 2.5 2.5 2.8 2.6 2.6 2.7 2.5 2.5 2.6 2.7 2.7 2.6 2.5 2.6 2.5 2.4 2.2 2.2 2.4 2.4 2.3 2.4 2.4 2.4 2.4 2.6 2.7 2.7 2.8 2.9 2.8 2.8 2.8 2.8 2.9 2.9 2.6 2.5 2.5 2.6 2.6 2.5 2.5 2.5 2.6 2.7 2.7 2.8 2.8 2.9 2.9 3.0 3.0 2.8 2.8
137.5 2.9 3.2 3.2 3.3 3.2 3.5 3.3 3.4 3.3 3.4 3.2 3.1 2.7 2.7 2.7 2.9 2.8 2.6 2.6 3.0 2.8 2.7 2.8 2.7 2.7 2.7 2.8 2.7 2.7 2.6 2.7 2.6 2.4 2.3 2.3 2.4 2.5 2.4 2.5 2.5 2.5 2.5 2.8 2.8 2.9 2.8 3.0 2.9 2.9 2.8 2.9 3.0 3.0 2.7 2.6 2.6 2.6 2.7 2.6 2.7 2.7 2.9 2.9 3.0 2.9 3.2 3.2 3.4 3.3 3.4 3.1 3.0
140.0 3.5 4.3 3.9 4.2 3.9 4.5 4.0 4.3 3.9 4.2 3.7 3.6 3.1 3.2 3.0 3.1 2.9 2.8 2.8 3.2 3.1 2.9 3.0 2.8 2.9 2.8 3.0 2.8 2.9 2.7 2.9 2.6 2.6 2.4 2.5 2.5 2.6 2.6 2.7 2.6 2.7 2.7 3.0 3.0 3.2 3.1 3.4 3.2 3.2 3.1 3.3 3.1 3.4 3.0 2.9 2.9 2.9 3.3 3.2 3.7 3.2 3.9 3.5 3.9 3.5 4.2 3.9 4.4 4.0 4.8 3.8 3.5
142.5 4.9 6.7 5.7 6.6 5.5 6.6 5.6 6.2 5.1 5.7 4.7 4.8 3.9 4.0 3.5 3.5 3.1 3.1 3.3 3.8 4.0 3.6 3.9 3.5 3.6 3.3 3.5 3.2 3.3 3.0 3.3 2.9 2.9 2.7 2.9 2.7 2.7 2.7 2.9 2.8 3.0 3.0 3.4 3.4 3.8 3.6 4.0 3.8 4.4 3.8 4.6 4.1 4.6 3.9 3.8 3.5 3.8 5.1 4.6 5.4 5.0 5.6 4.9 5.3 4.8 5.8 5.8 7.0 6.1 7.3 5.5 4.5
145.0 6.7 10.2 9.4 11.0 9.7 11.1 9.0 10.0 7.9 9.2 6.8 7.2 5.3 5.4 4.2 3.9 3.3 3.5 3.8 4.7 5.1 4.6 4.8 4.4 4.7 4.0 4.3 3.8 4.0 3.6 3.8 3.4 3.6 3.2 3.5 2.9 2.9 2.8 3.3 3.2 3.6 3.5 4.5 4.2 5.4 5.0 6.2 5.5 6.6 6.1 7.3 6.3 7.4 5.8 4.9 4.7 5.8 7.8 7.3 9.2 7.8 8.9 7.5 7.9 6.9 8.6 8.7 10.9 10.2 11.4 7.8 6.1
147.5 8.7 13.6 13.8 15.2 14.4 16.3 14.2 14.8 12.7 13.2 10.5 10.0 7.7 7.3 5.4 4.5 3.7 4.3 4.8 6.2 7.6 6.5 7.3 6.1 6.5 5.6 6.1 5.1 5.8 4.8 5.7 4.6 5.3 4.7 4.9 3.8 3.5 3.1 4.1 4.3 5.0 4.9 6.6 6.4 7.7 7.7 10.0 9.0 10.9 9.8 11.4 9.9 11.5 8.5 5.9 5.6 8.1 11.9 10.8 12.7 11.2 12.1 10.6 10.4 9.5 11.3 12.1 13.7 14.0 14.5 10.1 7.0
150.0 9.4 14.0 16.4 17.5 17.7 18.6 18.2 18.1 16.9 16.6 14.2 13.2 10.6 9.7 6.9 5.1 4.2 5.0 6.5 8.1 10.8 9.6 10.3 9.0 9.4 8.1 9.1 7.5 8.8 7.4 8.8 7.4 8.5 7.0 7.6 5.2 4.1 3.5 4.9 5.7 7.0 7.1 8.8 8.9 11.0 11.0 13.4 13.3 15.1 13.9 15.4 14.2 14.1 10.8 7.0 6.4 9.8 13.5 14.5 14.8 14.0 13.4 12.4 11.3 11.1 11.9 13.9 14.7 15.8 14.6 10.7 7.3
152.5 8.8 11.0 15.4 15.1 17.4 17.0 18.5 17.2 17.5 15.6 15.2 12.9 11.7 9.5 7.5 5.4 4.7 5.6 7.5 8.8 11.2 12.2 12.2 11.8 11.8 11.2 11.8 10.8 12.3 10.8 12.2 10.7 11.4 10.3 10.0 6.8 4.9 4.0 5.5 7.2 8.5 9.1 10.7 11.3 12.9 13.7 15.6 15.8 16.8 16.6 16.9 16.5 14.6 11.7 7.2 6.4 9.5 12.0 14.3 12.8 13.2 11.2 11.5 9.2 9.9 9.3 11.9 10.6 12.9 10.2 9.0 6.5
155.0 6.6 7.4 10.3 9.2 12.5 10.7 13.3 11.7 13.5 11.1 12.3 10.0 10.0 7.5 6.5 4.9 4.7 5.3 7.5 8.3 9.4 11.7 11.1 12.5 11.9 12.7 12.5 11.8 12.9 12.4 12.8 12.7 12.4 11.9 10.3 7.6 5.4 4.3 5.2 7.1 8.3 9.7 10.2 11.6 11.9 13.6 13.3 15.1 13.8 14.9 13.5 14.4 10.8 9.9 6.5 5.6 7.5 8.2 10.3 8.5 9.4 7.6 8.1 6.7 7.3 6.5 7.8 6.8 7.9 6.4 6.4 5.3
157.5 5.2 5.1 6.8 6.4 7.6 7.2 8.1 7.2 8.4 7.0 8.1 6.3 6.6 5.1 5.1 4.2 4.3 4.7 6.0 6.2 6.3 8.8 8.2 9.7 8.8 10.0 9.3 11.1 10.5 11.8 11.0 11.9 10.5 11.1 8.4 7.1 5.1 4.3 4.6 6.0 6.5 8.0 8.0 9.2 8.4 10.3 9.3 10.3 9.1 10.4 8.5 9.6 7.5 7.0 5.2 4.5 5.4 5.2 6.4 5.9 6.5 5.2 6.0 5.1 5.4 5.0 5.6 5.0 5.4 4.7 4.8 4.4
160.0 4.3 4.4 4.9 4.8 5.3 5.2 5.6 5.0 5.7 5.0 5.2 4.4 4.7 3.9 3.8 3.6 3.8 3.9 4.7 4.5 4.5 5.4 5.1 6.1 5.5 6.9 6.4 7.5 6.5 7.9 7.1 8.1 6.9 7.8 5.9 5.5 4.3 3.9 3.8 4.7 4.7 5.8 5.6 6.7 6.0 7.1 6.2 7.1 6.0 6.8 5.7 6.1 4.9 5.0 4.2 3.6 4.1 4.1 4.6 4.1 4.4 4.2 4.4 4.1 4.3 4.0 4.4 3.9 4.2 3.8 4.1 3.8
162.5 3.9 4.0 4.1 4.2 4.4 4.4 4.7 4.4 4.5 4.2 4.1 3.7 3.7 3.4 3.4 3.3 3.4 3.4 3.8 3.7 3.6 4.2 3.9 4.5 4.1 4.9 4.5 5.2 4.7 5.5 5.0 5.6 4.9 5.1 4.2 4.1 3.5 3.4 3.2 3.6 3.6 4.3 3.9 4.6 4.3 4.7 4.5 4.9 4.4 4.8 4.2 4.6 4.0 4.2 3.6 3.3 3.5 3.5 3.7 3.6 3.7 3.7 3.9 3.7 3.9 3.6 3.8 3.5 3.6 3.6 3.7 3.8
165.0 3.7 3.5 4.1 4.1 4.3 4.3 4.2 4.0 3.9 3.7 3.6 3.2 3.2 3.1 3.2 3.1 3.3 3.3 3.5 3.4 3.4 3.5 3.5 3.7 3.7 3.7 3.8 3.8 3.7 3.8 3.7 3.9 3.6 3.6 3.4 3.3 3.1 3.1 3.0 3.1 3.1 3.3 3.3 3.5 3.5 3.8 3.7 3.9 3.8 3.8 3.7 3.8 3.6 3.5 3.6 2.7 3.0 2.9 3.0 3.1 3.2 3.1 3.4 3.1 3.3 3.0 3.2 2.8 3.2 2.9 3.2 3.1
167.5 2.9 2.4 3.1 3.0 3.2 3.0 3.5 2.9 3.6 3.0 3.3 2.7 2.9 2.7 2.9 2.7 3.1 3.0 3.3 3.2 3.1 3.2 3.2 3.2 3.2 3.5 3.4 3.7 3.4 3.6 3.4 3.5 3.2 3.1 3.0 3.0 2.9 2.8 2.7 2.8 2.7 2.9 2.8 3.1 3.0 3.4 3.2 3.5 3.2 3.4 3.1 3.6 2.6 2.8 2.7 2.1 2.3 2.2 2.4 2.1 2.4 2.2 2.5 2.1 2.4 2.2 2.4 2.0 2.3 2.0 2.5 2.1
170.0 1.8 1.6 1.9 1.6 1.9 1.8 2.0 1.8 2.3 1.8 2.2 1.9 2.1 1.8 2.2 2.0 2.3 2.0 2.5 2.5 2.3 2.8 2.5 3.1 2.8 3.4 2.9 3.3 3.1 3.3 3.0 3.1 2.7 2.9 2.5 2.7 2.3 2.5 2.3 2.4 2.2 2.5 2.2 2.5 2.2 2.7 2.4 2.6 2.2 2.5 2.1 2.4 1.9 2.0 1.8 1.4 1.6 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.7 1.5 1.6 1.5
172.5 1.4 1.3 1.4 1.3 1.4 1.4 1.5 1.4 1.5 1.4 1.5 1.3 1.4 1.3 1.5 1.3 1.4 1.4 1.6 1.7 1.5 1.8 1.6 2.0 1.7 2.1 1.8 2.2 1.8 2.4 1.7 2.1 1.6 2.0 1.7 1.9 1.7 1.7 1.6 1.7 1.5 1.7 1.5 1.8 1.6 1.8 1.6 1.7 1.5 1.7 1.5 1.6 1.4 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.3 1.2
175.0 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.3 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.2 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.3 1.4 1.2 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.3 1.4 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.1
177.5 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.1 1.2 1.1 1.2 1.2 1.1 1.2 1.2 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.2 1.1 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
180.0 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
