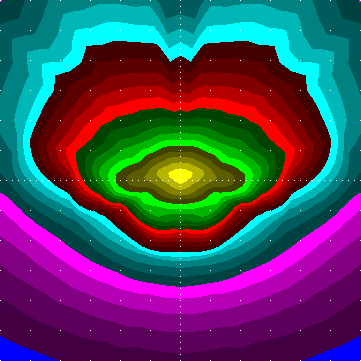

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST] AR15S02S.LDT
# [LUMINAIRE] ALL2-3ER-7B
# [LUMCAT] Alliance
# [DATE] 26/11/2012/
# down given: 98%
# out given: 69.4%
# tilt: 0.0
# [LAMP] 1 ST 150 17500 1950 E40
# Bulbs: 1, 17500 lm each
# Source file: Alliance_ALL2-3ER-7B_1_ST_150_17500_1950_E40.ldt
# Luminaire flux = 694 raw, for the given bulb(s) it would be 12145 lm,
# 69.4 % of the bulb flux
# between 75 and 90: 3.7 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 53.2 cd / 1000 lm , 3.5 % of the luminaire flux
# 90deg and above: max 5.4 cd / 1000 lm , 2.3 % of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 40 %
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 119 %
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 434 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 310 cd / 1000 lm,
# maximum spec. lum. intensity 434 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237 237
5.0 235 243 242 247 251 249 256 255 256 257 262 257 261 264 259 262 259 260 262 260 259 262 259 264 261 257 262 257 256 255 256 249 251 247 242 243 235 235 233 234 230 225 223 221 222 220 221 216 216 214 212 210 209 210 213 210 209 210 212 214 216 216 221 220 222 221 223 225 230 234 233 235
10.0 216 224 230 241 244 249 254 258 264 269 280 275 284 283 279 279 278 278 285 278 278 279 279 283 284 275 280 269 264 258 254 249 244 241 230 224 216 215 209 205 200 193 190 188 187 184 185 181 179 180 179 177 175 175 174 175 175 177 179 180 179 181 185 184 187 188 190 193 200 205 209 215
15.0 203 215 225 237 243 248 259 262 267 273 282 273 281 283 281 278 276 279 276 279 276 278 281 283 281 273 282 273 267 262 259 248 243 237 225 215 203 199 189 183 178 169 166 161 159 158 159 155 154 154 152 151 151 150 153 150 151 151 152 154 154 155 159 158 159 161 166 169 178 183 189 199
20.0 197 211 224 239 251 255 267 267 267 270 269 262 264 261 258 256 255 252 258 252 255 256 258 261 264 262 269 270 267 267 267 255 251 239 224 211 197 186 176 171 164 157 154 152 150 146 147 142 141 141 140 140 139 139 139 139 139 140 140 141 141 142 147 146 150 152 154 157 164 171 176 186
25.0 192 208 231 246 258 261 269 270 264 262 253 244 238 239 232 229 223 225 224 225 223 229 232 239 238 244 253 262 264 270 269 261 258 246 231 208 192 178 168 161 152 146 142 139 137 134 133 129 126 127 124 124 121 120 121 120 121 124 124 127 126 129 133 134 137 139 142 146 152 161 168 178
30.0 205 227 249 269 273 273 271 260 248 242 233 223 218 217 214 207 203 202 204 202 203 207 214 217 218 223 233 242 248 260 271 273 273 269 249 227 205 192 178 167 151 141 134 131 127 122 119 111 109 104 99.8 95.6 95.2 93.2 94.7 93.2 95.2 95.6 99.8 104 109 111 119 122 127 131 134 141 151 167 178 192
35.0 204 225 253 285 291 289 271 247 235 214 210 205 198 197 194 188 181 182 181 182 181 188 194 197 198 205 210 214 235 247 271 289 291 285 253 225 204 189 176 162 145 134 127 121 114 108 102 92.8 87.8 82.7 78.7 75.9 74.8 73.5 74.1 73.5 74.8 75.9 78.7 82.7 87.8 92.8 102 108 114 121 127 134 145 162 176 189
40.0 209 232 250 273 273 265 251 234 216 198 190 180 178 174 168 161 156 152 155 152 156 161 168 174 178 180 190 198 216 234 251 265 273 273 250 232 209 195 178 156 135 123 118 109 101 92.4 86.7 77.7 75.1 70.1 66.4 64.0 62.5 62.3 61.7 62.3 62.5 64.0 66.4 70.1 75.1 77.7 86.7 92.4 101 109 118 123 135 156 178 195
45.0 238 253 256 268 269 253 222 203 193 181 170 159 154 151 144 138 133 130 130 130 133 138 144 151 154 159 170 181 193 203 222 253 269 268 256 253 238 221 187 150 124 110 103 96.3 89.1 82.7 75.7 68.9 65.0 61.2 56.1 51.9 49.2 49.4 48.6 49.4 49.2 51.9 56.1 61.2 65.0 68.9 75.7 82.7 89.1 96.3 103 110 124 150 187 221
50.0 292 305 293 271 251 222 209 190 174 156 147 140 134 133 124 119 112 109 108 109 112 119 124 133 134 140 147 156 174 190 209 222 251 271 293 305 292 249 185 138 112 101 95.0 89.1 81.9 75.1 69.2 63.1 59.7 53.9 47.7 43.1 39.9 39.1 40.2 39.1 39.9 43.1 47.7 53.9 59.7 63.1 69.2 75.1 81.9 89.1 95.0 101 112 138 185 249
55.0 343 345 318 266 224 188 179 166 155 128 121 114 114 110 107 97.6 93.1 90.3 90.6 90.3 93.1 97.6 107 110 114 114 121 128 155 166 179 188 224 266 318 345 343 323 256 180 138 120 112 101 92.5 86.4 79.6 71.1 64.1 52.6 47.5 41.3 35.1 36.0 39.6 36.0 35.1 41.3 47.5 52.6 64.1 71.1 79.6 86.4 92.5 101 112 120 138 180 256 323
60.0 431 428 362 290 221 170 154 142 129 112 105 95.4 93.4 90.6 86.7 82.3 76.3 74.1 74.3 74.1 76.3 82.3 86.7 90.6 93.4 95.4 105 112 129 142 154 170 221 290 362 428 431 393 308 205 115 78.3 67.2 60.0 53.8 49.0 44.7 38.9 36.0 31.6 26.9 22.6 18.9 15.6 16.3 15.6 18.9 22.6 26.9 31.6 36.0 38.9 44.7 49.0 53.8 60.0 67.2 78.3 115 205 308 393
65.0 434 428 352 289 234 197 168 138 113 98.4 92.7 88.9 84.5 78.5 73.9 70.8 60.9 54.2 58.2 54.2 60.9 70.8 73.9 78.5 84.5 88.9 92.7 98.4 113 138 168 197 234 289 352 428 434 390 279 141 46.4 21.0 15.8 13.7 12.3 12.0 11.9 12.1 13.6 12.8 11.8 10.4 8.7 8.2 8.1 8.2 8.7 10.4 11.8 12.8 13.6 12.1 11.9 12.0 12.3 13.7 15.8 21.0 46.4 141 279 390
70.0 235 310 297 246 190 146 142 143 117 103 88.0 78.1 74.7 68.0 61.9 59.4 48.8 37.8 44.2 37.8 48.8 59.4 61.9 68.0 74.7 78.1 88.0 103 117 143 142 146 190 246 297 310 235 147 72.2 30.2 13.0 8.7 7.1 6.1 5.3 4.6 4.2 3.7 3.5 3.1 2.9 2.7 2.5 2.5 2.6 2.5 2.5 2.7 2.9 3.1 3.5 3.7 4.2 4.6 5.3 6.1 7.1 8.7 13.0 30.2 72.2 147
75.0 40.8 75.7 126 161 127 113 110 95.9 85.7 92.9 76.0 70.3 62.5 56.9 48.6 46.4 40.4 23.7 29.7 23.7 40.4 46.4 48.6 56.9 62.5 70.3 76.0 92.9 85.7 95.9 110 113 127 161 126 75.7 40.8 22.4 11.8 7.2 4.9 3.7 3.2 2.8 2.5 2.2 2.0 1.8 1.7 1.6 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.6 1.7 1.8 2.0 2.2 2.5 2.8 3.2 3.7 4.9 7.2 11.8 22.4
80.0 10.4 13.9 16.0 23.0 28.7 30.8 32.7 34.9 51.2 35.6 37.8 53.2 44.9 42.9 36.5 30.4 28.4 12.2 13.5 12.2 28.4 30.4 36.5 42.9 44.9 53.2 37.8 35.6 51.2 34.9 32.7 30.8 28.7 23.0 16.0 13.9 10.4 6.8 4.7 3.7 3.0 2.5 2.2 1.9 1.7 1.6 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.6 1.7 1.9 2.2 2.5 3.0 3.7 4.7 6.8
85.0 4.4 5.4 6.2 6.8 7.7 7.7 7.6 8.3 8.5 10.7 17.6 15.0 14.5 13.6 13.3 11.5 9.7 6.8 6.1 6.8 9.7 11.5 13.3 13.6 14.5 15.0 17.6 10.7 8.5 8.3 7.6 7.7 7.7 6.8 6.2 5.4 4.4 3.6 3.0 2.8 2.4 2.1 1.9 1.7 1.6 1.4 1.3 1.2 1.1 1.1 1.0 0.9 0.9 0.9 1.0 0.9 0.9 0.9 1.0 1.1 1.1 1.2 1.3 1.4 1.6 1.7 1.9 2.1 2.4 2.8 3.0 3.6
90.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
95.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
100.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
105.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
110.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
115.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
120.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
125.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
130.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
135.0 2.9 3.2 3.3 3.4 3.4 3.3 3.3 3.4 3.5 3.6 4.5 4.8 5.4 5.1 4.7 4.3 4.4 3.6 3.2 3.6 4.4 4.3 4.7 5.1 5.4 4.8 4.5 3.6 3.5 3.4 3.3 3.3 3.4 3.4 3.3 3.2 2.9 2.7 2.6 2.5 2.3 2.1 1.9 1.8 1.7 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.3 2.5 2.6 2.7
140.0 2.6 2.8 2.9 3.0 3.0 2.9 2.9 3.0 3.1 3.2 4.0 4.3 4.8 4.5 4.2 3.8 3.9 3.2 2.8 3.2 3.9 3.8 4.2 4.5 4.8 4.3 4.0 3.2 3.1 3.0 2.9 2.9 3.0 3.0 2.9 2.8 2.6 2.4 2.3 2.2 2.0 1.9 1.7 1.6 1.5 1.3 1.2 1.2 1.1 1.0 1.0 0.9 0.9 0.9 1.0 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.3 1.5 1.6 1.7 1.9 2.0 2.2 2.3 2.4
145.0 2.3 2.5 2.6 2.6 2.6 2.6 2.6 2.6 2.7 2.8 3.5 3.7 4.2 4.0 3.7 3.3 3.4 2.8 2.5 2.8 3.4 3.3 3.7 4.0 4.2 3.7 3.5 2.8 2.7 2.6 2.6 2.6 2.6 2.6 2.6 2.5 2.3 2.1 2.0 1.9 1.8 1.6 1.5 1.4 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.9 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 2.0 2.1
150.0 1.9 2.1 2.2 2.3 2.3 2.2 2.2 2.3 2.3 2.4 3.0 3.2 3.6 3.4 3.1 2.9 2.9 2.4 2.1 2.4 2.9 2.9 3.1 3.4 3.6 3.2 3.0 2.4 2.3 2.3 2.2 2.2 2.3 2.3 2.2 2.1 1.9 1.8 1.7 1.7 1.5 1.4 1.3 1.2 1.1 1.0 0.9 0.9 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.7 1.7 1.8
155.0 1.6 1.8 1.8 1.9 1.9 1.8 1.8 1.9 1.9 2.0 2.5 2.7 3.0 2.8 2.6 2.4 2.4 2.0 1.8 2.0 2.4 2.4 2.6 2.8 3.0 2.7 2.5 2.0 1.9 1.9 1.8 1.8 1.9 1.9 1.8 1.8 1.6 1.5 1.4 1.4 1.3 1.2 1.1 1.0 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.4 1.5
160.0 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.6 2.0 2.1 2.4 2.3 2.1 1.9 2.0 1.6 1.4 1.6 2.0 1.9 2.1 2.3 2.4 2.1 2.0 1.6 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.2 1.2 1.1 1.0 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.5 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.8 0.9 1.0 1.1 1.2 1.2
165.0 1.0 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.2 1.5 1.6 1.8 1.7 1.6 1.4 1.5 1.2 1.1 1.2 1.5 1.4 1.6 1.7 1.8 1.6 1.5 1.2 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.0 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.4 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9
170.0 0.6 0.7 0.7 0.8 0.8 0.7 0.7 0.8 0.8 0.8 1.0 1.1 1.2 1.1 1.0 1.0 1.0 0.8 0.7 0.8 1.0 1.0 1.0 1.1 1.2 1.1 1.0 0.8 0.8 0.8 0.7 0.7 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6
175.0 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3
180.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
