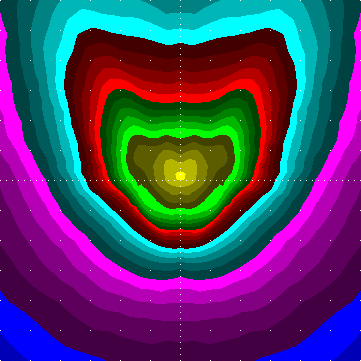

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] AL2-3EU-1C
# [LUMCAT] Alliance
# [DATE] 05/11/2010/
# down given: 99%
# out given: 70.8%
# tilt: 0.0
# [LAMP] 1 ST 100 10000 1950 E40
# Bulbs: 1, 10000 lm each
# Source file: Alliance_AL2-3EU-1C_1_ST_100_10000_1950_E40.ldt
# Luminaire flux = 708 raw, for the given bulb(s) it would be 7076 lm,
# 70.8 % of the bulb flux
# between 75 and 90: 3.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 76.7 cd / 1000 lm , 1.6 % of the luminaire flux
# 90deg and above: max 8.8 cd / 1000 lm , 0.5?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 14?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 55?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 474 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 395 cd / 1000 lm,
# maximum spec. lum. intensity 474 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193 193
2.5 196 195 198 197 199 200 202 201 203 203 205 204 205 205 205 206 205 206 205 206 205 206 205 205 205 204 205 203 203 201 202 200 199 197 198 195 196 193 194 191 192 189 190 187 187 185 185 183 184 182 182 181 181 181 181 181 181 181 182 182 184 183 185 185 187 187 190 189 192 191 194 193
5.0 199 198 203 201 207 206 212 210 215 213 218 215 218 218 218 219 217 218 218 218 217 219 218 218 218 215 218 213 215 210 212 206 207 201 203 198 199 193 195 190 190 186 186 181 182 177 178 173 174 171 171 169 168 168 167 168 168 169 171 171 174 173 178 177 182 181 186 186 190 190 195 193
7.5 194 194 200 200 206 207 214 215 221 221 227 225 228 227 227 228 225 226 228 226 225 228 227 227 228 225 227 221 221 215 214 207 206 200 200 194 194 189 190 184 184 180 178 174 173 167 168 163 163 159 159 157 156 155 153 155 156 157 159 159 163 163 168 167 173 174 178 180 184 184 190 189
10.0 187 188 193 194 200 202 211 212 220 222 229 228 233 229 231 230 228 227 231 227 228 230 231 229 233 228 229 222 220 212 211 202 200 194 193 188 187 182 181 176 175 170 170 164 162 158 156 152 150 147 146 146 144 143 141 143 144 146 146 147 150 152 156 158 162 164 170 170 175 176 181 182
12.5 182 183 188 190 195 198 205 208 215 218 225 225 230 228 230 229 226 225 230 225 226 229 230 228 230 225 225 218 215 208 205 198 195 190 188 183 182 178 176 171 168 163 161 154 152 146 146 142 140 137 136 135 134 133 132 133 134 135 136 137 140 142 146 146 152 154 161 163 168 171 176 178
15.0 179 181 185 187 192 195 200 203 209 213 220 221 228 227 229 228 225 223 230 223 225 228 229 227 228 221 220 213 209 203 200 195 192 187 185 181 179 175 172 167 163 158 154 148 144 139 137 134 133 130 129 128 127 126 125 126 127 128 129 130 133 134 137 139 144 148 154 158 163 167 172 175
17.5 177 178 183 185 189 192 197 199 205 209 217 219 226 226 230 229 226 222 229 222 226 229 230 226 226 219 217 209 205 199 197 192 189 185 183 178 177 172 170 164 160 153 149 142 139 135 132 128 128 125 124 122 122 121 118 121 122 122 124 125 128 128 132 135 139 142 149 153 160 164 170 172
20.0 177 178 182 184 188 190 195 198 204 208 215 220 226 227 230 229 226 220 228 220 226 229 230 227 226 220 215 208 204 198 195 190 188 184 182 178 177 172 169 162 157 149 145 138 135 131 130 126 125 122 121 117 116 115 111 115 116 117 121 122 125 126 130 131 135 138 145 149 157 162 169 172
22.5 177 178 183 184 188 191 196 199 206 211 218 222 226 227 228 226 222 214 220 214 222 226 228 227 226 222 218 211 206 199 196 191 188 184 183 178 177 171 168 159 153 145 140 134 132 128 128 125 123 120 118 114 111 110 107 110 111 114 118 120 123 125 128 128 132 134 140 145 153 159 168 171
25.0 177 179 183 184 189 193 199 204 210 215 223 225 227 227 224 221 215 208 212 208 215 221 224 227 227 225 223 215 210 204 199 193 189 184 183 179 177 171 166 155 148 140 136 131 129 125 125 123 122 117 115 112 108 106 104 106 108 112 115 117 122 123 125 125 129 131 136 140 148 155 166 171
27.5 179 180 185 185 190 195 204 211 217 222 227 230 230 227 222 218 211 205 207 205 211 218 222 227 230 230 227 222 217 211 204 195 190 185 185 180 179 171 165 154 147 138 134 127 125 122 123 122 121 117 114 111 107 105 103 105 107 111 114 117 121 122 123 122 125 127 134 138 147 154 165 171
30.0 180 182 186 186 193 198 209 218 227 232 232 235 237 232 225 219 211 204 205 204 211 219 225 232 237 235 232 232 227 218 209 198 193 186 186 182 180 172 164 153 145 138 133 127 124 119 120 119 122 118 113 109 106 103 101 103 106 109 113 118 122 119 120 119 124 127 133 138 145 153 164 172
32.5 180 182 187 187 194 201 215 223 236 241 242 244 246 242 232 223 211 204 204 204 211 223 232 242 246 244 242 241 236 223 215 201 194 187 187 182 180 171 163 152 143 135 131 126 125 121 118 116 116 114 110 106 104 101 100 101 104 106 110 114 116 116 118 121 125 126 131 135 143 152 163 171
35.0 181 184 189 189 196 202 217 226 242 247 253 254 255 252 240 227 212 204 202 204 212 227 240 252 255 254 253 247 242 226 217 202 196 189 189 184 181 172 164 151 143 133 130 124 122 119 118 114 114 113 109 104 102 98.2 98.0 98.2 102 104 109 113 114 114 118 119 122 124 130 133 143 151 164 172
37.5 181 186 191 192 198 205 219 226 242 250 266 266 262 261 248 232 213 202 200 202 213 232 248 261 262 266 266 250 242 226 219 205 198 192 191 186 181 169 160 145 136 126 121 116 115 112 114 114 112 110 108 102 97.9 94.5 95.5 94.5 97.9 102 108 110 112 114 114 112 115 116 121 126 136 145 160 169
40.0 176 183 190 195 203 210 221 228 240 252 273 275 271 268 257 234 212 199 196 199 212 234 257 268 271 275 273 252 240 228 221 210 203 195 190 183 176 161 148 135 125 118 113 109 107 103 104 106 106 104 104 97.3 92.6 89.8 90.5 89.8 92.6 97.3 104 104 106 106 104 103 107 109 113 118 125 135 148 161
42.5 165 175 190 196 206 217 227 232 242 251 272 277 285 274 260 235 210 193 190 193 210 235 260 274 285 277 272 251 242 232 227 217 206 196 190 175 165 151 140 127 119 111 107 103 101 98.7 97.2 95.9 98.9 98.6 99.2 94.6 86.0 82.2 82.4 82.2 86.0 94.6 99.2 98.6 98.9 95.9 97.2 98.7 101 103 107 111 119 127 140 151
45.0 160 171 184 196 213 225 234 238 246 253 268 281 294 278 259 234 208 189 185 189 208 234 259 278 294 281 268 253 246 238 234 225 213 196 184 171 160 147 135 122 113 106 102 98.0 97.2 95.6 96.1 93.6 93.3 93.3 92.6 89.6 79.2 74.8 77.1 74.8 79.2 89.6 92.6 93.3 93.3 93.6 96.1 95.6 97.2 98.0 102 106 113 122 135 147
47.5 158 169 182 199 225 237 247 249 254 257 269 277 295 279 255 230 203 183 179 183 203 230 255 279 295 277 269 257 254 249 247 237 225 199 182 169 158 144 132 118 109 103 99.1 95.3 95.0 93.9 93.3 90.7 91.7 87.8 85.2 82.8 74.0 70.4 76.3 70.4 74.0 82.8 85.2 87.8 91.7 90.7 93.3 93.9 95.0 95.3 99.1 103 109 118 132 144
50.0 158 168 186 207 237 256 270 269 267 267 271 272 279 268 252 225 195 176 173 176 195 225 252 268 279 272 271 267 267 269 270 256 237 207 186 168 158 140 127 113 105 99.6 97.0 94.1 93.4 93.4 91.8 86.6 84.3 83.3 77.8 74.3 67.4 62.5 68.6 62.5 67.4 74.3 77.8 83.3 84.3 86.6 91.8 93.4 93.4 94.1 97.0 99.6 105 113 127 140
52.5 157 172 195 219 254 282 307 299 290 281 274 265 257 250 250 219 188 171 169 171 188 219 250 250 257 265 274 281 290 299 307 282 254 219 195 172 157 141 133 130 118 118 112 104 103 94.2 93.6 83.2 77.2 71.0 69.7 63.8 60.1 54.0 59.3 54.0 60.1 63.8 69.7 71.0 77.2 83.2 93.6 94.2 103 104 112 118 118 130 133 141
55.0 181 192 213 242 289 318 351 349 335 307 283 256 239 235 238 211 181 168 167 168 181 211 238 235 239 256 283 307 335 349 351 318 289 242 213 192 181 175 156 122 125 111 108 104 95.2 95.2 79.8 79.3 67.6 61.4 58.2 52.1 47.6 43.9 47.3 43.9 47.6 52.1 58.2 61.4 67.6 79.3 79.8 95.2 95.2 104 108 111 125 122 156 175
57.5 184 214 264 284 333 363 405 404 391 344 296 252 225 217 216 200 175 167 166 167 175 200 216 217 225 252 296 344 391 404 405 363 333 284 264 214 184 145 130 108 95.9 77.2 78.8 68.2 67.6 60.7 63.6 53.9 48.3 42.3 38.7 36.9 33.3 29.8 23.9 29.8 33.3 36.9 38.7 42.3 48.3 53.9 63.6 60.7 67.6 68.2 78.8 77.2 95.9 108 130 145
60.0 171 210 262 304 369 404 441 448 445 386 314 249 209 195 191 183 165 164 167 164 165 183 191 195 209 249 314 386 445 448 441 404 369 304 262 210 171 126 104 65.2 50.7 43.8 21.3 22.0 17.3 19.5 18.8 23.1 24.9 26.6 24.8 21.5 16.4 15.8 13.8 15.8 16.4 21.5 24.8 26.6 24.9 23.1 18.8 19.5 17.3 22.0 21.3 43.8 50.7 65.2 104 126
62.5 152 181 216 269 329 376 435 457 474 417 337 249 195 171 161 157 143 143 148 143 143 157 161 171 195 249 337 417 474 457 435 376 329 269 216 181 152 98.2 49.2 29.8 14.7 12.5 10.3 9.1 8.6 8.3 8.4 8.3 9.2 10.0 12.8 12.9 10.8 10.5 9.2 10.5 10.8 12.9 12.8 10.0 9.2 8.3 8.4 8.3 8.6 9.1 10.3 12.5 14.7 29.8 49.2 98.2
65.0 76.5 134 161 198 231 295 356 417 454 424 352 252 180 141 129 124 113 110 117 110 113 124 129 141 180 252 352 424 454 417 356 295 231 198 161 134 76.5 50.3 23.7 13.7 10.2 8.4 7.1 6.3 5.9 5.8 5.7 5.5 5.7 5.9 6.3 6.4 6.4 6.4 5.8 6.4 6.4 6.4 6.3 5.9 5.7 5.5 5.7 5.8 5.9 6.3 7.1 8.4 10.2 13.7 23.7 50.3
67.5 43.7 62.8 75.9 108 153 197 248 319 392 395 354 254 170 123 103 95.2 82.9 80.3 84.3 80.3 82.9 95.2 103 123 170 254 354 395 392 319 248 197 153 108 75.9 62.8 43.7 29.1 15.4 9.7 7.2 5.9 4.8 4.2 4.0 3.9 3.8 3.8 3.8 3.9 3.8 4.0 3.7 3.7 3.1 3.7 3.7 4.0 3.8 3.9 3.8 3.8 3.8 3.9 4.0 4.2 4.8 5.9 7.2 9.7 15.4 29.1
70.0 23.2 31.5 33.5 61.4 89.2 116 152 218 273 312 335 254 167 111 85.4 71.0 63.5 61.8 65.6 61.8 63.5 71.0 85.4 111 167 254 335 312 273 218 152 116 89.2 61.4 33.5 31.5 23.2 16.3 8.9 6.4 4.8 3.9 3.1 2.9 2.8 2.7 2.7 2.5 2.5 2.4 2.4 2.3 2.2 2.0 1.8 2.0 2.2 2.3 2.4 2.4 2.5 2.5 2.7 2.7 2.8 2.9 3.1 3.9 4.8 6.4 8.9 16.3
72.5 10.6 15.9 16.6 21.9 28.9 66.1 98.1 134 176 234 272 238 161 94.7 70.3 58.1 53.0 50.0 55.3 50.0 53.0 58.1 70.3 94.7 161 238 272 234 176 134 98.1 66.1 28.9 21.9 16.6 15.9 10.6 8.6 5.3 4.1 3.3 2.7 2.3 2.1 2.0 2.0 1.9 1.8 1.8 1.8 1.7 1.6 1.5 1.4 1.2 1.4 1.5 1.6 1.7 1.8 1.8 1.8 1.9 2.0 2.0 2.1 2.3 2.7 3.3 4.1 5.3 8.6
75.0 5.2 8.2 9.0 12.0 15.6 24.3 42.5 66.9 98.4 138 185 185 137 82.1 59.0 50.2 44.0 40.8 44.3 40.8 44.0 50.2 59.0 82.1 137 185 185 138 98.4 66.9 42.5 24.3 15.6 12.0 9.0 8.2 5.2 4.3 3.2 2.8 2.3 2.0 1.6 1.6 1.5 1.5 1.4 1.4 1.3 1.3 1.3 1.2 1.2 1.0 1.0 1.0 1.2 1.2 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.6 1.6 2.0 2.3 2.8 3.2 4.3
77.5 3.0 4.0 5.1 7.4 9.5 13.3 18.3 35.2 60.3 77.8 109 129 103 63.0 50.2 42.5 36.3 31.5 33.7 31.5 36.3 42.5 50.2 63.0 103 129 109 77.8 60.3 35.2 18.3 13.3 9.5 7.4 5.1 4.0 3.0 2.5 2.1 1.9 1.6 1.5 1.3 1.3 1.3 1.2 1.2 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.2 1.3 1.3 1.3 1.5 1.6 1.9 2.1 2.5
80.0 2.0 2.5 3.4 4.8 5.8 8.4 10.8 16.6 28.6 45.5 55.3 76.7 69.9 51.2 41.7 36.9 29.6 22.4 22.5 22.4 29.6 36.9 41.7 51.2 69.9 76.7 55.3 45.5 28.6 16.6 10.8 8.4 5.8 4.8 3.4 2.5 2.0 1.8 1.6 1.5 1.4 1.3 1.3 1.2 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.5 1.6 1.8
82.5 1.5 1.8 2.6 3.4 4.1 5.5 7.2 10.4 13.5 23.9 33.5 41.5 51.6 39.0 33.6 27.0 21.9 15.6 13.6 15.6 21.9 27.0 33.6 39.0 51.6 41.5 33.5 23.9 13.5 10.4 7.2 5.5 4.1 3.4 2.6 1.8 1.5 1.5 1.4 1.3 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.3 1.4 1.5
85.0 1.3 1.5 2.0 2.7 3.1 4.0 4.8 7.3 9.1 13.4 20.8 25.3 25.0 22.1 19.4 15.9 13.1 8.8 7.7 8.8 13.1 15.9 19.4 22.1 25.0 25.3 20.8 13.4 9.1 7.3 4.8 4.0 3.1 2.7 2.0 1.5 1.3 1.3 1.2 1.2 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.2 1.2 1.3
87.5 1.1 1.3 1.6 2.1 2.3 2.8 3.5 4.8 6.1 8.4 10.6 14.5 12.9 10.9 9.1 8.3 6.3 4.3 4.2 4.3 6.3 8.3 9.1 10.9 12.9 14.5 10.6 8.4 6.1 4.8 3.5 2.8 2.3 2.1 1.6 1.3 1.1 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.1
90.0 0.9 1.0 1.3 1.5 1.8 2.1 2.5 3.3 4.1 5.3 6.4 8.8 8.3 8.1 6.2 5.6 3.8 2.9 2.7 2.9 3.8 5.6 6.2 8.1 8.3 8.8 6.4 5.3 4.1 3.3 2.5 2.1 1.8 1.5 1.3 1.0 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
92.5 0.9 0.9 1.0 1.1 1.3 1.5 1.7 2.2 2.8 3.5 4.1 5.5 4.8 5.0 4.1 3.5 3.0 1.9 1.9 1.9 3.0 3.5 4.1 5.0 4.8 5.5 4.1 3.5 2.8 2.2 1.7 1.5 1.3 1.1 1.0 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.0 1.1 1.0 1.0 1.0 1.0 1.0 0.9 0.9 1.0 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.1 1.0 1.1 1.0 1.0 1.0 1.0 1.0 1.0 0.9
95.0 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.4 1.6 2.2 2.5 3.2 2.8 2.8 2.2 2.0 1.6 1.3 1.2 1.3 1.6 2.0 2.2 2.8 2.8 3.2 2.5 2.2 1.6 1.4 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.1 1.0 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.0 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 0.9
97.5 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.9 1.0 1.3 1.5 1.9 1.7 1.5 1.3 1.1 1.0 0.9 0.9 0.9 1.0 1.1 1.3 1.5 1.7 1.9 1.5 1.3 1.0 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.0 1.0 0.9 0.9
100.0 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.8 0.8 1.0 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.9 0.9 1.0 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.2 1.3 1.2 1.3 1.3 1.3 1.3 1.2 1.2 1.1 1.0 0.9
102.5 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.5 0.4 0.4 0.4 0.5 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.1 1.0
105.0 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.5 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.2 1.2 1.1
107.5 1.1 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.4 1.4 1.4 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.4 1.4 1.4 1.5 1.5 1.4 1.3 1.3 1.3 1.2
110.0 1.2 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.6 1.5 1.6 1.5 1.6 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.4 1.3 1.3
112.5 1.3 1.2 1.0 0.9 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.9 0.9 0.9 1.0 1.2 1.3 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.3
115.0 1.3 1.2 1.2 1.0 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.2 1.2 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.8 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3
117.5 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.3
120.0 1.3 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.8 1.8 1.8 1.8 1.8 1.9 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
