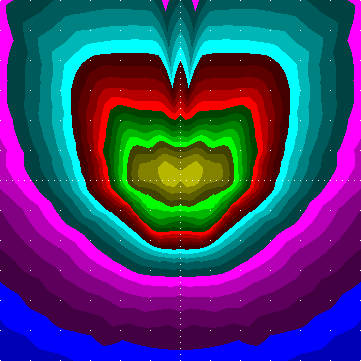

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] AL2-3EU-11B
# [LUMCAT] Alliance
# [DATE] 05/11/2010/
# down given: 100%
# out given: 65.8%
# tilt: 0.0
# [LAMP] 1 ST 150 17500 1950 E40
# Bulbs: 1, 17500 lm each
# Source file: Alliance_AL2-3EU-11B_1_ST_150_17500_1950_E40.ldt
# Luminaire flux = 658 raw, for the given bulb(s) it would be 11514 lm,
# 65.8 % of the bulb flux
# between 75 and 90: 2.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 32.8 cd / 1000 lm , 1.2 % of the luminaire flux
# 90deg and above: max 4.6 cd / 1000 lm , 0.5?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 12?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 45?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 345 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 258 cd / 1000 lm,
# maximum spec. lum. intensity 450 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130 130
2.5 132 132 133 133 133 134 134 135 135 135 135 136 136 136 136 137 137 137 135 137 137 137 136 136 136 136 135 135 135 135 134 134 133 133 133 132 132 131 131 131 130 130 129 129 128 128 127 127 127 126 126 126 125 125 126 125 125 126 126 126 127 127 127 128 128 129 129 130 130 131 131 131
5.0 135 136 137 138 138 140 141 142 141 143 142 143 143 143 142 143 142 143 141 143 142 143 142 143 143 143 142 143 141 142 141 140 138 138 137 136 135 134 134 132 131 131 131 129 129 128 127 127 126 125 125 124 124 123 124 123 124 124 125 125 126 127 127 128 129 129 131 131 131 132 134 134
7.5 140 140 142 143 145 146 147 149 148 150 149 149 148 149 147 148 147 147 145 147 147 148 147 149 148 149 149 150 148 149 147 146 145 143 142 140 140 138 138 136 134 134 133 132 132 130 129 128 127 126 125 124 123 122 123 122 123 124 125 126 127 128 129 130 132 132 133 134 134 136 138 138
10.0 147 148 149 152 152 155 154 156 154 156 154 155 154 153 152 151 149 150 147 150 149 151 152 153 154 155 154 156 154 156 154 155 152 152 149 148 147 145 144 142 139 139 138 136 135 133 132 130 128 127 125 124 122 121 121 121 122 124 125 127 128 130 132 133 135 136 138 139 139 142 144 145
12.5 159 161 161 164 165 167 163 164 161 162 160 160 158 157 155 154 152 151 148 151 152 154 155 157 158 160 160 162 161 164 163 167 165 164 161 161 159 157 155 154 149 150 146 143 140 137 133 130 128 125 123 121 119 118 118 118 119 121 123 125 128 130 133 137 140 143 146 150 149 154 155 157
15.0 176 177 180 180 180 179 176 176 172 170 166 165 162 160 158 156 152 152 148 152 152 156 158 160 162 165 166 170 172 176 176 179 180 180 180 177 176 173 171 167 160 160 155 152 145 142 135 129 125 122 119 118 115 114 113 114 115 118 119 122 125 129 135 142 145 152 155 160 160 167 171 173
17.5 191 193 197 195 196 191 191 188 185 183 176 171 166 163 160 157 152 151 148 151 152 157 160 163 166 171 176 183 185 188 191 191 196 195 197 193 191 187 184 179 172 168 160 155 148 143 134 129 122 119 115 113 111 110 109 110 111 113 115 119 122 129 134 143 148 155 160 168 172 179 184 187
20.0 198 202 204 203 204 201 201 198 196 193 186 178 170 164 160 157 153 150 148 150 153 157 160 164 170 178 186 193 196 198 201 201 204 203 204 202 198 196 190 185 176 168 159 152 145 140 132 127 120 115 111 109 108 106 105 106 108 109 111 115 120 127 132 140 145 152 159 168 176 185 190 196
22.5 214 217 217 213 210 207 208 207 205 201 194 184 174 166 162 159 155 152 150 152 155 159 162 166 174 184 194 201 205 207 208 207 210 213 217 217 214 210 197 189 177 165 154 146 139 134 129 123 117 112 107 105 103 102 101 102 103 105 107 112 117 123 129 134 139 146 154 165 177 189 197 210
25.0 239 246 248 241 234 222 219 214 214 209 200 190 180 172 167 164 159 155 153 155 159 164 167 172 180 190 200 209 214 214 219 222 234 241 248 246 239 227 210 194 177 163 150 141 134 129 124 120 113 107 103 101 98.9 98.3 96.2 98.3 98.9 101 103 107 113 120 124 129 134 141 150 163 177 194 210 227
27.5 240 255 263 267 262 253 245 227 224 219 211 199 189 180 173 168 162 157 156 157 162 168 173 180 189 199 211 219 224 227 245 253 262 267 263 255 240 225 208 190 174 157 145 136 129 125 120 117 112 105 100 98.0 95.1 94.6 92.7 94.6 95.1 98.0 100 105 112 117 120 125 129 136 145 157 174 190 208 225
30.0 224 239 253 263 263 268 264 254 245 230 224 211 198 189 179 171 163 158 156 158 163 171 179 189 198 211 224 230 245 254 264 268 263 263 253 239 224 211 194 177 164 149 138 130 124 120 118 115 110 104 97.2 94.1 90.9 90.2 87.3 90.2 90.9 94.1 97.2 104 110 115 118 120 124 130 138 149 164 177 194 211
32.5 214 227 241 256 261 264 262 270 268 249 238 222 205 195 184 174 164 156 155 156 164 174 184 195 205 222 238 249 268 270 262 264 261 256 241 227 214 200 185 169 154 140 130 123 118 115 113 110 107 102 94.5 89.9 86.5 85.4 83.1 85.4 86.5 89.9 94.5 102 107 110 113 115 118 123 130 140 154 169 185 200
35.0 209 221 234 251 263 269 266 271 272 273 257 230 212 200 189 176 164 154 152 154 164 176 189 200 212 230 257 273 272 271 266 269 263 251 234 221 209 197 180 163 147 133 123 116 111 110 108 106 103 99.6 92.8 85.8 82.6 81.2 78.7 81.2 82.6 85.8 92.8 99.6 103 106 108 110 111 116 123 133 147 163 180 197
37.5 208 220 229 244 265 277 278 280 278 283 276 244 221 203 191 175 161 149 148 149 161 175 191 203 221 244 276 283 278 280 278 277 265 244 229 220 208 195 176 157 141 126 117 110 105 103 102 101 99.1 95.9 91.8 84.9 79.1 76.1 73.9 76.1 79.1 84.9 91.8 95.9 99.1 101 102 103 105 110 117 126 141 157 176 195
40.0 210 223 230 241 260 283 287 287 283 284 278 264 230 205 189 171 156 143 142 143 156 171 189 205 230 264 278 284 283 287 287 283 260 241 230 223 210 195 173 152 133 119 109 103 97.2 95.0 91.6 92.4 92.8 90.3 88.6 81.6 74.8 70.8 68.4 70.8 74.8 81.6 88.6 90.3 92.8 92.4 91.6 95.0 97.2 103 109 119 133 152 173 195
42.5 222 236 239 248 259 284 295 284 279 280 271 270 236 206 185 163 147 134 134 134 147 163 185 206 236 270 271 280 279 284 295 284 259 248 239 236 222 206 177 151 131 116 108 100 93.6 89.3 85.1 85.0 83.9 85.3 81.5 76.3 68.9 64.8 62.8 64.8 68.9 76.3 81.5 85.3 83.9 85.0 85.1 89.3 93.6 100 108 116 131 151 177 206
45.0 249 266 265 266 268 288 299 284 267 266 261 256 238 206 179 154 135 125 124 125 135 154 179 206 238 256 261 266 267 284 299 288 268 266 265 266 249 223 186 152 130 114 106 101 95.1 88.3 82.4 80.1 78.4 76.6 74.1 70.9 64.2 60.3 59.2 60.3 64.2 70.9 74.1 76.6 78.4 80.1 82.4 88.3 95.1 101 106 114 130 152 186 223
47.5 284 309 313 310 296 300 303 289 254 246 244 241 230 204 175 142 119 111 112 111 119 142 175 204 230 241 244 246 254 289 303 300 296 310 313 309 284 245 197 156 130 114 106 101 94.5 89.5 82.8 78.4 75.1 70.6 65.8 63.8 58.1 54.5 54.2 54.5 58.1 63.8 65.8 70.6 75.1 78.4 82.8 89.5 94.5 101 106 114 130 156 197 245
50.0 318 360 372 372 343 328 311 293 251 223 224 227 216 200 167 127 102 98.1 99.2 98.1 102 127 167 200 216 227 224 223 251 293 311 328 343 372 372 360 318 265 204 156 129 113 108 100 95.6 87.0 80.7 76.9 71.9 65.8 59.8 55.3 52.3 47.7 45.7 47.7 52.3 55.3 59.8 65.8 71.9 76.9 80.7 87.0 95.6 100 108 113 129 156 204 265
52.5 349 396 422 425 410 375 326 294 248 208 202 212 201 193 152 112 86.3 86.4 88.9 86.4 86.3 112 152 193 201 212 202 208 248 294 326 375 410 425 422 396 349 287 212 168 139 139 110 115 95.6 91.8 82.6 77.2 70.2 64.1 57.3 50.3 44.0 41.0 39.7 41.0 44.0 50.3 57.3 64.1 70.2 77.2 82.6 91.8 95.6 115 110 139 139 168 212 287
55.0 385 415 438 443 450 417 354 302 247 198 181 191 189 184 142 98.2 72.3 74.1 78.6 74.1 72.3 98.2 142 184 189 191 181 198 247 302 354 417 450 443 438 415 385 305 241 163 144 114 119 101 107 97.8 92.7 85.6 74.9 67.4 54.4 47.4 40.7 35.0 35.1 35.0 40.7 47.4 54.4 67.4 74.9 85.6 92.7 97.8 107 101 119 114 144 163 241 305
57.5 372 391 427 412 438 428 388 320 253 196 166 167 173 161 126 86.3 62.0 62.7 69.8 62.7 62.0 86.3 126 161 173 167 166 196 253 320 388 428 438 412 427 391 372 297 202 144 113 91.1 76.0 75.2 67.3 65.3 68.2 64.6 65.9 64.0 53.3 41.3 33.5 32.8 37.7 32.8 33.5 41.3 53.3 64.0 65.9 64.6 68.2 65.3 67.3 75.2 76.0 91.1 113 144 202 297
60.0 289 309 337 339 381 386 386 341 272 204 155 147 151 137 111 76.9 53.4 51.5 61.9 51.5 53.4 76.9 111 137 151 147 155 204 272 341 386 386 381 339 337 309 289 241 180 120 99.0 69.5 71.5 54.5 55.7 52.6 51.9 47.8 44.8 42.6 35.2 29.3 22.5 19.0 18.8 19.0 22.5 29.3 35.2 42.6 44.8 47.8 51.9 52.6 55.7 54.5 71.5 69.5 99.0 120 180 241
62.5 218 222 219 245 284 313 345 339 297 224 155 133 124 111 91.8 68.1 46.3 41.5 53.6 41.5 46.3 68.1 91.8 111 124 133 155 224 297 339 345 313 284 245 219 222 218 175 106 66.9 45.5 21.7 13.9 16.2 11.6 14.2 15.9 20.4 29.1 29.0 23.2 16.8 13.3 13.3 10.4 13.3 13.3 16.8 23.2 29.0 29.1 20.4 15.9 14.2 11.6 16.2 13.9 21.7 45.5 66.9 106 175
65.0 93.1 128 152 159 182 232 261 290 302 241 162 121 101 89.0 72.5 60.6 41.1 31.1 45.3 31.1 41.1 60.6 72.5 89.0 101 121 162 241 302 290 261 232 182 159 152 128 93.1 79.2 50.2 26.9 18.6 10.9 8.8 7.4 6.8 6.3 6.2 6.6 7.7 9.6 11.4 9.2 7.4 7.0 6.2 7.0 7.4 9.2 11.4 9.6 7.7 6.6 6.2 6.3 6.8 7.4 8.8 10.9 18.6 26.9 50.2 79.2
67.5 42.7 59.1 65.3 95.0 116 142 170 226 258 238 169 114 87.4 73.2 60.5 53.8 37.4 22.7 38.5 22.7 37.4 53.8 60.5 73.2 87.4 114 169 238 258 226 170 142 116 95.0 65.3 59.1 42.7 40.7 26.6 15.9 11.6 7.4 5.9 5.1 4.4 4.2 4.0 4.2 4.3 4.3 4.4 4.3 4.2 4.0 3.7 4.0 4.2 4.3 4.4 4.3 4.3 4.2 4.0 4.2 4.4 5.1 5.9 7.4 11.6 15.9 26.6 40.7
70.0 23.0 27.5 30.6 44.8 80.8 91.6 101 137 184 204 163 107 75.0 63.3 54.1 48.8 34.9 15.4 31.8 15.4 34.9 48.8 54.1 63.3 75.0 107 163 204 184 137 101 91.6 80.8 44.8 30.6 27.5 23.0 20.3 13.4 9.1 6.9 4.6 3.8 3.2 2.8 2.8 2.6 2.5 2.5 2.5 2.3 2.2 1.9 2.0 1.8 2.0 1.9 2.2 2.3 2.5 2.5 2.5 2.6 2.8 2.8 3.2 3.8 4.6 6.9 9.1 13.4 20.3
72.5 11.8 15.2 17.1 22.8 30.0 51.1 68.5 83.3 111 146 134 93.2 65.4 55.8 48.6 43.4 33.2 10.0 26.9 10.0 33.2 43.4 48.6 55.8 65.4 93.2 134 146 111 83.3 68.5 51.1 30.0 22.8 17.1 15.2 11.8 10.4 7.2 5.4 4.6 3.0 2.5 2.2 2.0 1.8 1.8 1.7 1.7 1.7 1.5 1.4 1.3 1.3 1.2 1.3 1.3 1.4 1.5 1.7 1.7 1.7 1.8 1.8 2.0 2.2 2.5 3.0 4.6 5.4 7.2 10.4
75.0 6.9 8.6 10.4 14.2 18.0 24.5 34.2 56.3 64.6 90.0 99.8 76.2 57.9 48.0 41.3 36.2 30.4 7.8 23.8 7.8 30.4 36.2 41.3 48.0 57.9 76.2 99.8 90.0 64.6 56.3 34.2 24.5 18.0 14.2 10.4 8.6 6.9 5.8 4.1 3.3 2.8 2.1 1.7 1.6 1.5 1.4 1.3 1.2 1.2 1.1 1.1 1.0 0.9 0.9 0.8 0.9 0.9 1.0 1.1 1.1 1.2 1.2 1.3 1.4 1.5 1.6 1.7 2.1 2.8 3.3 4.1 5.8
77.5 4.6 5.8 6.5 8.8 11.7 15.7 18.7 28.3 41.8 49.0 61.7 57.7 45.8 36.9 32.0 27.9 24.4 7.0 19.3 7.0 24.4 27.9 32.0 36.9 45.8 57.7 61.7 49.0 41.8 28.3 18.7 15.7 11.7 8.8 6.5 5.8 4.6 3.7 2.6 2.3 2.0 1.6 1.3 1.2 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.7 0.6 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.6 2.0 2.3 2.6 3.7
80.0 3.5 4.3 4.4 6.0 7.5 10.2 11.9 15.5 20.3 32.4 31.1 32.8 27.2 24.0 20.5 18.0 16.0 5.9 12.3 5.9 16.0 18.0 20.5 24.0 27.2 32.8 31.1 32.4 20.3 15.5 11.9 10.2 7.5 6.0 4.4 4.3 3.5 2.6 1.9 1.7 1.5 1.3 1.2 1.0 1.0 0.9 0.9 0.8 0.7 0.8 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.7 0.8 0.9 0.9 1.0 1.0 1.2 1.3 1.5 1.7 1.9 2.6
82.5 2.8 3.3 3.3 4.2 4.9 6.6 8.1 10.0 11.3 20.5 18.7 19.1 16.5 14.9 13.4 11.6 10.6 4.7 7.4 4.7 10.6 11.6 13.4 14.9 16.5 19.1 18.7 20.5 11.3 10.0 8.1 6.6 4.9 4.2 3.3 3.3 2.8 2.0 1.6 1.4 1.3 1.1 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 1.0 1.1 1.3 1.4 1.6 2.0
85.0 2.2 2.6 2.6 3.1 3.8 4.8 5.3 6.6 7.6 10.6 12.6 11.2 10.6 9.0 8.6 7.8 6.9 3.6 5.1 3.6 6.9 7.8 8.6 9.0 10.6 11.2 12.6 10.6 7.6 6.6 5.3 4.8 3.8 3.1 2.6 2.6 2.2 1.8 1.3 1.2 1.2 1.0 0.9 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.9 0.9 1.0 1.2 1.2 1.3 1.8
87.5 1.7 2.0 2.0 2.3 2.7 3.3 3.8 4.4 4.9 6.5 7.6 6.0 6.4 5.4 4.7 4.3 4.2 2.3 3.3 2.3 4.2 4.3 4.7 5.4 6.4 6.0 7.6 6.5 4.9 4.4 3.8 3.3 2.7 2.3 2.0 2.0 1.7 1.5 1.2 1.1 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.1 1.2 1.5
90.0 1.5 1.5 1.5 1.7 2.0 2.3 2.5 2.9 3.3 4.2 4.6 3.7 3.2 2.8 2.4 2.3 2.2 1.6 2.1 1.6 2.2 2.3 2.4 2.8 3.2 3.7 4.6 4.2 3.3 2.9 2.5 2.3 2.0 1.7 1.5 1.5 1.5 1.3 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.3
92.5 1.2 1.2 1.1 1.3 1.4 1.5 1.7 2.0 2.2 2.7 2.9 2.3 1.9 1.8 1.6 1.5 1.5 1.1 1.3 1.1 1.5 1.5 1.6 1.8 1.9 2.3 2.9 2.7 2.2 2.0 1.7 1.5 1.4 1.3 1.1 1.2 1.2 1.1 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.1
95.0 0.9 1.0 0.9 1.0 1.0 1.0 1.1 1.3 1.4 1.7 1.8 1.5 1.3 1.2 1.1 1.0 1.0 0.8 0.9 0.8 1.0 1.0 1.1 1.2 1.3 1.5 1.8 1.7 1.4 1.3 1.1 1.0 1.0 1.0 0.9 1.0 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0
97.5 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.7 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.0 1.0 1.0 1.0 1.0
100.0 1.0 0.9 0.8 0.8 0.7 0.8 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.4 0.5 0.4 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.1 1.2 1.2 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.2 1.1 1.2 1.1 1.0
102.5 1.0 0.9 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 0.9 1.0 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2
105.0 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.1 1.0 1.0 1.0 1.0 1.0 0.9 1.0 1.0 1.0 0.9 1.0 1.0 1.0 1.0 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.2
107.5 1.2 1.2 1.1 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.1 1.1 1.1 1.0 1.1 1.0 1.1 1.1 1.1 1.0 1.1 1.0 1.1 1.1 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
110.0 1.3 1.3 1.2 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.2 1.3 1.3 1.3 1.4 1.4 1.3 1.4 1.3 1.3 1.3 1.3 1.2 1.2 1.1 1.2 1.2 1.1 1.2 1.1 1.2 1.1 1.2 1.1 1.2 1.2 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.4 1.3 1.4 1.4 1.3
112.5 1.3 1.3 1.2 1.2 1.1 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5
115.0 1.4 1.3 1.3 1.2 1.2 1.1 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5
117.5 1.5 1.4 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.4 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5
120.0 1.5 1.4 1.4 1.3 1.2 1.2 1.1 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.5 1.4 1.4 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5
