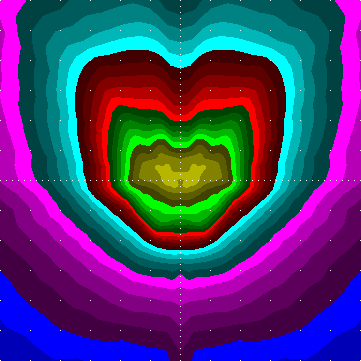

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] AL2-3EU-11B
# [LUMCAT] Alliance
# [DATE] 05/11/2010/
# down given: 100%
# out given: 64.1%
# tilt: 0.0
# [LAMP] 1 MT 100 8800 2800 E40
# Bulbs: 1, 8800 lm each
# Source file: Alliance_AL2-3EU-11B_1_MT_100_8800_2800_E40.ldt
# Luminaire flux = 641 raw, for the given bulb(s) it would be 5637 lm,
# 64.1 % of the bulb flux
# between 75 and 90: 1.9 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 28.0 cd / 1000 lm , 1.1 % of the luminaire flux
# 90deg and above: max 3.6 cd / 1000 lm , 0.5?% of the luminaire flux
# CutOff Type: CIE_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 12?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 43?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 303 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 228 cd / 1000 lm,
# maximum spec. lum. intensity 409 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122 122
2.5 124 124 124 124 124 124 125 125 125 126 125 126 126 126 126 126 126 127 126 127 126 126 126 126 126 126 125 126 125 125 125 124 124 124 124 124 124 124 123 123 123 123 123 122 122 122 121 121 121 120 120 120 120 120 120 120 120 120 120 120 121 121 121 122 122 122 123 123 123 123 123 124
5.0 127 127 127 127 128 129 129 130 131 131 131 132 132 132 133 133 134 134 133 134 134 133 133 132 132 132 131 131 131 130 129 129 128 127 127 127 127 127 127 127 127 127 127 126 126 126 125 124 123 123 122 122 121 121 120 121 121 122 122 123 123 124 125 126 126 126 127 127 127 127 127 127
7.5 130 130 130 131 131 133 134 135 136 138 139 140 140 142 142 143 143 144 144 144 143 143 142 142 140 140 139 138 136 135 134 133 131 131 130 130 130 132 131 133 133 134 133 135 133 133 132 131 130 128 126 125 124 123 122 123 124 125 126 128 130 131 132 133 133 135 133 134 133 133 131 132
10.0 136 137 134 136 135 137 138 139 142 143 145 147 149 151 150 152 151 152 156 152 151 152 150 151 149 147 145 143 142 139 138 137 135 136 134 137 136 140 139 143 142 146 145 147 145 145 141 140 137 134 130 127 125 124 123 124 125 127 130 134 137 140 141 145 145 147 145 146 142 143 139 140
12.5 147 149 145 146 144 146 148 150 151 151 151 152 152 153 152 152 151 150 157 150 151 152 152 153 152 152 151 151 151 150 148 146 144 146 145 149 147 152 152 156 157 160 161 160 158 156 150 146 140 135 130 125 123 121 121 121 123 125 130 135 140 146 150 156 158 160 161 160 157 156 152 152
15.0 167 167 161 162 161 163 163 165 164 162 157 153 149 147 147 145 144 143 149 143 144 145 147 147 149 153 157 162 164 165 163 163 161 162 161 167 167 170 171 170 171 169 170 166 165 160 154 145 137 131 124 120 116 115 114 115 116 120 124 131 137 145 154 160 165 166 170 169 171 170 171 170
17.5 186 184 178 179 177 181 180 180 174 168 159 151 145 141 139 138 138 137 141 137 138 138 139 141 145 151 159 168 174 180 180 181 177 179 178 184 186 185 185 180 177 171 167 162 158 152 147 138 130 123 117 114 112 110 109 110 112 114 117 123 130 138 147 152 158 162 167 171 177 180 185 185
20.0 198 199 193 196 193 200 192 192 177 170 157 149 141 137 136 135 136 135 137 135 136 135 136 137 141 149 157 170 177 192 192 200 193 196 193 199 198 197 191 186 176 168 159 154 146 140 132 126 121 115 112 109 107 104 104 104 107 109 112 115 121 126 132 140 146 154 159 168 176 186 191 197
22.5 216 219 217 217 215 218 204 202 183 176 159 151 143 139 138 138 139 138 138 138 139 138 138 139 143 151 159 176 183 202 204 218 215 217 217 219 216 211 200 189 174 164 153 146 135 130 123 117 112 108 106 104 102 99.8 100 99.8 102 104 106 108 112 117 123 130 135 146 153 164 174 189 200 211
25.0 232 235 241 239 243 240 227 217 193 186 168 161 153 149 146 147 146 145 143 145 146 147 146 149 153 161 168 186 193 217 227 240 243 239 241 235 232 220 206 189 173 161 149 140 129 123 116 112 107 103 102 99.7 97.7 95.9 96.0 95.9 97.7 99.7 102 103 107 112 116 123 129 140 149 161 173 189 206 220
27.5 229 234 242 245 256 255 251 234 214 199 185 175 167 163 159 158 155 152 151 152 155 158 159 163 167 175 185 199 214 234 251 255 256 245 242 234 229 216 200 184 168 156 144 135 124 118 112 109 105 100 98.3 96.8 94.5 92.9 93.0 92.9 94.5 96.8 98.3 100 105 109 112 118 124 135 144 156 168 184 200 216
30.0 216 225 229 240 251 258 255 247 239 217 201 194 184 180 175 169 162 157 155 157 162 169 175 180 184 194 201 217 239 247 255 258 251 240 229 225 216 207 190 176 160 149 137 127 118 112 108 107 103 98.4 94.9 93.1 90.9 89.1 88.0 89.1 90.9 93.1 94.9 98.4 103 107 108 112 118 127 137 149 160 176 190 207
32.5 208 217 220 234 248 258 253 249 252 237 219 210 198 193 185 177 166 158 156 158 166 177 185 193 198 210 219 237 252 249 253 258 248 234 220 217 208 199 181 169 153 141 128 118 110 106 103 101 99.4 95.8 91.6 88.2 86.3 83.8 83.0 83.8 86.3 88.2 91.6 95.8 99.4 101 103 106 110 118 128 141 153 169 181 199
35.0 206 215 218 232 249 266 263 253 246 247 238 223 208 203 186 181 167 157 154 157 167 181 186 203 208 223 238 247 246 253 263 266 249 232 218 215 206 194 175 161 146 134 120 112 104 102 99.1 97.8 95.6 92.6 88.1 82.8 80.8 79.1 79.0 79.1 80.8 82.8 88.1 92.6 95.6 97.8 99.1 102 104 112 120 134 146 161 175 194
37.5 206 215 216 233 257 284 285 269 247 249 247 230 211 209 186 177 164 150 147 150 164 177 186 209 211 230 247 249 247 269 285 284 257 233 216 215 206 193 169 154 139 127 114 107 100 96.6 94.4 94.6 91.5 88.7 85.3 80.4 77.5 74.4 74.0 74.4 77.5 80.4 85.3 88.7 91.5 94.6 94.4 96.6 100 107 114 127 139 154 169 193
40.0 212 223 220 234 267 302 313 289 257 250 246 235 214 209 183 166 154 139 137 139 154 166 183 209 214 235 246 250 257 289 313 302 267 234 220 223 212 194 168 148 130 119 108 102 93.6 90.2 87.4 87.1 85.8 84.1 83.1 78.2 74.9 72.1 72.0 72.1 74.9 78.2 83.1 84.1 85.8 87.1 87.4 90.2 93.6 102 108 119 130 148 168 194
42.5 229 241 237 248 272 321 339 309 268 254 246 245 219 197 171 148 136 126 124 126 136 148 171 197 219 245 246 254 268 309 339 321 272 248 237 241 229 203 169 144 126 115 107 101 92.1 87.6 82.3 80.5 79.3 80.8 79.9 78.6 74.3 71.3 71.0 71.3 74.3 78.6 79.9 80.8 79.3 80.5 82.3 87.6 92.1 101 107 115 126 144 169 203
45.0 252 270 269 277 292 333 348 318 272 257 258 255 222 183 155 132 121 113 114 113 121 132 155 183 222 255 258 257 272 318 348 333 292 277 269 270 252 216 174 145 124 115 107 103 95.2 88.5 81.1 79.1 76.0 76.3 77.3 77.9 75.1 71.4 71.0 71.4 75.1 77.9 77.3 76.3 76.0 79.1 81.1 88.5 95.2 103 107 115 124 145 174 216
47.5 279 309 317 322 328 350 349 318 266 257 275 268 228 183 151 123 108 103 104 103 108 123 151 183 228 268 275 257 266 318 349 350 328 322 317 309 279 230 180 145 125 114 107 102 94.8 88.8 82.7 78.9 76.9 76.0 75.4 75.7 72.5 69.2 69.0 69.2 72.5 75.7 75.4 76.0 76.9 78.9 82.7 88.8 94.8 102 107 114 125 145 180 230
50.0 302 346 368 375 362 365 351 312 252 251 286 277 246 197 159 120 98.6 93.1 93.8 93.1 98.6 120 159 197 246 277 286 251 252 312 351 365 362 375 368 346 302 240 181 143 122 112 108 101 97.6 87.9 80.9 78.9 78.4 78.1 75.3 70.3 63.8 58.5 58.0 58.5 63.8 70.3 75.3 78.1 78.4 78.9 80.9 87.9 97.6 101 108 112 122 143 181 240
52.5 332 390 402 407 399 388 358 304 246 237 263 271 257 221 169 115 86.9 83.3 84.4 83.3 86.9 115 169 221 257 271 263 237 246 304 358 388 399 407 402 390 332 257 197 166 140 135 115 113 97.8 94.3 84.6 81.3 81.6 83.9 77.5 66.4 61.2 52.7 53.0 52.7 61.2 66.4 77.5 83.9 81.6 81.3 84.6 94.3 97.8 113 115 135 140 166 197 257
55.0 377 409 398 398 407 407 375 312 252 224 216 240 243 222 171 108 73.8 72.8 75.1 72.8 73.8 108 171 222 243 240 216 224 252 312 375 407 407 398 398 409 377 275 204 144 131 108 110 95.3 94.1 88.9 86.8 88.4 92.4 87.8 76.3 63.5 50.0 52.0 52.0 52.0 50.0 63.5 76.3 87.8 92.4 88.4 86.8 88.9 94.1 95.3 110 108 131 144 204 275
57.5 347 359 361 356 370 391 382 329 271 221 188 202 206 191 156 91.8 63.8 61.4 64.5 61.4 63.8 91.8 156 191 206 202 188 221 271 329 382 391 370 356 361 359 347 274 177 134 98.9 86.5 79.2 72.1 66.4 62.0 59.8 65.7 67.3 74.9 58.8 45.0 40.3 33.8 33.0 33.8 40.3 45.0 58.8 74.9 67.3 65.7 59.8 62.0 66.4 72.1 79.2 86.5 98.9 134 177 274
60.0 264 266 252 268 308 340 349 330 296 236 177 169 164 152 129 78.2 52.2 50.3 53.8 50.3 52.2 78.2 129 152 164 169 177 236 296 330 349 340 308 268 252 266 264 221 159 92.6 69.8 55.4 45.8 43.9 41.9 38.7 44.0 45.2 53.0 48.7 37.5 29.3 26.0 27.6 27.0 27.6 26.0 29.3 37.5 48.7 53.0 45.2 44.0 38.7 41.9 43.9 45.8 55.4 69.8 92.6 159 221
62.5 178 167 167 194 217 255 289 303 300 254 177 149 128 119 103 65.1 42.5 36.9 38.8 36.9 42.5 65.1 103 119 128 149 177 254 300 303 289 255 217 194 167 167 178 151 86.4 54.2 26.2 21.3 13.6 13.0 11.1 12.8 11.9 16.3 21.6 27.8 23.7 19.3 16.0 16.4 16.0 16.4 16.0 19.3 23.7 27.8 21.6 16.3 11.9 12.8 11.1 13.0 13.6 21.3 26.2 54.2 86.4 151
65.0 81.4 103 106 121 142 180 215 247 280 261 185 133 103 94.2 77.5 56.3 37.3 29.4 29.0 29.4 37.3 56.3 77.5 94.2 103 133 185 261 280 247 215 180 142 121 106 103 81.4 74.1 46.2 26.2 14.1 10.8 8.6 7.8 6.8 6.4 6.3 7.1 7.8 8.4 9.2 8.2 8.2 8.1 7.0 8.1 8.2 8.2 9.2 8.4 7.8 7.1 6.3 6.4 6.8 7.8 8.6 10.8 14.1 26.2 46.2 74.1
67.5 42.3 45.0 47.0 68.8 93.3 120 133 179 220 228 186 125 91.0 74.5 63.5 53.0 34.8 25.5 24.4 25.5 34.8 53.0 63.5 74.5 91.0 125 186 228 220 179 133 120 93.3 68.8 47.0 45.0 42.3 39.3 24.5 15.1 9.2 7.5 5.6 4.9 4.3 4.0 3.9 4.0 4.3 4.4 4.6 4.5 4.4 4.3 4.0 4.3 4.4 4.5 4.6 4.4 4.3 4.0 3.9 4.0 4.3 4.9 5.6 7.5 9.2 15.1 24.5 39.3
70.0 22.1 24.1 24.5 37.6 50.1 66.6 87.4 113 151 184 173 112 80.4 67.6 58.3 50.2 35.3 24.3 22.5 24.3 35.3 50.2 58.3 67.6 80.4 112 173 184 151 113 87.4 66.6 50.1 37.6 24.5 24.1 22.1 19.3 12.4 8.0 5.3 4.4 3.5 3.1 2.7 2.7 2.4 2.6 2.7 2.5 2.4 2.3 2.2 2.2 2.0 2.2 2.2 2.3 2.4 2.5 2.7 2.6 2.4 2.7 2.7 3.1 3.5 4.4 5.3 8.0 12.4 19.3
72.5 10.9 13.7 14.2 18.7 23.7 39.5 51.7 72.6 87.6 124 133 93.6 72.1 61.0 53.7 48.9 35.4 23.0 20.8 23.0 35.4 48.9 53.7 61.0 72.1 93.6 133 124 87.6 72.6 51.7 39.5 23.7 18.7 14.2 13.7 10.9 9.5 6.1 4.4 3.3 2.8 2.2 2.0 1.8 1.8 1.7 1.6 1.7 1.7 1.6 1.5 1.3 1.5 1.0 1.5 1.3 1.5 1.6 1.7 1.7 1.6 1.7 1.8 1.8 2.0 2.2 2.8 3.3 4.4 6.1 9.5
75.0 6.4 7.4 8.4 11.2 14.5 20.5 25.8 40.4 54.5 72.2 92.9 76.9 63.0 51.2 46.6 42.8 33.3 20.9 18.2 20.9 33.3 42.8 46.6 51.2 63.0 76.9 92.9 72.2 54.5 40.4 25.8 20.5 14.5 11.2 8.4 7.4 6.4 4.8 3.3 2.8 2.2 1.9 1.5 1.5 1.3 1.3 1.2 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.2 1.3 1.3 1.5 1.5 1.9 2.2 2.8 3.3 4.8
77.5 4.1 4.8 5.0 6.9 9.0 11.7 14.1 22.3 33.8 43.5 53.5 59.3 44.5 40.7 35.8 31.4 25.0 15.5 13.6 15.5 25.0 31.4 35.8 40.7 44.5 59.3 53.5 43.5 33.8 22.3 14.1 11.7 9.0 6.9 5.0 4.8 4.1 2.8 2.2 2.0 1.5 1.4 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 1.0 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.4 1.5 2.0 2.2 2.8
80.0 3.1 3.5 3.6 4.4 5.7 7.5 8.8 12.1 15.5 24.9 28.0 24.2 23.5 21.4 21.2 20.1 16.8 10.0 8.3 10.0 16.8 20.1 21.2 21.4 23.5 24.2 28.0 24.9 15.5 12.1 8.8 7.5 5.7 4.4 3.6 3.5 3.1 2.0 1.5 1.5 1.3 1.1 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 1.0 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.1 1.3 1.5 1.5 2.0
82.5 2.4 2.5 2.6 3.3 3.7 5.0 5.7 7.3 9.1 15.7 16.9 15.1 17.5 15.8 15.3 16.1 12.9 7.3 5.8 7.3 12.9 16.1 15.3 15.8 17.5 15.1 16.9 15.7 9.1 7.3 5.7 5.0 3.7 3.3 2.6 2.5 2.4 1.6 1.3 1.2 1.1 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.6 1.0 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.1 1.2 1.3 1.6
85.0 2.0 2.0 2.0 2.4 2.8 3.3 3.8 4.8 5.9 9.0 10.3 10.8 12.4 10.1 8.8 9.8 7.5 4.6 4.0 4.6 7.5 9.8 8.8 10.1 12.4 10.8 10.3 9.0 5.9 4.8 3.8 3.3 2.8 2.4 2.0 2.0 2.0 1.3 1.1 1.0 1.0 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.6 1.0 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.1 1.3
87.5 1.6 1.5 1.5 1.8 2.0 2.4 2.6 3.3 3.8 5.0 6.2 5.1 4.8 3.9 3.7 3.7 3.4 2.7 2.7 2.7 3.4 3.7 3.7 3.9 4.8 5.1 6.2 5.0 3.8 3.3 2.6 2.4 2.0 1.8 1.5 1.5 1.6 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.6 1.0 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1
90.0 1.4 1.3 1.1 1.3 1.4 1.6 1.8 2.2 2.6 3.3 3.6 3.0 2.5 2.3 2.3 2.2 2.0 1.8 1.7 1.8 2.0 2.2 2.3 2.3 2.5 3.0 3.6 3.3 2.6 2.2 1.8 1.6 1.4 1.3 1.1 1.3 1.4 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.6 0.6 0.6 0.6 1.0 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0
92.5 1.1 1.0 1.0 1.0 1.0 1.2 1.3 1.5 1.7 2.0 2.3 1.8 1.6 1.5 1.5 1.5 1.4 1.2 1.2 1.2 1.4 1.5 1.5 1.5 1.6 1.8 2.3 2.0 1.7 1.5 1.3 1.2 1.0 1.0 1.0 1.0 1.1 1.0 0.9 0.9 0.9 1.0 0.9 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 1.0 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9 0.9 0.9 0.9 1.0 0.9 0.9 0.9 1.0
95.0 0.9 0.9 0.9 0.9 0.8 0.9 0.9 1.0 1.1 1.4 1.3 1.2 1.1 1.0 1.0 1.0 0.9 0.9 0.8 0.9 0.9 1.0 1.0 1.0 1.1 1.2 1.3 1.4 1.1 1.0 0.9 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.7 0.8 0.7 1.0 0.7 0.8 0.7 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 0.9 0.9
97.5 0.9 0.9 0.8 0.8 0.8 0.7 0.7 0.8 0.8 0.9 0.9 0.8 0.8 0.7 0.7 0.7 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.8 0.9 0.9 0.8 0.8 0.7 0.7 0.8 0.8 0.8 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 1.0 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.0 1.0 1.0 0.9
100.0 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.0 1.1 1.1 1.1 1.2 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 1.0 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.2 1.1 1.1 1.1 1.0 1.0
102.5 1.0 0.9 0.9 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.7 0.8 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 1.0 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.1 1.0
105.0 1.1 1.0 0.9 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.1 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.2 1.2
107.5 1.1 1.0 1.0 0.9 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 0.9 1.0 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.1 1.0 1.1 1.0 1.1 1.0 1.1 1.0 1.1 1.0 1.1 1.0 1.1 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2
110.0 1.2 1.2 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.2 1.3 1.3 1.3 1.4 1.4 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.0 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.4 1.4 1.3 1.3 1.3
112.5 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.5 0.5 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.4 1.5 1.4 1.4 1.4 1.3 1.3 1.3 1.2 1.2 1.2 1.3 1.2 1.3 1.3 1.0 1.3 1.3 1.2 1.3 1.2 1.2 1.2 1.3 1.3 1.3 1.4 1.4 1.4 1.5 1.4 1.4 1.3
115.0 1.3 1.3 1.2 1.2 1.1 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.1 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.0 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.4 1.4
117.5 1.4 1.3 1.3 1.3 1.2 1.1 1.0 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.0 1.1 1.2 1.3 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.0 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.4
120.0 1.4 1.4 1.3 1.3 1.2 1.2 1.1 1.0 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.3 1.4 1.3 1.5 1.5 1.5 1.0 1.5 1.5 1.5 1.3 1.4 1.3 1.3 1.3 1.4 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5
