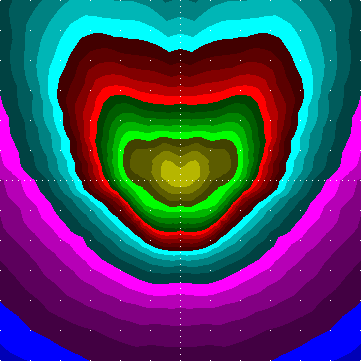

| In the left half of the left plot, specific illuminance by a continuous row of luminaires spaced 5 heights is shown (right half is for a single luminaire). | The right plot is for a single luminaire, unrotated. |
Values below the scale are illuminance / 1 lx. This is for (unrealistic) “unit” case that luminaires would have lamps producing 1 klm only, would be point-like and just 1 m over the terrain.
# [MANUFAC] INDAL
# [TEST]
# [LUMINAIRE] AL2-3EU-11B#
# [LUMCAT] Alliance
# [DATE] 14/03/2011/
# down given: 99%
# out given: 71.3%
# tilt: 0.0
# [LAMP] 1 ST 250 33200 1950 E40
# Bulbs: 1, 33200 lm each
# Source file: Alliance_AL2-3EU-11B-_1_ST_250_33200_1950_E40.ldt
# Luminaire flux = 713 raw, for the given bulb(s) it would be 23682 lm,
# 71.3 % of the bulb flux
# between 75 and 90: 3.0 % of the luminaire flux
# - this part causes just GLARE in case of road lighting and similar purposes
# 80deg and above: max 66.9 cd / 1000 lm , 1.7 % of the luminaire flux
# 90deg and above: max 8.9 cd / 1000 lm , 0.6?% of the luminaire flux
# CutOff Type: IES_CutOff
# Increase of Sky Luminance due to light going
# from the luminaire difectly above horizon, as compared with the
# luminance produced by the light dispersed from the ground: 15?%
# Increase of Sky Luminance in Distant Places by light below 15.0 degrees
# due to light going from the luminaire directly above horizon: 58?%
# (for the zenith luminance such an angle suits places up to 19 km distance)
# The increases concern the following situation:
# Albedo = 0.10
# Zenith Extinction = 0.30 mag (i.e., direct light remaining 76 %)
# Indicatrix type =0 (0: acc. to P.Cinzano, 4..6: CIE sky types)
# (the downward-scattered part of lambertian uplight is 0.1108 then)
# 62.5 deg to <67.5 deg: max 467 cd / 1000 lm,
# 67.5 deg to < 76 deg: max 371 cd / 1000 lm,
# maximum spec. lum. intensity 467 cd / 1000 lm
# The following table gives luminous intensities which would be produced
# using a hypothetic bulb giving a luminous flux of 1000 lm (i.e., cd/klm):
# H: 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0 100.0 105.0 110.0 115.0 120.0 125.0 130.0 135.0 140.0 145.0 150.0 155.0 160.0 165.0 170.0 175.0 180.0 185.0 190.0 195.0 200.0 205.0 210.0 215.0 220.0 225.0 230.0 235.0 240.0 245.0 250.0 255.0 260.0 265.0 270.0 275.0 280.0 285.0 290.0 295.0 300.0 305.0 310.0 315.0 320.0 325.0 330.0 335.0 340.0 345.0 350.0 355.0
#V:
0.0 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170
2.5 170 171 172 171 172 171 172 173 171 172 171 171 173 171 173 172 171 172 173 172 171 172 173 171 173 171 171 172 171 173 172 171 172 171 172 171 170 171 169 170 168 169 167 169 166 167 168 166 166 166 163 166 165 165 164 165 165 166 163 166 166 166 168 167 166 169 167 169 168 170 169 171
5.0 171 175 173 176 174 175 175 177 174 174 174 171 173 172 173 173 171 171 172 171 171 173 173 172 173 171 174 174 174 177 175 175 174 176 173 175 171 174 170 172 167 171 165 167 163 165 162 161 161 160 161 160 159 161 157 161 159 160 161 160 161 161 162 165 163 167 165 171 167 172 170 174
7.5 173 177 176 180 178 180 179 181 176 177 175 174 174 173 172 172 170 170 171 170 170 172 172 173 174 174 175 177 176 181 179 180 178 180 176 177 173 178 172 175 168 171 165 167 159 162 157 157 154 152 151 152 150 152 148 152 150 152 151 152 154 157 157 162 159 167 165 171 168 175 172 178
10.0 173 176 178 183 180 183 180 184 178 179 176 175 175 172 173 173 169 170 169 170 169 173 173 172 175 175 176 179 178 184 180 183 180 183 178 176 173 179 172 175 167 169 163 165 157 159 152 152 148 146 145 143 141 143 137 143 141 143 145 146 148 152 152 159 157 165 163 169 167 175 172 179
12.5 174 182 180 186 183 187 185 187 180 183 179 178 176 176 174 174 169 171 169 171 169 174 174 176 176 178 179 183 180 187 185 187 183 186 180 182 174 177 170 172 164 165 159 161 152 152 146 144 140 137 136 134 132 134 129 134 132 134 136 137 140 144 146 152 152 161 159 165 164 172 170 177
15.0 174 185 183 193 188 194 191 194 187 186 183 181 179 177 175 174 169 171 169 171 169 174 175 177 179 181 183 186 187 194 191 194 188 193 183 185 174 177 169 170 161 161 156 156 147 146 140 138 134 130 128 126 125 126 120 126 125 126 128 130 134 138 140 146 147 156 156 161 161 170 169 177
17.5 176 186 188 200 197 204 203 204 199 195 191 186 184 180 175 174 170 171 169 171 170 174 175 180 184 186 191 195 199 204 203 204 197 200 188 186 176 175 168 167 159 154 152 151 142 140 134 130 128 123 122 120 120 119 115 119 120 120 122 123 128 130 134 140 142 151 152 154 159 167 168 175
20.0 174 184 190 201 204 213 212 218 210 203 201 192 188 183 176 175 169 170 167 170 169 175 176 183 188 192 201 203 210 218 212 213 204 201 190 184 174 172 165 163 152 151 148 145 137 135 129 125 123 119 117 116 113 112 107 112 113 116 117 119 123 125 129 135 137 145 148 151 152 163 165 172
22.5 172 184 190 201 206 217 220 227 221 214 211 201 194 187 179 175 169 169 165 169 169 175 179 187 194 201 211 214 221 227 220 217 206 201 190 184 172 171 162 160 151 147 142 140 133 130 125 122 119 114 113 112 108 107 103 107 108 112 113 114 119 122 125 130 133 140 142 147 151 160 162 171
25.0 174 187 192 205 208 219 227 232 227 223 218 209 201 192 183 176 169 169 161 169 169 176 183 192 201 209 218 223 227 232 227 219 208 205 192 187 174 172 160 158 148 143 137 136 128 126 121 119 117 112 112 108 104 103 98.9 103 104 108 112 112 117 119 121 126 128 136 137 143 148 158 160 172
27.5 178 195 200 215 215 226 234 239 235 231 227 219 209 198 188 180 171 170 163 170 171 180 188 198 209 219 227 231 235 239 234 226 215 215 200 195 178 173 159 155 146 140 134 132 125 124 119 117 116 110 108 105 100 99.2 94.9 99.2 100 105 108 110 116 117 119 124 125 132 134 140 146 155 159 173
30.0 178 197 206 222 224 236 240 249 246 240 236 227 218 207 195 184 173 172 166 172 173 184 195 207 218 227 236 240 246 249 240 236 224 222 206 197 178 172 160 155 145 139 132 130 122 121 117 116 114 109 105 102 97.3 95.2 90.7 95.2 97.3 102 105 109 114 116 117 121 122 130 132 139 145 155 160 172
32.5 179 197 208 224 227 239 247 259 255 253 248 237 229 220 204 190 177 174 168 174 177 190 204 220 229 237 248 253 255 259 247 239 227 224 208 197 179 171 159 154 144 139 130 128 120 119 114 113 110 105 101 98.8 92.3 90.9 86.2 90.9 92.3 98.8 101 105 110 113 114 119 120 128 130 139 144 154 159 171
35.0 176 195 207 223 227 235 244 268 262 267 263 250 239 229 211 196 181 175 169 175 181 196 211 229 239 250 263 267 262 268 244 235 227 223 207 195 176 170 156 152 141 137 127 126 116 115 111 111 107 103 98.3 91.9 87.1 85.9 80.4 85.9 87.1 91.9 98.3 103 107 111 111 115 116 126 127 137 141 152 156 170
37.5 172 193 205 221 224 231 242 265 266 279 277 262 249 238 218 200 185 174 170 174 185 200 218 238 249 262 277 279 266 265 242 231 224 221 205 193 172 166 154 149 136 129 118 116 107 105 101 104 102 98.9 94.8 88.9 83.8 81.3 76.3 81.3 83.8 88.9 94.8 98.9 102 104 101 105 107 116 118 129 136 149 154 166
40.0 171 192 203 220 222 230 239 261 270 284 284 278 263 245 224 205 188 177 169 177 188 205 224 245 263 278 284 284 270 261 239 230 222 220 203 192 171 161 144 138 126 118 110 107 101 96.4 92.9 96.3 94.8 93.3 89.4 83.3 78.6 75.8 71.8 75.8 78.6 83.3 89.4 93.3 94.8 96.3 92.9 96.4 101 107 110 118 126 138 144 161
42.5 164 192 205 221 222 232 240 263 271 283 287 290 275 252 231 209 190 177 166 177 190 209 231 252 275 290 287 283 271 263 240 232 222 221 205 192 164 154 137 132 120 114 105 103 95.7 92.2 87.8 87.3 87.1 85.6 83.4 77.8 72.3 69.6 64.7 69.6 72.3 77.8 83.4 85.6 87.1 87.3 87.8 92.2 95.7 103 105 114 120 132 137 154
45.0 160 193 210 228 229 237 242 268 273 280 284 289 283 258 235 210 190 177 161 177 190 210 235 258 283 289 284 280 273 268 242 237 229 228 210 193 160 149 136 129 118 110 102 101 93.9 90.2 85.2 83.3 80.5 78.1 77.3 72.1 67.2 64.7 61.2 64.7 67.2 72.1 77.3 78.1 80.5 83.3 85.2 90.2 93.9 101 102 110 118 129 136 149
47.5 163 194 217 245 245 250 253 277 279 281 278 282 280 263 235 209 185 174 164 174 185 209 235 263 280 282 278 281 279 277 253 250 245 245 217 194 163 148 134 126 114 106 99.5 99.7 94.3 90.4 82.4 78.7 75.4 72.1 70.9 66.1 61.6 61.0 56.8 61.0 61.6 66.1 70.9 72.1 75.4 78.7 82.4 90.4 94.3 99.7 99.5 106 114 126 134 148
50.0 165 206 231 263 272 281 272 291 289 283 269 266 268 264 231 202 177 169 161 169 177 202 231 264 268 266 269 283 289 291 272 281 272 263 231 206 165 150 133 124 114 105 102 98.2 94.8 89.9 81.7 74.4 70.1 66.9 64.7 59.7 55.2 56.1 51.6 56.1 55.2 59.7 64.7 66.9 70.1 74.4 81.7 89.9 94.8 98.2 102 105 114 124 133 150
52.5 172 224 253 298 310 317 308 315 294 287 265 253 253 259 228 193 170 164 158 164 170 193 228 259 253 253 265 287 294 315 308 317 310 298 253 224 172 154 139 130 118 113 102 104 98.3 90.4 81.9 73.0 65.9 61.8 59.3 55.5 49.7 50.1 42.8 50.1 49.7 55.5 59.3 61.8 65.9 73.0 81.9 90.4 98.3 104 102 113 118 130 139 154
55.0 191 247 280 341 353 373 356 351 309 297 259 242 238 249 214 184 160 156 151 156 160 184 214 249 238 242 259 297 309 351 356 373 353 341 280 247 191 179 148 151 134 122 111 110 92.1 94.1 80.1 74.3 66.3 60.9 55.7 52.7 44.7 46.1 37.3 46.1 44.7 52.7 55.7 60.9 66.3 74.3 80.1 94.1 92.1 110 111 122 134 151 148 179
57.5 236 289 329 383 398 426 419 394 336 306 252 229 221 221 196 169 149 146 143 146 149 169 196 221 221 229 252 306 336 394 419 426 398 383 329 289 236 184 150 120 105 90.3 85.8 75.9 75.7 63.5 60.7 54.0 52.4 50.2 45.0 41.1 37.8 38.0 31.1 38.0 37.8 41.1 45.0 50.2 52.4 54.0 60.7 63.5 75.7 75.9 85.8 90.3 105 120 150 184
60.0 207 291 364 406 435 459 455 439 371 314 252 216 205 200 168 149 133 133 134 133 133 149 168 200 205 216 252 314 371 439 455 459 435 406 364 291 207 157 125 103 80.9 72.3 55.0 57.2 41.6 44.9 37.2 39.3 37.5 35.2 32.5 28.0 25.8 23.7 17.1 23.7 25.8 28.0 32.5 35.2 37.5 39.3 37.2 44.9 41.6 57.2 55.0 72.3 80.9 103 125 157
62.5 192 243 297 370 433 455 467 461 399 331 253 205 181 168 140 120 111 115 110 115 111 120 140 168 181 205 253 331 399 461 467 455 433 370 297 243 192 155 93.0 62.2 37.8 22.5 23.3 14.6 20.6 13.4 21.6 17.3 20.1 21.7 20.2 19.3 15.4 14.3 12.7 14.3 15.4 19.3 20.2 21.7 20.1 17.3 21.6 13.4 20.6 14.6 23.3 22.5 37.8 62.2 93.0 155
65.0 129 207 225 285 322 383 435 433 405 337 261 202 156 141 114 98.7 88.2 86.9 88.8 86.9 88.2 98.7 114 141 156 202 261 337 405 433 435 383 322 285 225 207 129 82.4 41.0 19.5 13.5 10.4 9.3 8.4 7.3 6.9 7.4 7.4 9.3 9.3 10.3 10.6 10.3 8.6 9.4 8.6 10.3 10.6 10.3 9.3 9.3 7.4 7.4 6.9 7.3 8.4 9.3 10.4 13.5 19.5 41.0 82.4
67.5 62.2 94.4 139 200 207 280 313 359 371 334 264 197 142 114 92.9 79.9 71.8 71.2 72.5 71.2 71.8 79.9 92.9 114 142 197 264 334 371 359 313 280 207 200 139 94.4 62.2 42.3 22.3 12.3 8.9 7.6 5.9 5.6 5.1 4.6 4.6 4.4 4.8 4.8 5.1 4.9 4.5 4.6 4.0 4.6 4.5 4.9 5.1 4.8 4.8 4.4 4.6 4.6 5.1 5.6 5.9 7.6 8.9 12.3 22.3 42.3
70.0 34.0 46.6 56.3 93.4 136 182 207 268 304 292 256 195 129 95.6 77.6 66.9 59.4 55.6 56.5 55.6 59.4 66.9 77.6 95.6 129 195 256 292 304 268 207 182 136 93.4 56.3 46.6 34.0 24.1 13.3 7.8 5.8 4.9 4.3 3.8 3.4 3.3 3.3 3.0 3.0 2.8 3.0 2.8 2.8 2.6 2.3 2.6 2.8 2.8 3.0 2.8 3.0 3.0 3.3 3.3 3.4 3.8 4.3 4.9 5.8 7.8 13.3 24.1
72.5 14.9 22.8 25.4 42.6 59.0 110 126 170 206 230 228 178 117 83.4 66.3 57.7 48.0 43.2 45.1 43.2 48.0 57.7 66.3 83.4 117 178 228 230 206 170 126 110 59.0 42.6 25.4 22.8 14.9 13.3 6.6 5.0 3.7 3.4 2.8 2.7 2.3 2.3 2.3 2.2 2.0 2.0 2.0 1.9 1.8 1.6 1.6 1.6 1.8 1.9 2.0 2.0 2.0 2.2 2.3 2.3 2.3 2.7 2.8 3.4 3.7 5.0 6.6 13.3
75.0 8.3 12.1 13.5 21.0 23.7 42.1 71.0 99.2 118 159 166 134 101 70.2 56.5 48.8 40.7 33.3 36.2 33.3 40.7 48.8 56.5 70.2 101 134 166 159 118 99.2 71.0 42.1 23.7 21.0 13.5 12.1 8.3 6.4 4.1 3.3 2.8 2.5 1.9 2.0 1.8 1.8 1.6 1.5 1.5 1.5 1.5 1.5 1.4 1.3 1.2 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.6 1.8 1.8 2.0 1.9 2.5 2.8 3.3 4.1 6.4
77.5 4.4 6.8 7.9 11.0 13.8 22.8 31.9 60.6 69.5 80.3 108 100 82.8 56.8 46.8 40.5 33.5 25.5 27.8 25.5 33.5 40.5 46.8 56.8 82.8 100 108 80.3 69.5 60.6 31.9 22.8 13.8 11.0 7.9 6.8 4.4 3.6 2.7 2.5 2.1 1.9 1.6 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.6 1.9 2.1 2.5 2.7 3.6
80.0 2.8 4.5 5.1 6.9 8.1 12.0 15.1 26.3 40.6 46.5 57.3 66.9 61.5 47.0 39.1 34.5 27.1 18.6 20.6 18.6 27.1 34.5 39.1 47.0 61.5 66.9 57.3 46.5 40.6 26.3 15.1 12.0 8.1 6.9 5.1 4.5 2.8 2.6 2.0 2.0 1.7 1.5 1.4 1.4 1.3 1.3 1.2 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.2 1.3 1.3 1.4 1.4 1.5 1.7 2.0 2.0 2.6
82.5 2.2 3.4 4.0 5.2 5.6 7.6 9.6 13.6 17.5 29.8 33.8 37.5 42.4 33.3 27.6 24.3 21.4 12.1 14.1 12.1 21.4 24.3 27.6 33.3 42.4 37.5 33.8 29.8 17.5 13.6 9.6 7.6 5.6 5.2 4.0 3.4 2.2 2.0 1.7 1.6 1.5 1.4 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 2.0
85.0 1.8 2.7 3.0 3.9 4.1 5.5 6.3 8.9 10.4 15.4 22.6 21.0 22.0 17.0 16.1 13.2 12.5 7.3 7.7 7.3 12.5 13.2 16.1 17.0 22.0 21.0 22.6 15.4 10.4 8.9 6.3 5.5 4.1 3.9 3.0 2.7 1.8 1.6 1.5 1.5 1.3 1.2 1.2 1.2 1.1 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.8 0.8 0.8 0.8 0.8 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.1 1.2 1.2 1.2 1.3 1.5 1.5 1.6
87.5 1.5 2.1 2.3 2.8 2.9 3.8 4.4 6.1 6.8 8.6 11.6 14.0 12.0 10.6 9.1 8.1 7.4 4.6 4.6 4.6 7.4 8.1 9.1 10.6 12.0 14.0 11.6 8.6 6.8 6.1 4.4 3.8 2.9 2.8 2.3 2.1 1.5 1.5 1.3 1.3 1.2 1.2 1.2 1.2 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.8 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.2 1.3 1.3 1.5
90.0 1.3 1.6 1.7 2.2 2.2 2.7 3.1 4.0 4.8 5.8 7.1 8.9 8.4 7.6 5.6 5.4 4.9 3.0 3.7 3.0 4.9 5.4 5.6 7.6 8.4 8.9 7.1 5.8 4.8 4.0 3.1 2.7 2.2 2.2 1.7 1.6 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.0 1.1 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.0 1.2 1.1 1.2 1.2 1.2 1.2 1.2
92.5 1.1 1.3 1.3 1.5 1.5 1.8 1.9 2.8 3.0 3.8 4.6 5.6 4.8 4.6 3.5 3.2 2.9 2.0 2.2 2.0 2.9 3.2 3.5 4.6 4.8 5.6 4.6 3.8 3.0 2.8 1.9 1.8 1.5 1.5 1.3 1.3 1.1 1.1 1.1 1.2 1.1 1.1 1.1 1.2 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.1 1.1 1.1 1.2 1.1 1.1
95.0 1.0 1.1 1.0 1.1 1.0 1.3 1.4 1.7 1.9 2.4 2.8 3.3 2.8 2.8 2.1 1.8 1.5 1.3 1.4 1.3 1.5 1.8 2.1 2.8 2.8 3.3 2.8 2.4 1.9 1.7 1.4 1.3 1.0 1.1 1.0 1.1 1.0 1.1 1.0 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.1 1.1 1.0 1.0 1.0 1.0 0.9 0.9 1.0 0.9 0.9 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.0 1.1
97.5 0.9 1.0 0.9 0.9 0.8 0.9 0.9 1.1 1.1 1.4 1.6 2.0 1.6 1.5 1.2 1.1 1.0 0.9 0.9 0.9 1.0 1.1 1.2 1.5 1.6 2.0 1.6 1.4 1.1 1.1 0.9 0.9 0.8 0.9 0.9 1.0 0.9 1.0 1.1 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.1 1.1 1.1 1.1 1.0 1.0 1.1 1.0 1.0 1.1 1.1 1.1 1.1 1.2 1.2 1.2 1.2 1.3 1.2 1.2 1.2 1.2 1.1 1.0
100.0 0.9 0.9 0.8 0.8 0.6 0.7 0.6 0.7 0.7 0.8 0.8 0.9 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.7 0.6 0.8 0.8 0.9 0.9 1.0 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.0
102.5 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.5 0.5 0.4 0.6 0.5 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.5 0.6 0.4 0.5 0.5 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.2 1.2 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.2 1.3 1.3 1.2 1.2 1.2 1.3 1.3 1.2 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.3 1.2 1.2
105.0 1.1 1.1 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.1 1.1 1.3 1.3 1.4 1.3 1.4 1.4 1.5 1.5 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.5 1.5 1.4 1.4 1.3 1.4 1.3 1.3
107.5 1.2 1.2 1.0 1.0 0.9 0.8 0.8 0.7 0.6 0.6 0.6 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.6 0.6 0.6 0.7 0.8 0.8 0.9 1.0 1.0 1.2 1.2 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.3 1.4 1.3 1.4 1.3 1.3 1.3 1.4 1.3 1.3 1.3 1.4 1.3 1.4 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.3 1.3
110.0 1.3 1.2 1.1 1.0 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.5 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.9 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.4
112.5 1.3 1.3 1.2 1.1 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.4 0.5 0.4 0.5 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
115.0 1.4 1.3 1.2 1.2 1.1 1.0 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.1 1.2 1.2 1.3 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.7 1.6 1.7 1.7 1.6 1.6 1.6 1.7 1.7 1.6 1.7 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
117.5 1.4 1.4 1.3 1.2 1.2 1.0 0.9 0.9 0.9 0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.9 0.9 0.9 1.0 1.2 1.2 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
120.0 1.4 1.4 1.3 1.3 1.2 1.2 1.0 0.9 0.9 0.9 0.8 0.7 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.8 0.9 0.9 0.9 1.0 1.2 1.2 1.3 1.3 1.4 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.6 1.7 1.7 1.8 1.7 1.8 1.8 1.8 1.7 1.8 1.8 1.8 1.7 1.8 1.7 1.7 1.6 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
